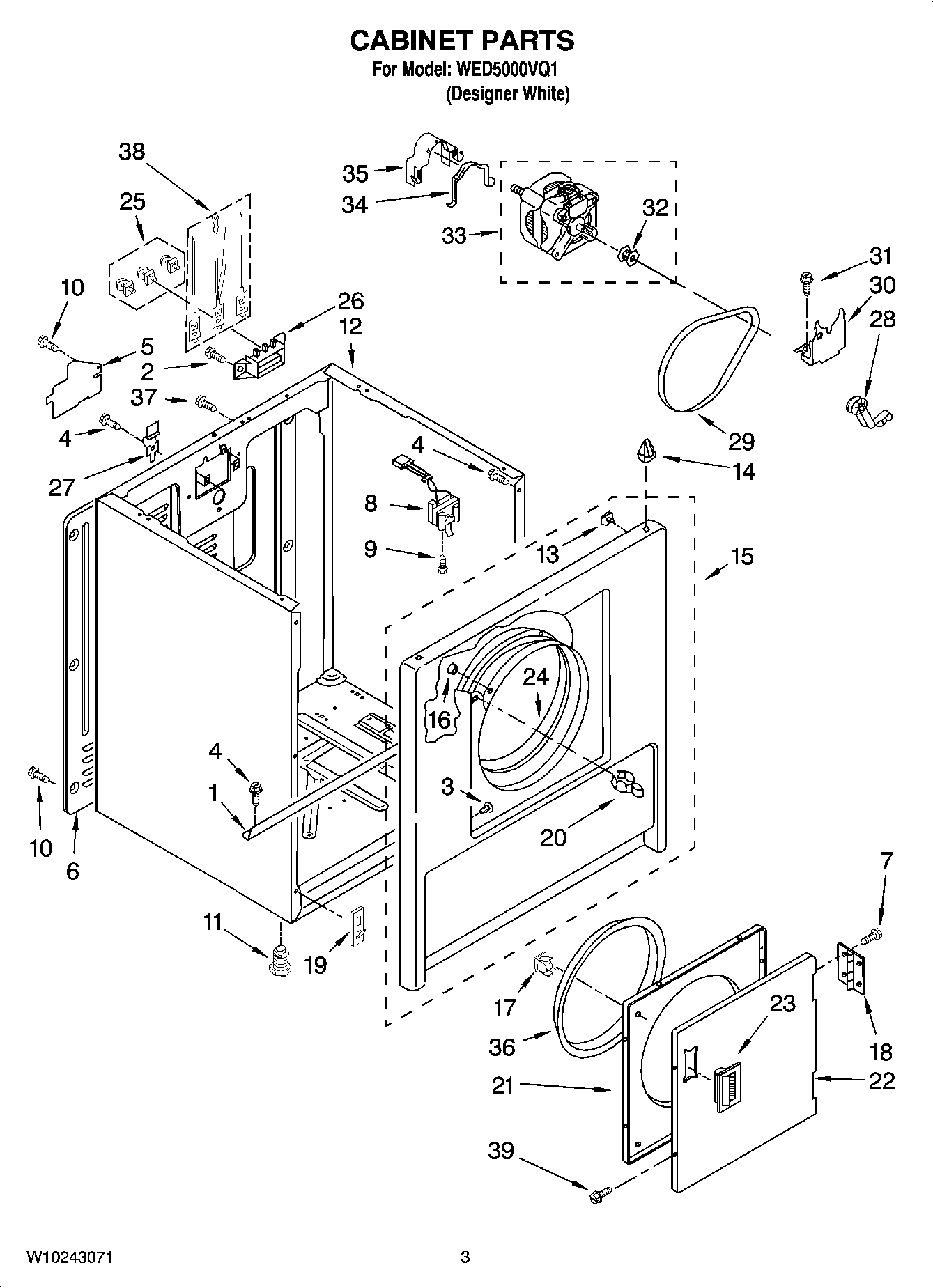

WED5000VQ1 02 – CABINET PARTS

Products

Position	Product
1	Bracket, Cabinet
2	WP308685 Whirlpool Microwave Screw
3	WP3404413 Whirlpool Plug
4	SCREW
5	W11539855 Whirlpool Refrigerator Pump
6	280040 Whirlpool Rear Panel
8	WP3406105 Whirlpool Door Switch
9	WP3395530 Whirlpool Screw
10	WP693995 Whirlpool Screw
11	49621 Whirlpool Leveling Feet
12	8533643 Whirlpool Dryer White Cabinet
13	WP98234 Whirlpool Nut
14	WP18776 Whirlpool Lock
15	Panel Front Assembly
16	279220 Whirlpool Clip
17	279570 Whirlpool Dryer Door Latch Kit
18	WPW10362431 Whirlpool Hinge Assembly
19	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
21	Door, Rear
22	WP3403361 Whirlpool Door
23	WPW10549553 Whirlpool Dryer Door Handle
24	279264 Whirlpool Bearing and Seal Kit
25	279393 Whirlpool Terminal Block Screw and Nut Kit
26	WP3397659 Whirlpool Terminal Block
27	WP8066217 Whirlpool Hinge
28	WP691366 Whirlpool Dryer Idler Pulley Assembly
29	341241 Whirlpool Dryer Drum Belt
30	WP348780 Whirlpool Base
31	3400500 Whirlpool Screw
32	WP8066184 Whirlpool Dryer Motor Pulley
33	279827 Whirlpool Dryer Drive Motor
34	CLAMP
35	WP3404162 Whirlpool Clamp
36	SEAL-DOOR DRYER
37	W10850756 Whirlpool Screw
38	279318 Whirlpool Terminal
39	WP488627 Whirlpool Refrigerator Screw
