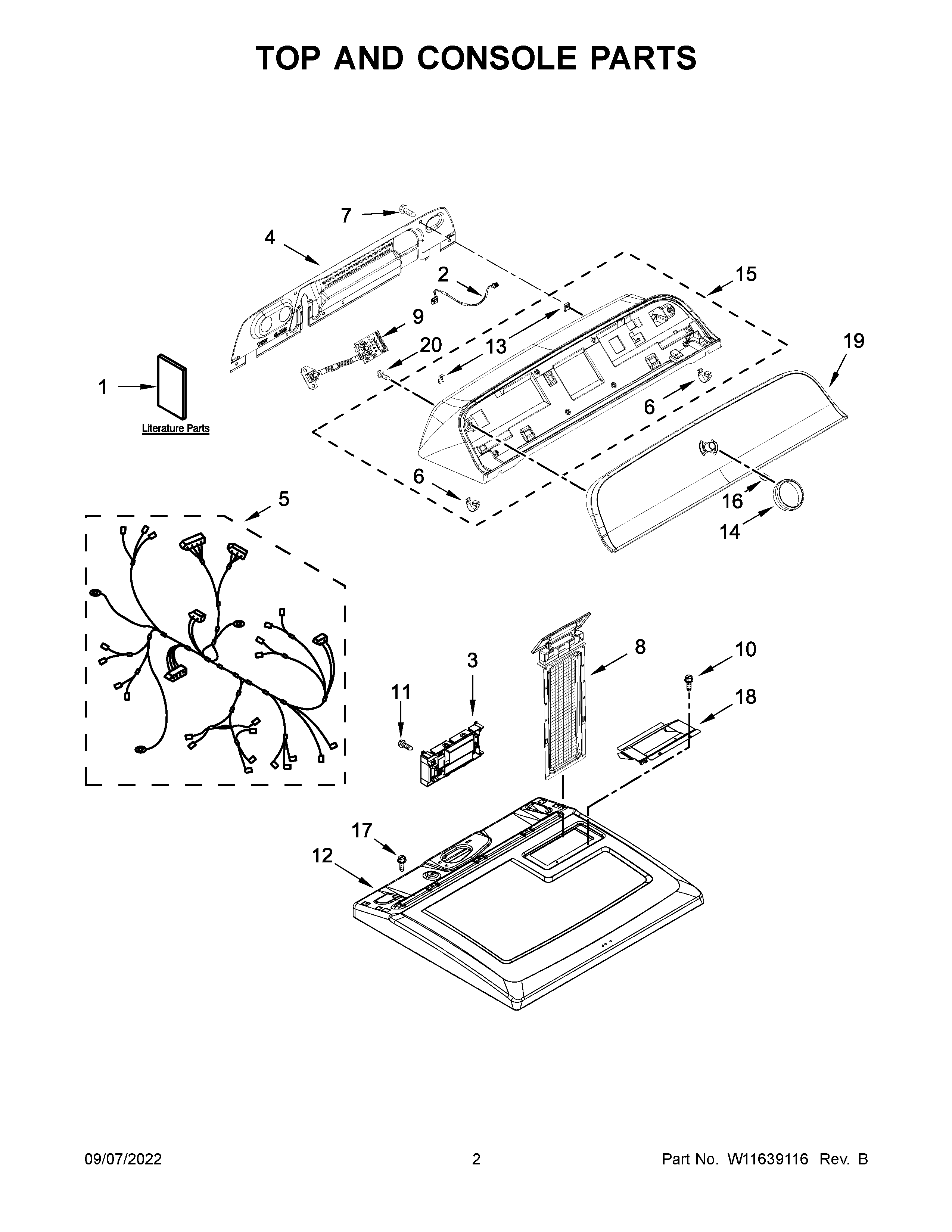

WED500CMW0 02 – TOP AND CONSOLE PARTSadmin2025-04-26T13:10:14+00:00WED500CMW0 02 – TOP AND CONSOLE PARTS ProductsPositionProduct1BQUICK START GUIDE1OWNERS MANUAL1ATECH SHEET2W11551859 Whirlpool Wire Harness3W11728028-includeCORE Whirlpool W11728028 Dishwasher Electronic Control Board with Core4W10775189 Whirlpool Rear Panel5W11568017 Whirlpool Wire Harness6WP8312709 Whirlpool Endcap Clip7SCREW8SCREEN9W11627521-includeCORE Whirlpool W11627521 Washer Electronic Control Board + Core10W11693756 Whirlpool Screw Assembly11WP90767 Whirlpool Screw12W11222514 Whirlpool Top Assembly13W11213336 Whirlpool Nut14W11406489 Whirlpool Knob15W11406485 Whirlpool Console16WP8536939 Whirlpool Spring Clip18W10662472 Whirlpool Cover Assembly19ASSEMBLY, FASCIA20WP9740848 Whirlpool Dishwasher Screw
