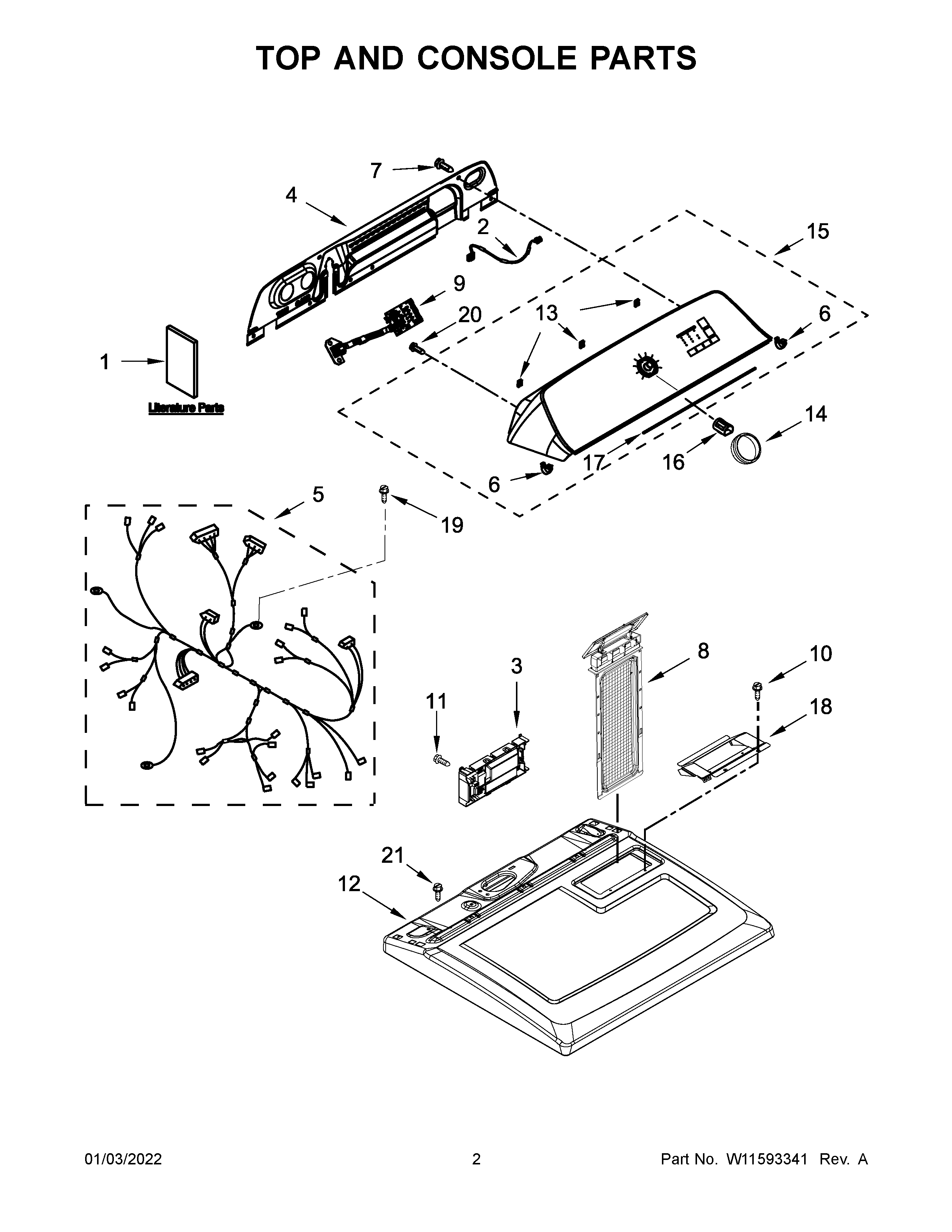

WED5010LW1 02 – TOP AND CONSOLE PARTS

Products

Position	Product
1	OWNERS MANUAL
1A	TECH SHEET
1B	QUICK START GUIDE
2	HARNS-WIRE
3	APPLIANCE CONTROL UNIT (ACU)
4	W10775189 Whirlpool Rear Panel
5	W11736786 Whirlpool Wire Harness
6	WP8312709 Whirlpool Endcap Clip
7	WP693995 Whirlpool Screw
8	SCREEN
9	W11627521-includeCORE Whirlpool W11627521 Washer Electronic Control Board + Core
10	W11693756 Whirlpool Screw Assembly
11	WP90767 Whirlpool Screw
12	W11222514 Whirlpool Top Assembly
13	W11213336 Whirlpool Nut
14	W11662669 Whirlpool Dryer Knob
15	W11561663 Whirlpool Console
16	WP688805 Whirlpool Spring Clip
17	W11721376 Whirlpool Seal Assembly
18	W10662472 Whirlpool Cover Assembly
19	W10850756 Whirlpool Screw
20	WP9740848 Whirlpool Dishwasher Screw
21	SCREW
