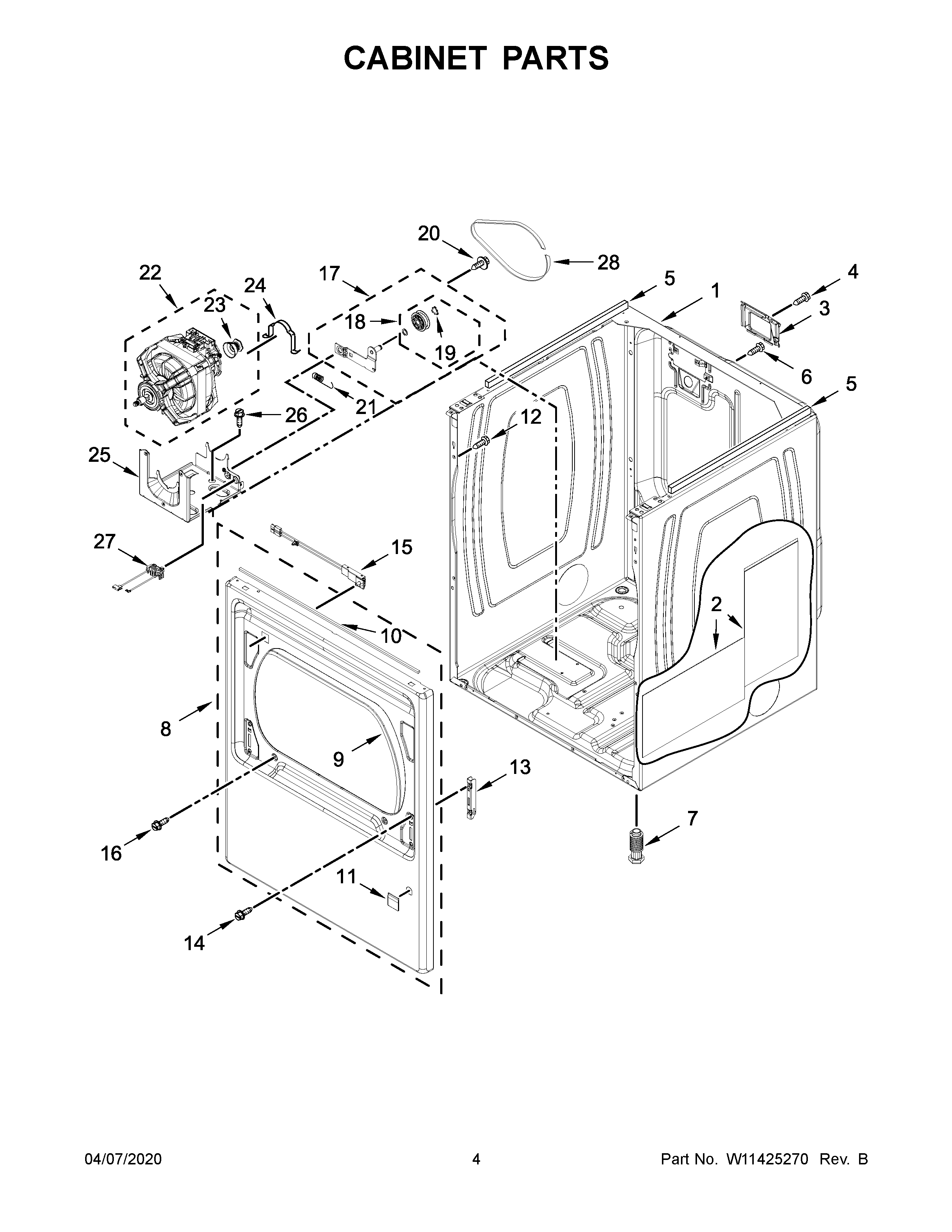

WED5100HC0 03 – CABINET PARTS

WED5100HC0 03 – CABINET PARTS

Products

PositionProduct
1W11417441 Whirlpool Cabinet
1AW11417445 Whirlpool Cabinet
2W11690850 Whirlpool Pad
3W11662367 Whirlpool Dryer Cover
4WP3390631 Whirlpool Screw
5W11352071 Whirlpool Seal
6W11693756 Whirlpool Screw Assembly
7W11444912 Whirlpool Leveling Leg
8AW11402953 Whirlpool Plug
8W11402947 Whirlpool Plug
9WP3387242 Whirlpool Seal
10W11406199 Whirlpool Seal
11AW11406198 Whirlpool Plug
11W10811916 Whirlpool Plug
12W10891954 Whirlpool Screw
13W11568982 Whirlpool Inner Door Hinge
14SCREW
15W11551763 Whirlpool Door Switch
16WP308685 Whirlpool Microwave Screw
17W10837240 Whirlpool Dryer Idler Pulley
18279640 Whirlpool Dryer Idler Pulley Kit
19WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
20WP3389420 Whirlpool Screw
21WPW10446781 Whirlpool Spring
22279787 Whirlpool Dryer Drive Motor
23W10837625 Whirlpool Dryer Motor Pulley
24CLAMP
25W11481730 Whirlpool Bracket
26SCREW
27W10847984 Whirlpool Switch
28661570V Whirlpool Dryer Drum Belt
