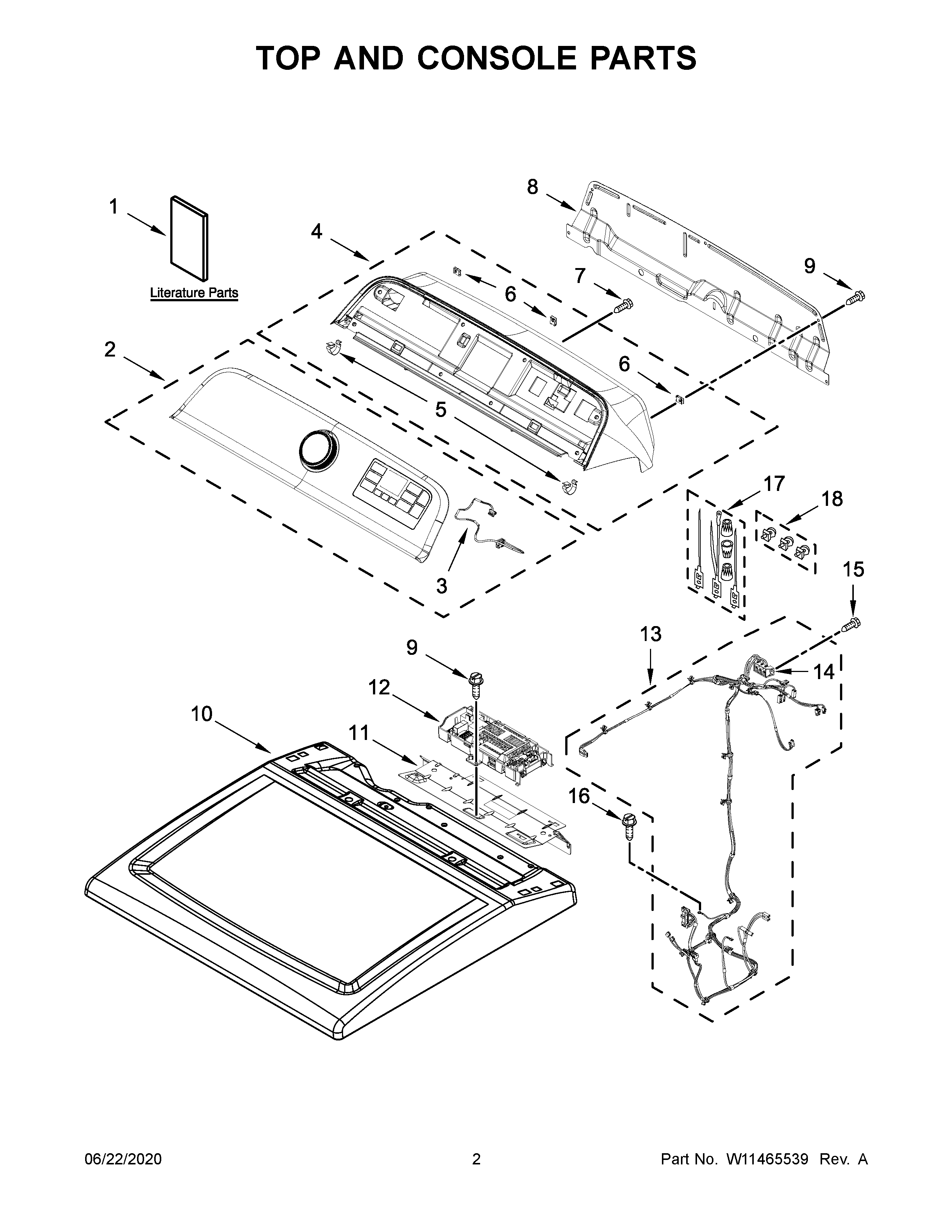

WED5100HW1 02 – TOP AND CONSOLE PARTS

WED5100HW1 02 – TOP AND CONSOLE PARTS

Written by

in

WED5100HW1 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1ATECH SHEET
1INSTALLATION INSTRUCTIONS
1BQUICK START GUIDE
2W11419056 Whirlpool Control Panel
3W11164312 Whirlpool Wire Harness
4W11401363 Whirlpool Console
4AW11401366 Whirlpool Console
5WP8312709 Whirlpool Endcap Clip
6W11213336 Whirlpool Nut
7WP9740848 Whirlpool Dishwasher Screw
8W11433112 Whirlpool Rear Panel
9WP488729 Whirlpool Refrigerator Door Screw
10AW11641122 Whirlpool Top
10TOP (WHITE)
11W11431865 Whirlpool Bracket
12W11413569-includeCORE Whirlpool W11413569 Electronic Control Board + Core
13W11690904 Whirlpool Wire Harness
14WP3397659 Whirlpool Terminal Block
15WP308685 Whirlpool Microwave Screw
16W10850756 Whirlpool Screw
17279318 Whirlpool Terminal
18279393 Whirlpool Terminal Block Screw and Nut Kit
