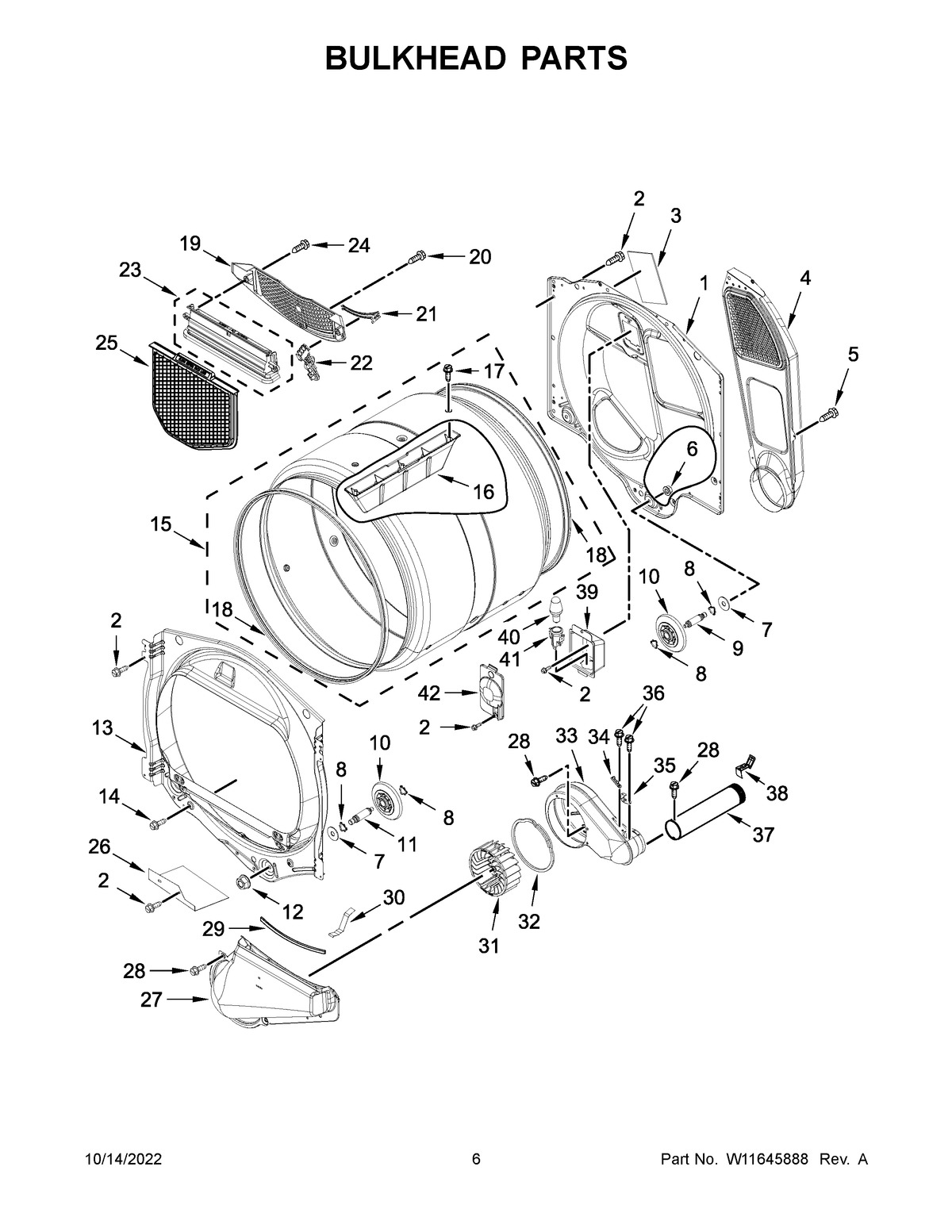

WED5100HW3 04 – BULKHEAD PARTS

WED5100HW3 04 – BULKHEAD PARTS

Written by

in

WED5100HW3 04 – BULKHEAD PARTS

Products

PositionProduct
1W11299301 Whirlpool Bulkhead Assembly
2WP488729 Whirlpool Refrigerator Door Screw
3W11409002 Whirlpool Pad
4W11677720 Whirlpool Air Duct
5WP90767 Whirlpool Screw
6WPW10080190 Whirlpool Nut
7W11236646 Whirlpool Washer Assembly
8WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
9SHAFT
10WPW10314173 Whirlpool Dryer Drum Support Wheel
11SHAFT
12WPW10080210 Whirlpool Nut
13W11162467 Whirlpool Bulkhead Assembly
14WP308685 Whirlpool Microwave Screw
15W10545923 Whirlpool Drum Assembly
16WPW10113136 Whirlpool Drum Baffle
17W10853898 Whirlpool Screw
18280114 Whirlpool Dryer Drum Seal
19W11086603 Whirlpool Dryer Link Screen Air Grille
21WP3387223 Whirlpool Electrode Assembly
22WPW10298258 Whirlpool Wire Harness
23W11129408 Whirlpool Out Housing
24WP3387230 Whirlpool Screw
25W10120998 Whirlpool Dryer Lint Screen Filter
26W11257251 Whirlpool Shield
27WPW10128606 Whirlpool Lint Duct
28WP489463 Whirlpool Refrigerator Screw
29WP697813 Whirlpool Seal
30WP8066208 Whirlpool Clip
31WP697772 Whirlpool Dryer Blower Wheel
32W11596046 Whirlpool Seal
33W10888146 Whirlpool Housing
34FUSE-THRML
35WP8577274 Whirlpool Dryer Thermistor
36WP693995 Whirlpool Screw
37279936 Whirlpool Exhaust Pipe
38W11684573 Whirlpool Clip Assembly
393977373 Whirlpool Bracket
40WP22002263 Whirlpool Dryer 10W Light Bulb
41W11222979 Whirlpool Socket
42W11226088 Whirlpool Lens Assembly
