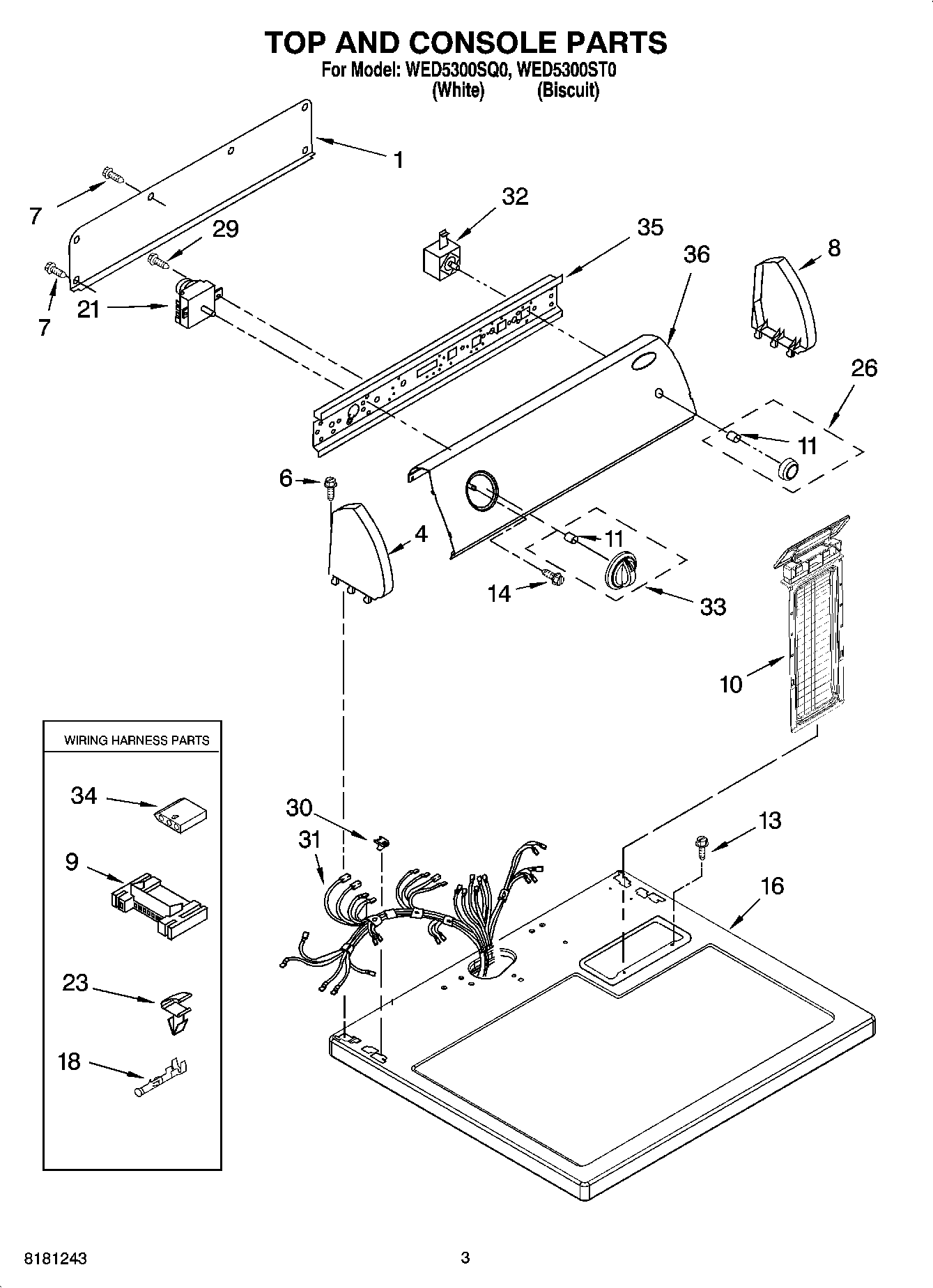

WED5300SQ0 02 – TOP AND CONSOLE PARTS

WED5300SQ0 02 – TOP AND CONSOLE PARTS

Written by

in

WED5300SQ0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1W10103406 Whirlpool Rear Panel
4Cap, End (L.H.) (BIscuit)
6WP388326 Whirlpool Screw
7WP693995 Whirlpool Screw
8WPL 8271362
8W10820038 Whirlpool Endcap
93395683 Whirlpool Connector
10Screen, Lint (Biscuit)
10WPW10717210 Whirlpool Dryer Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
13W11693756 Whirlpool Screw Assembly
143400859 Whirlpool Screw
16Top
16Top
18WP94614 Whirlpool Terminal
21WP8299778 Whirlpool Timer
23WP3394427 Whirlpool Clip
26Knob, Push-To-Start (Biscuit)
26WP8566065 Whirlpool Knob
29WP90767 Whirlpool Screw
30WP357213 Whirlpool Hinge Stopper
31WPW10450292 Whirlpool Wire Harness
32WP3977456 Whirlpool Start Switch
33WP8566061 Whirlpool Knob
33Timer Knob Assembly (Biscuit)
343936144 Whirlpool Connector
35Bracket, Control
36Panel, Control
36Panel, Control (Biscuit)
