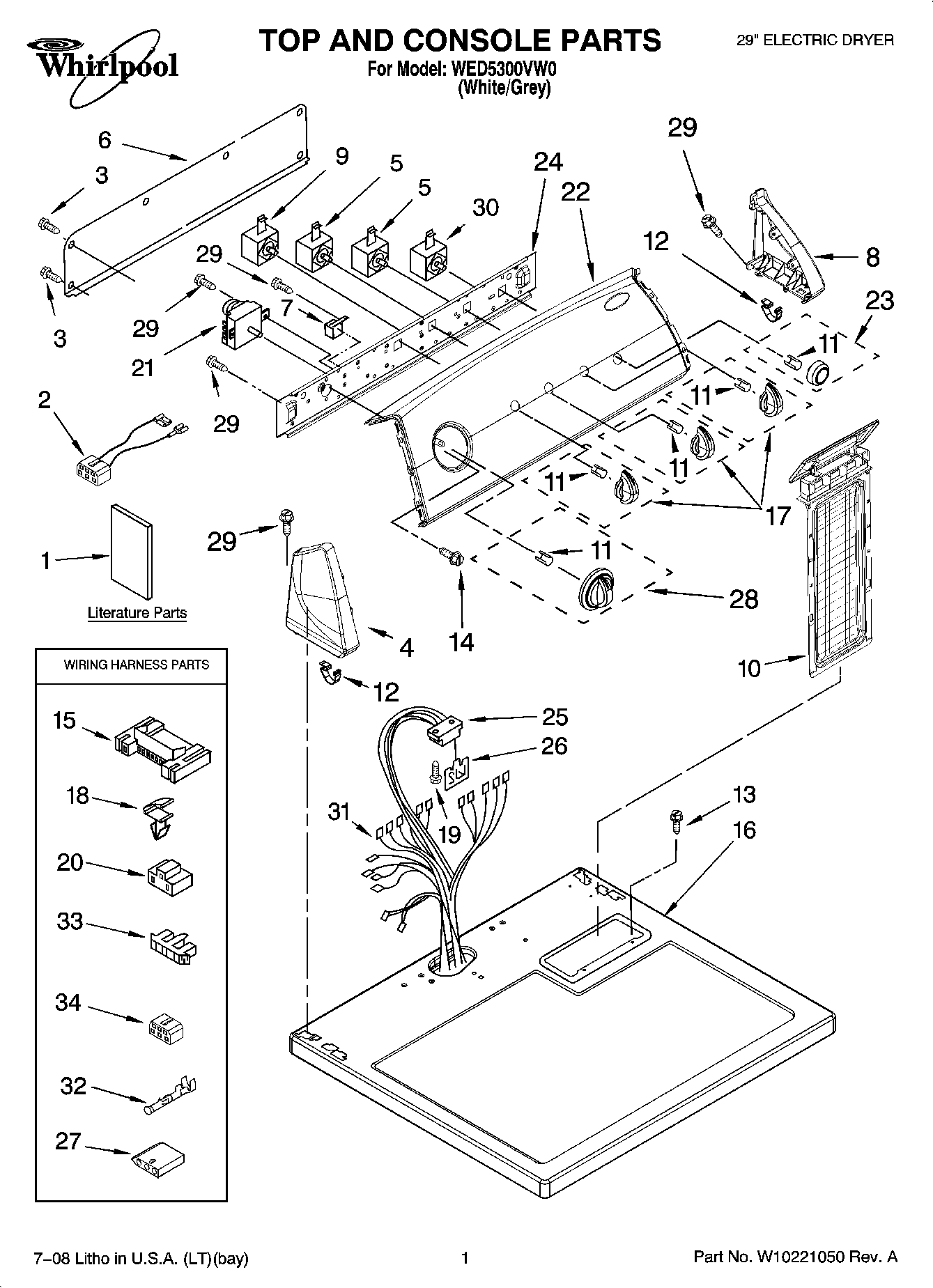

WED5300VW0 01 – TOP AND CONSOLE PARTS

WED5300VW0 01 – TOP AND CONSOLE PARTS

Written by

in

WED5300VW0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1Use & Care Guide
1Instructions, Installation
1WPL 677818
1Wiring Diagram
1Sheet, Cycle Feature
2W10113080 Whirlpool Wire Harness
3WP693995 Whirlpool Screw
4WP8565957 Whirlpool Endcap Assembly
5WP3405156 Whirlpool Switch
6W10103406 Whirlpool Rear Panel
7WP694419 Whirlpool Buzzer Adjuster
8WP8565954 Whirlpool Endcap
9WP8578352 Whirlpool Temperature Switch
10WPW10717210 Whirlpool Dryer Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
12WP8312709 Whirlpool Endcap Clip
13W11693756 Whirlpool Screw Assembly
143400859 Whirlpool Screw
153395683 Whirlpool Connector
16WP8563663 Whirlpool Top Assembly
17Knob, Control (3)
18WP3394427 Whirlpool Clip
19SCREW
203401144 Whirlpool Connector
21TIMER
22Panel, Control
23WPW10034790 Whirlpool Knob
248566052 Whirlpool Bracket
253391885 Whirlpool Connector
26WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
273936144 Whirlpool Connector
28TIMER KNOB ASSEMBLY
29WP90767 Whirlpool Screw
30WP3398095 Whirlpool Dryer Start Relay
31W10071280 Whirlpool Wiring Harness
32WP94614 Whirlpool Terminal
33Connector, Timer
34Block, Disconnect
