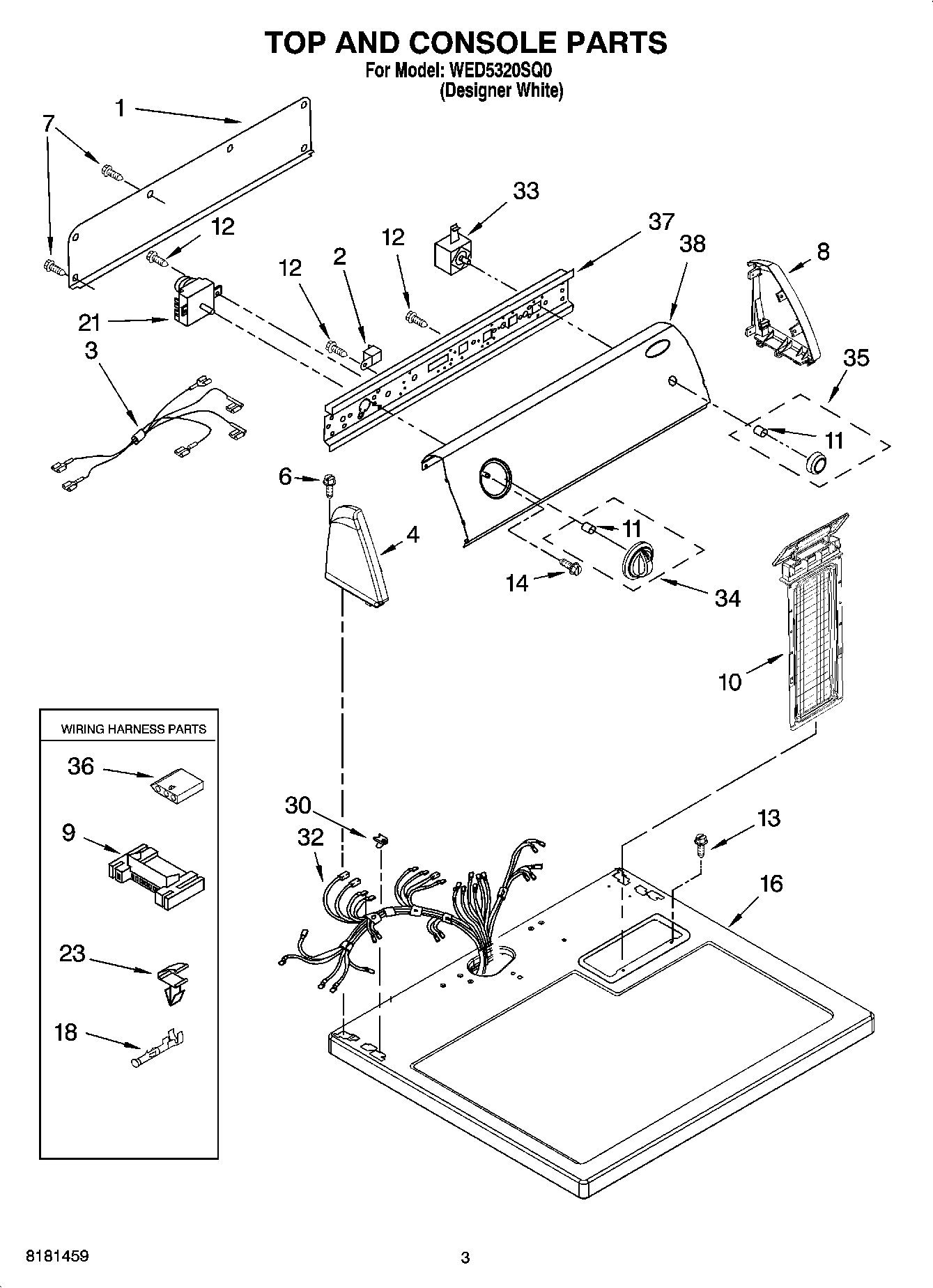

WED5320SQ0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1W10103406 Whirlpool Rear Panel
2WP694419 Whirlpool Buzzer Adjuster
3Jumper, (Three Wire)
6WP388326 Whirlpool Screw
7WP693995 Whirlpool Screw
8W10820038 Whirlpool Endcap
93395683 Whirlpool Connector
10WPW10717210 Whirlpool Dryer Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
12WP90767 Whirlpool Screw
13W11693756 Whirlpool Screw Assembly
143400859 Whirlpool Screw
16Top
18WP94614 Whirlpool Terminal
21WP8299779 Whirlpool Timer
23WP3394427 Whirlpool Clip
30WP357213 Whirlpool Hinge Stopper
32WPW10450292 Whirlpool Wire Harness
33WP3977456 Whirlpool Start Switch
34WP8566061 Whirlpool Knob
35WP8566065 Whirlpool Knob
363936144 Whirlpool Connector
37Bracket, Control
38Panel, Control
