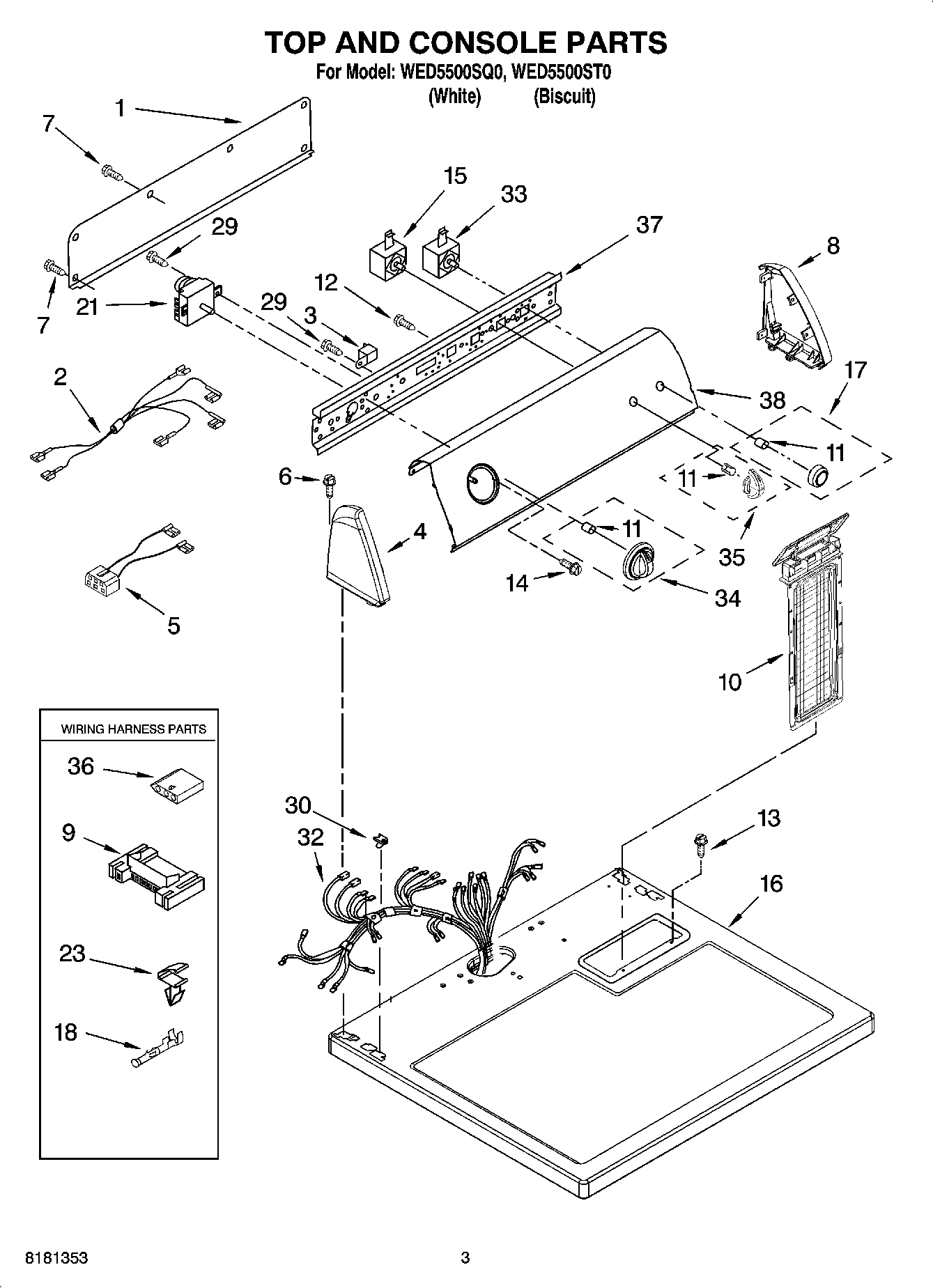

WED5500SQ0 02 – TOP AND CONSOLE PARTS

WED5500SQ0 02 – TOP AND CONSOLE PARTS

Written by

in

WED5500SQ0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1W10103406 Whirlpool Rear Panel
2Wire, Jumper (Black)
3WP694419 Whirlpool Buzzer Adjuster
4Cap, End (L.H.) (BIscuit)
58539893 Whirlpool Wire Harness
6WP388326 Whirlpool Screw
7WP693995 Whirlpool Screw
8WPL 8271362
8W10820038 Whirlpool Endcap
93395683 Whirlpool Connector
10Screen, Lint (Biscuit)
10WPW10717210 Whirlpool Dryer Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
13W11693756 Whirlpool Screw Assembly
143400859 Whirlpool Screw
15WP3399639 Whirlpool Switch
16Top
16Top
178566076 Whirlpool Knob Assembly
17WP8566073 Whirlpool Appliance Knob
18WP94614 Whirlpool Terminal
21WP3979617 Whirlpool Timer
23WP3394427 Whirlpool Clip
29WP90767 Whirlpool Screw
30WP357213 Whirlpool Hinge Stopper
32Harness, Wiring
33WP3398095 Whirlpool Dryer Start Relay
34WP8566061 Whirlpool Knob
34Timer Knob Assembly (Biscuit)
35Knob, Control
35Knob, Control (B
363936144 Whirlpool Connector
37Bracket, Control
38Panel, Control (White)
38Panel, Control (Biscuit)
