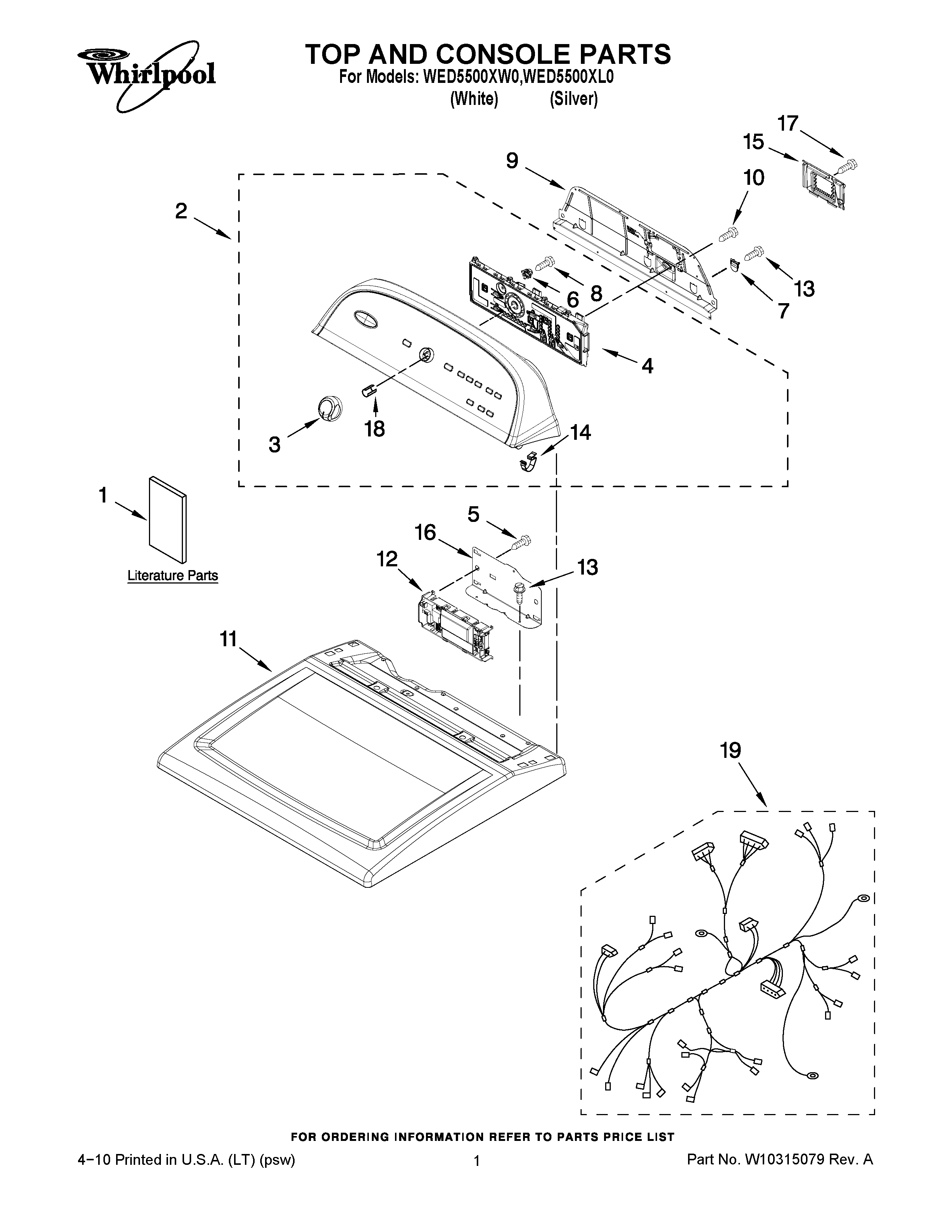

WED5500XW0 01 – TOP AND CONSOLE PARTS

WED5500XW0 01 – TOP AND CONSOLE PARTS

Written by

in

WED5500XW0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1TECH SHEET
1INSTALLATION INSTRUCTIONS
1GUIDE, USE & CARE
2WPW10269607 Whirlpool Console Assembly
3WPW10251392 Whirlpool Knob
4WPW10269623 Whirlpool Electronic Control Board + Core
5WP33001882 Whirlpool Screw
6W10274524 Whirlpool Grommet
7W10279552 Whirlpool Plug
8W10853898 Whirlpool Screw
9W10096969 Whirlpool Rear Panel
11TOP (SILVER)
11TOP (WHITE)
12WPW10317636-includeCORE Whirlpool WPW10317636 Refrigerator Electronic Control Board + Core
13WP488729 Whirlpool Refrigerator Door Screw
14WP8312709 Whirlpool Endcap Clip
15WPW10119283 Whirlpool Terminal Cover
16W10271580 Whirlpool Mount
17WP90767 Whirlpool Screw
18WP8536939 Whirlpool Spring Clip
19W10253981 Whirlpool Wire Harness
