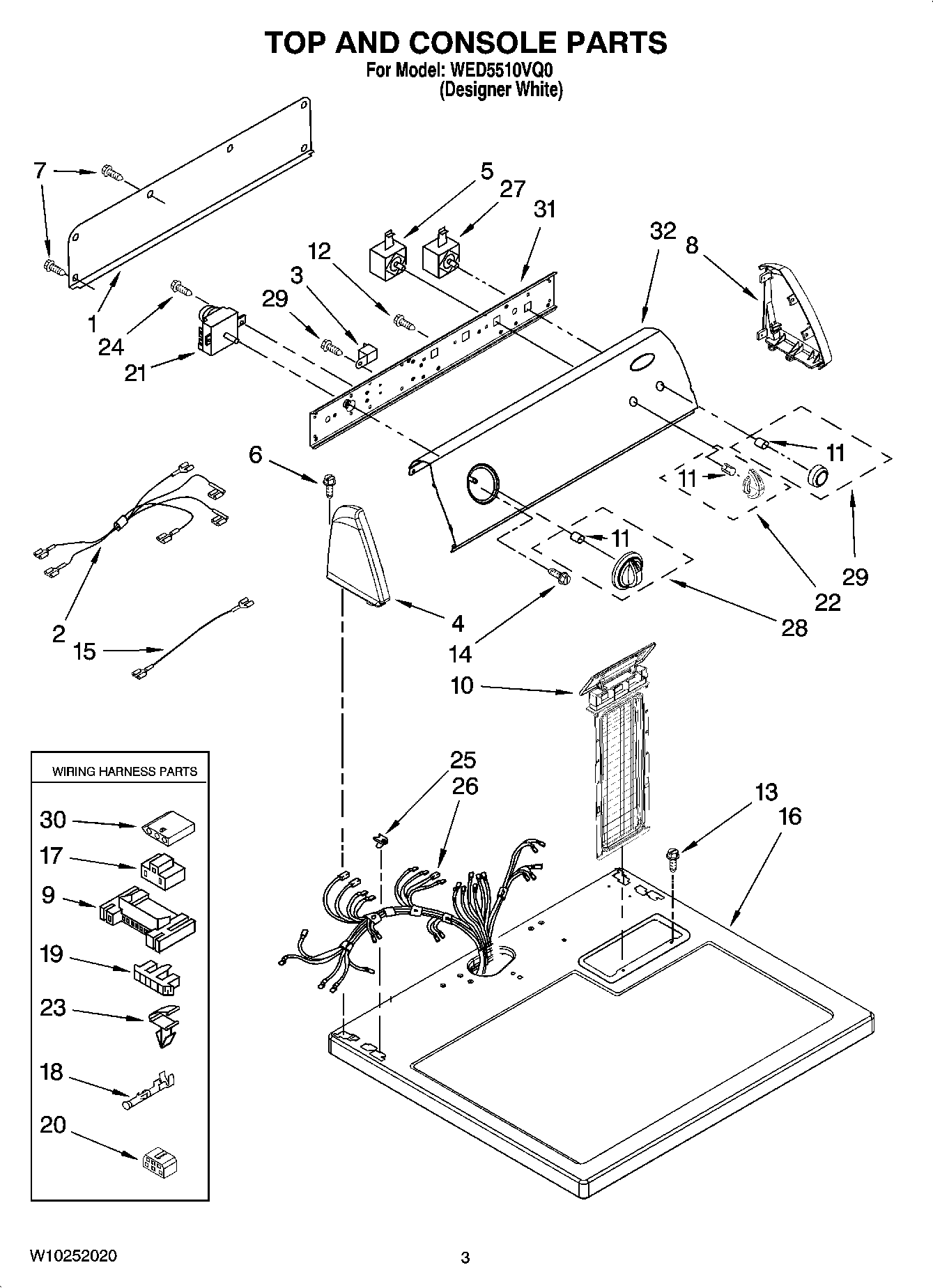

WED5510VQ0 02 – TOP AND CONSOLE PARTS
Written by
in
WED5510VQ0 02 – TOP AND CONSOLE PARTS
Products
Position
Product
1
W10103406 Whirlpool Rear Panel
2
8539893 Whirlpool Wire Harness
3
WP694419 Whirlpool Buzzer Adjuster
5
WP3399639 Whirlpool Switch
6
WP388326 Whirlpool Screw
7
WP693995 Whirlpool Screw
8
W10820038 Whirlpool Endcap
9
3395683 Whirlpool Connector
10
WPW10717210 Whirlpool Dryer Lint Screen Filter
11
WP8536939 Whirlpool Spring Clip
13
W11693756 Whirlpool Screw Assembly
14
3400859 Whirlpool Screw
15
Wire, Jumper (Black)
16
Top
17
Block, Disconnect
18
WP94614 Whirlpool Terminal
19
Connector, Timer
20
3401144 Whirlpool Connector
21
WP3979617 Whirlpool Timer
22
Knob, Control
23
WP3394427 Whirlpool Clip
24
WP90767 Whirlpool Screw
25
WP357213 Whirlpool Hinge Stopper
26
Harness, Wiring
27
WP3398095 Whirlpool Dryer Start Relay
28
WP8566061 Whirlpool Knob
29
WP8566073 Whirlpool Appliance Knob
30
3936144 Whirlpool Connector
31
Bracket, Control
32
Panel, Control
←
