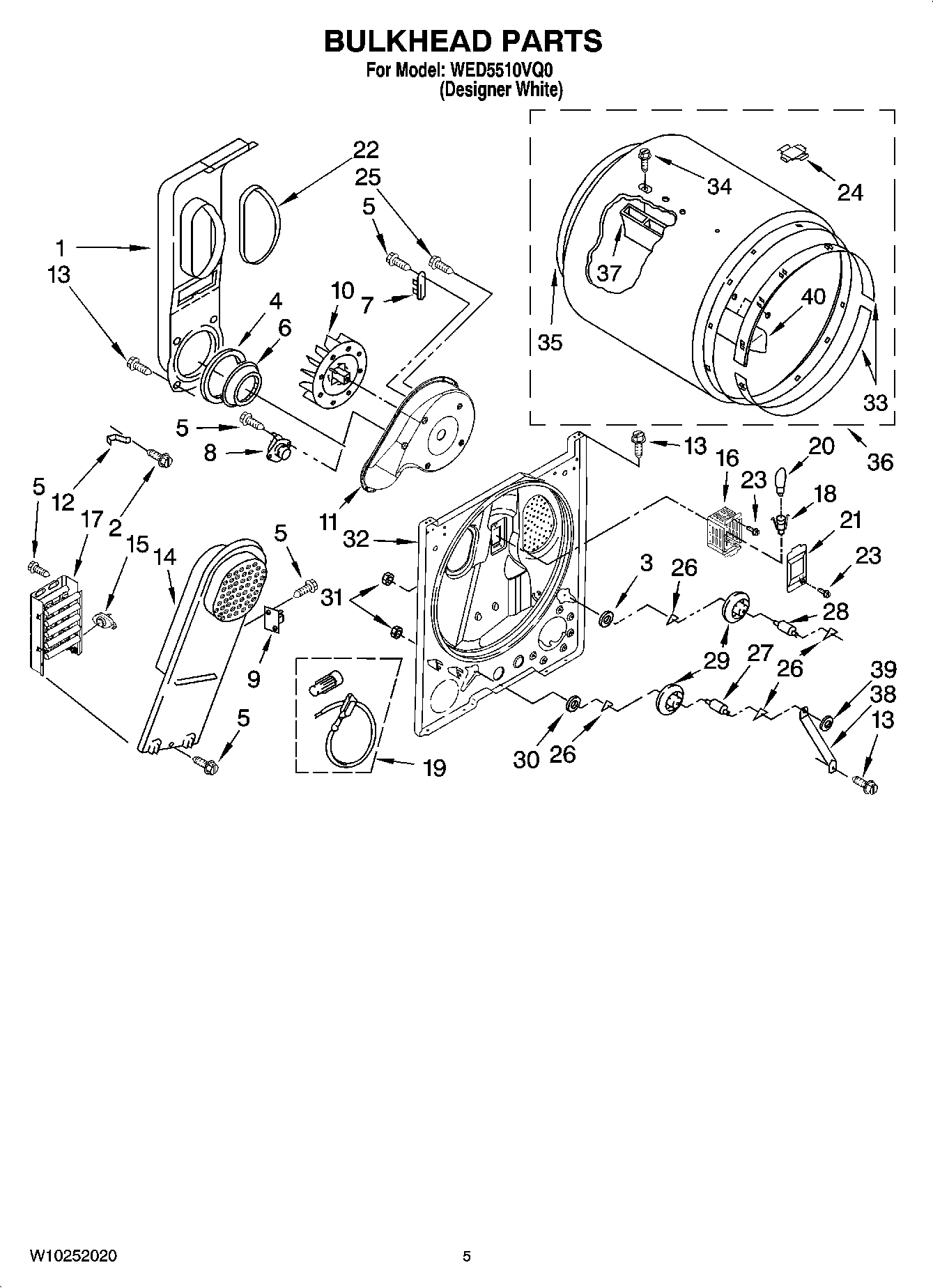

WED5510VQ0 03 – BULKHEAD PARTS, OPTIONAL PARTS (NOT INCLUDED)

WED5510VQ0 03 – BULKHEAD PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

WED5510VQ0 03 – BULKHEAD PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
350930 Whirlpool White Spray Paint
4392065 Whirlpool Dryer Maintenance Kit
W11224254 Whirlpool Test Kit
3404351 Whirlpool Dryer Rack
ACCESSORY PARTS
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
350938 Whirlpool Spray Gun
1W11117429 Whirlpool Chute Assembly
2WP489463 Whirlpool Refrigerator Screw
3WP3388703 Whirlpool Washer
4W11415783 Whirlpool Seal
5WP90767 Whirlpool Screw
6W11233063 Whirlpool Shield Assembly
7WP3392519 Whirlpool Dryer Thermal Fuse
8WP3387134 Whirlpool Dryer Cycling Thermostat
9279816 Whirlpool Dryer Thermal Cut-Off Fuse Kit
10WP694089 Whirlpool Dryer Blower Wheel
11WP8577230 Whirlpool Housing
12CLIP, HEATER BOX
13SCREW
14WP8541818 Whirlpool Box
15WP3977767 Whirlpoo Dryer High Limit Thermostat
163977373 Whirlpool Bracket
17279838 Whirlpool Dryer Heating Element 5400W
18W11700522 Whirlpool Socket
19279457 Whirlpool Dryer Heating Element Wide Spade Connection
20WP22002263 Whirlpool Dryer 10W Light Bulb
21W11226088 Whirlpool Lens Assembly
22SEAL
248066086 Whirlpool Plug
25WP488729 Whirlpool Refrigerator Door Screw
26WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
27SHAFT SUPPORT ROLLER DRYER
28SHAFT SUPPORT ROLLER DRYER
29349241T Whirlpool Dryer Drum Support Roller Kit
30WP348197 Whirlpool Washer Assembly
31WP3359452 Whirlpool Nut
32W10828911 Whirlpool Bulkhead Assembly
33279441 Whirlpool Front Bearing Ring
34W10853898 Whirlpool Screw
35W10612022 Whirlpool Felt Seal
36W10899578 Whirlpool Dryer Drum Assembly
37BAFFLE-DRM
38W11684613 Whirlpool Bracket
39WP90296 Whirlpool Clip
40WP3403636 Whirlpool Drum Baffle
