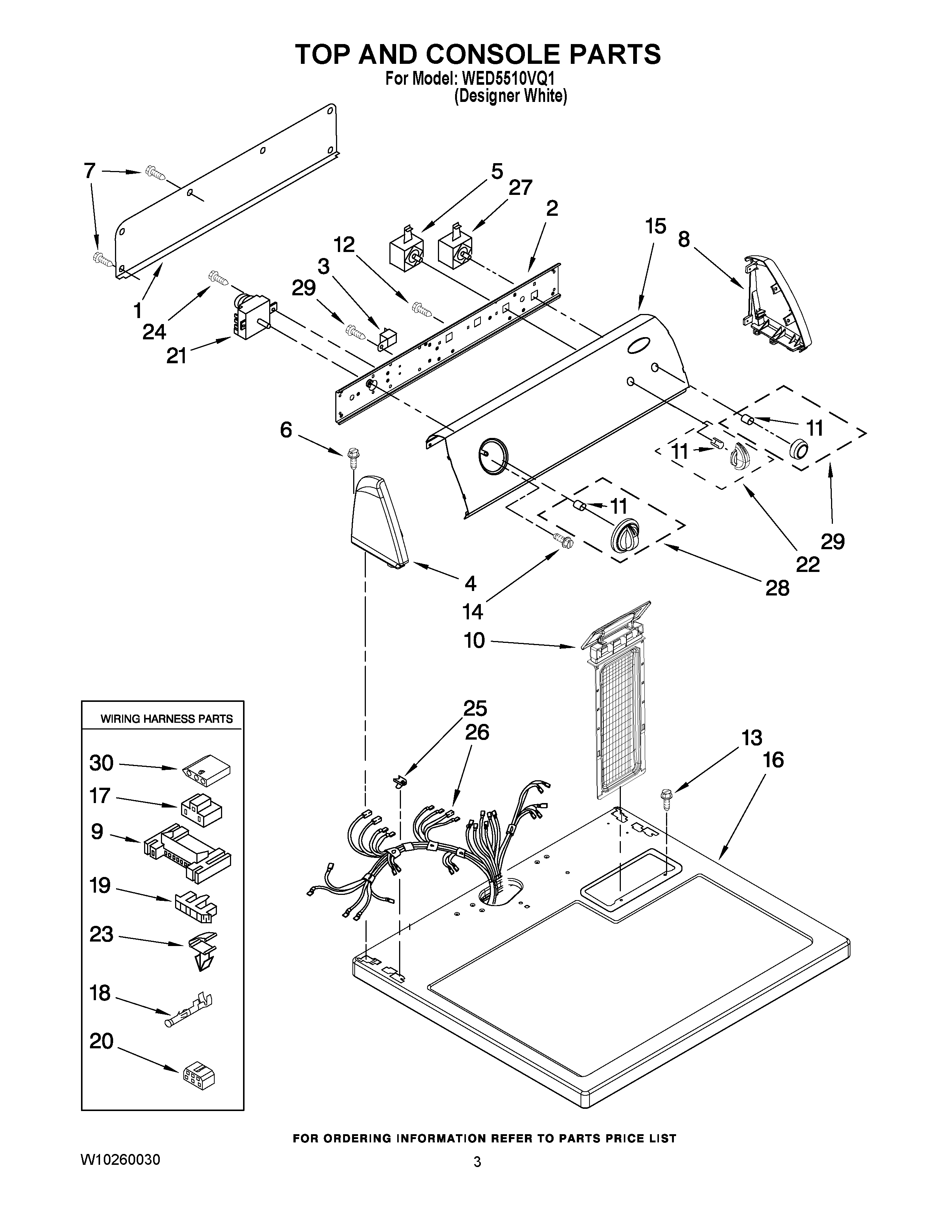

WED5510VQ1 02 – TOP AND CONSOLE PARTS

WED5510VQ1 02 – TOP AND CONSOLE PARTS

Written by

in

WED5510VQ1 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1W10103406 Whirlpool Rear Panel
2Bracket, Control
3WP694419 Whirlpool Buzzer Adjuster
5WP3399639 Whirlpool Switch
6WP388326 Whirlpool Screw
7WP693995 Whirlpool Screw
8W10820038 Whirlpool Endcap
93395683 Whirlpool Connector
10WPW10717210 Whirlpool Dryer Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
13W11693756 Whirlpool Screw Assembly
143400859 Whirlpool Screw
15Panel, Control
16Top
17Block, Disconnect
18WP94614 Whirlpool Terminal
19Connector, Timer
203401144 Whirlpool Connector
21WPW10185982 Whirlpool Timer
22Knob, Control
23WP3394427 Whirlpool Clip
24WP90767 Whirlpool Screw
25WP357213 Whirlpool Hinge Stopper
26W10740200 Whirlpool Wire Harness
27WP3398095 Whirlpool Dryer Start Relay
28WP8566061 Whirlpool Knob
29WP8566073 Whirlpool Appliance Knob
303936144 Whirlpool Connector
