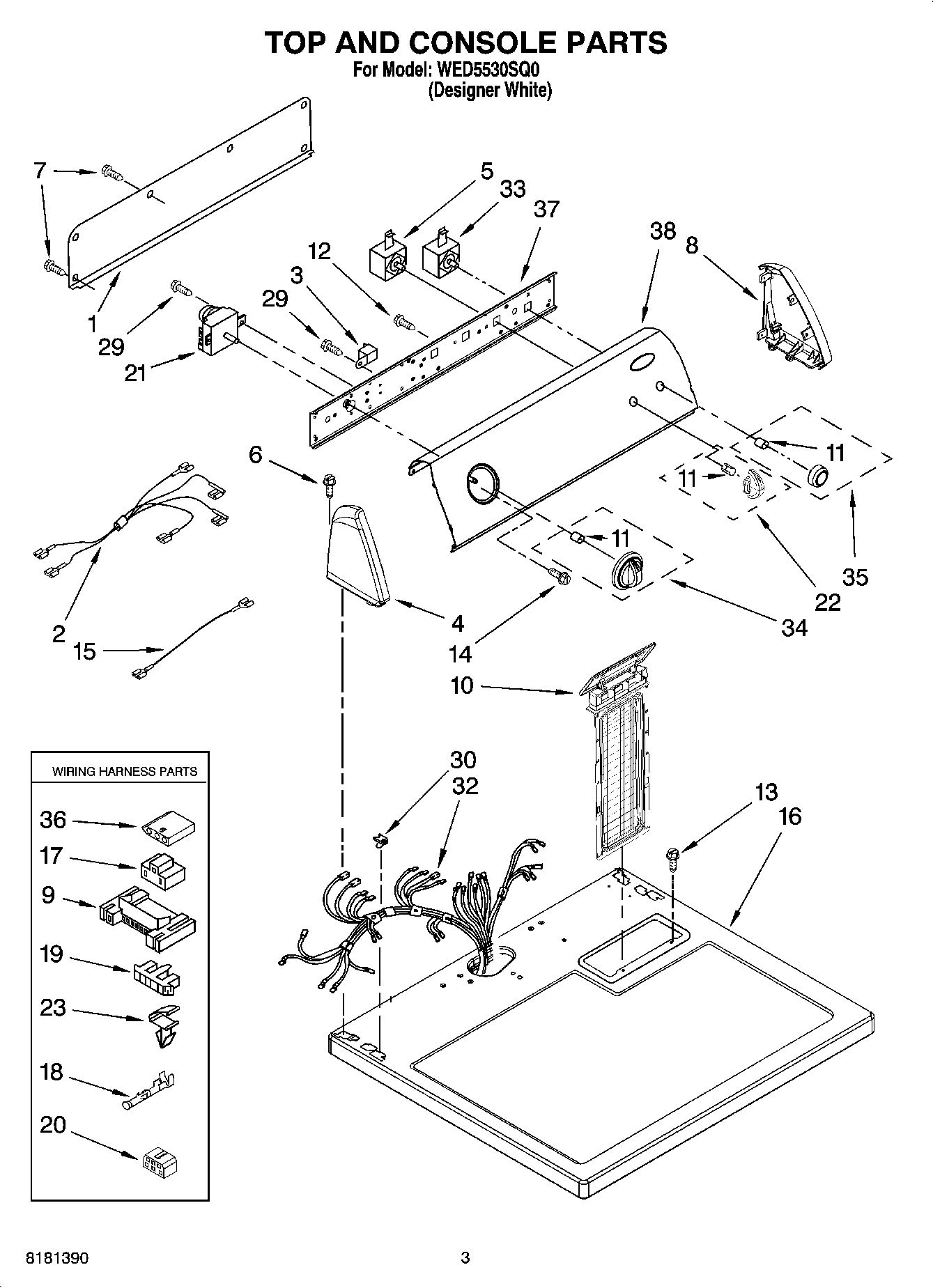

WED5530SQ0 02 – TOP AND CONSOLE PARTS
Written by
in
WED5530SQ0 02 – TOP AND CONSOLE PARTS
Products
Position
Product
1
W10103406 Whirlpool Rear Panel
2
8539893 Whirlpool Wire Harness
3
WP694419 Whirlpool Buzzer Adjuster
5
WP3399639 Whirlpool Switch
6
WP388326 Whirlpool Screw
7
WP693995 Whirlpool Screw
8
W10820038 Whirlpool Endcap
9
3395683 Whirlpool Connector
10
WPW10717210 Whirlpool Dryer Lint Screen Filter
11
WP8536939 Whirlpool Spring Clip
13
W11693756 Whirlpool Screw Assembly
14
3400859 Whirlpool Screw
15
Wire, Jumper (Tan)
16
Top
17
Block, Disconnect
18
WP94614 Whirlpool Terminal
19
Connector, Timer
20
3401144 Whirlpool Connector
21
WP8578906 Whirlpool Timer
22
Knob, Control
23
WP3394427 Whirlpool Clip
29
WP90767 Whirlpool Screw
30
WP357213 Whirlpool Hinge Stopper
32
Harness, Wiring
33
WP3398094 Whirlpool Push To Start Switch
34
WP8566061 Whirlpool Knob
35
WP8566065 Whirlpool Knob
36
3936144 Whirlpool Connector
37
Bracket, Control
38
Panel, Control
←
