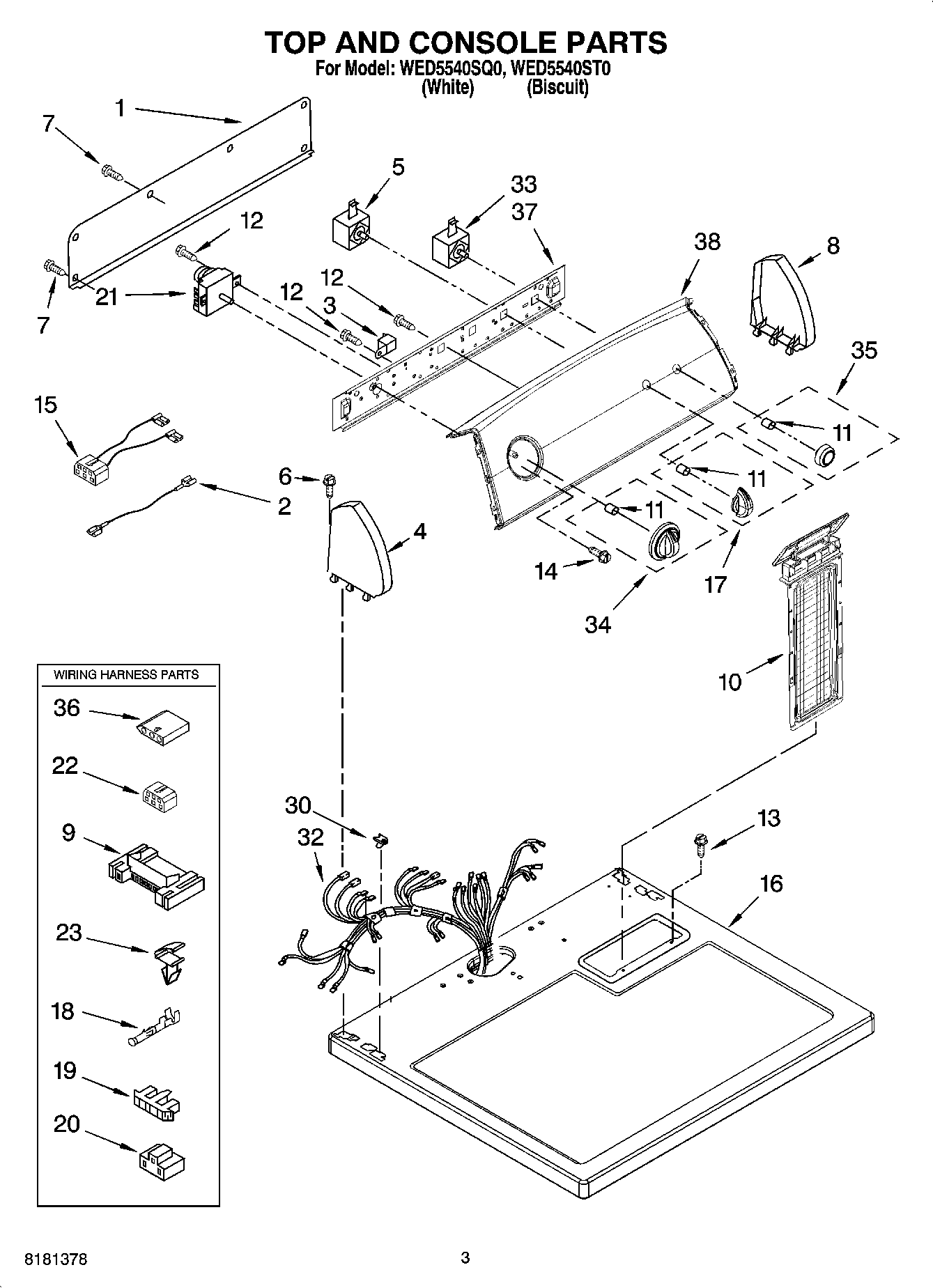

WED5540ST0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1W10103406 Whirlpool Rear Panel
2Wire, Jumper (Black)
3WP694419 Whirlpool Buzzer Adjuster
4Cap, End (L.H.) (BIscuit)
5WP3399639 Whirlpool Switch
6WP388326 Whirlpool Screw
7WP693995 Whirlpool Screw
8W10820038 Whirlpool Endcap
8WPL 8271362
93395683 Whirlpool Connector
10WPW10717210 Whirlpool Dryer Lint Screen Filter
10Screen, Lint (Biscuit)
11WP8536939 Whirlpool Spring Clip
12WP90767 Whirlpool Screw
13W11693756 Whirlpool Screw Assembly
143400859 Whirlpool Screw
158539893 Whirlpool Wire Harness
16Top
16Top
17Knob, Control
17Knob, Control (B
18WP94614 Whirlpool Terminal
19Connector, Timer
203401144 Whirlpool Connector
21WP8578906 Whirlpool Timer
22Block, Disconnect
23WP3394427 Whirlpool Clip
30WP357213 Whirlpool Hinge Stopper
32Harness, Wiring
33WP3398095 Whirlpool Dryer Start Relay
34WP8566061 Whirlpool Knob
34Timer Knob Assembly (Biscuit)
35WP8566073 Whirlpool Appliance Knob
358566076 Whirlpool Knob Assembly
363936144 Whirlpool Connector
37Bracket, Control
38Panel, Control (White)
38Panel, Control (Biscuit)
