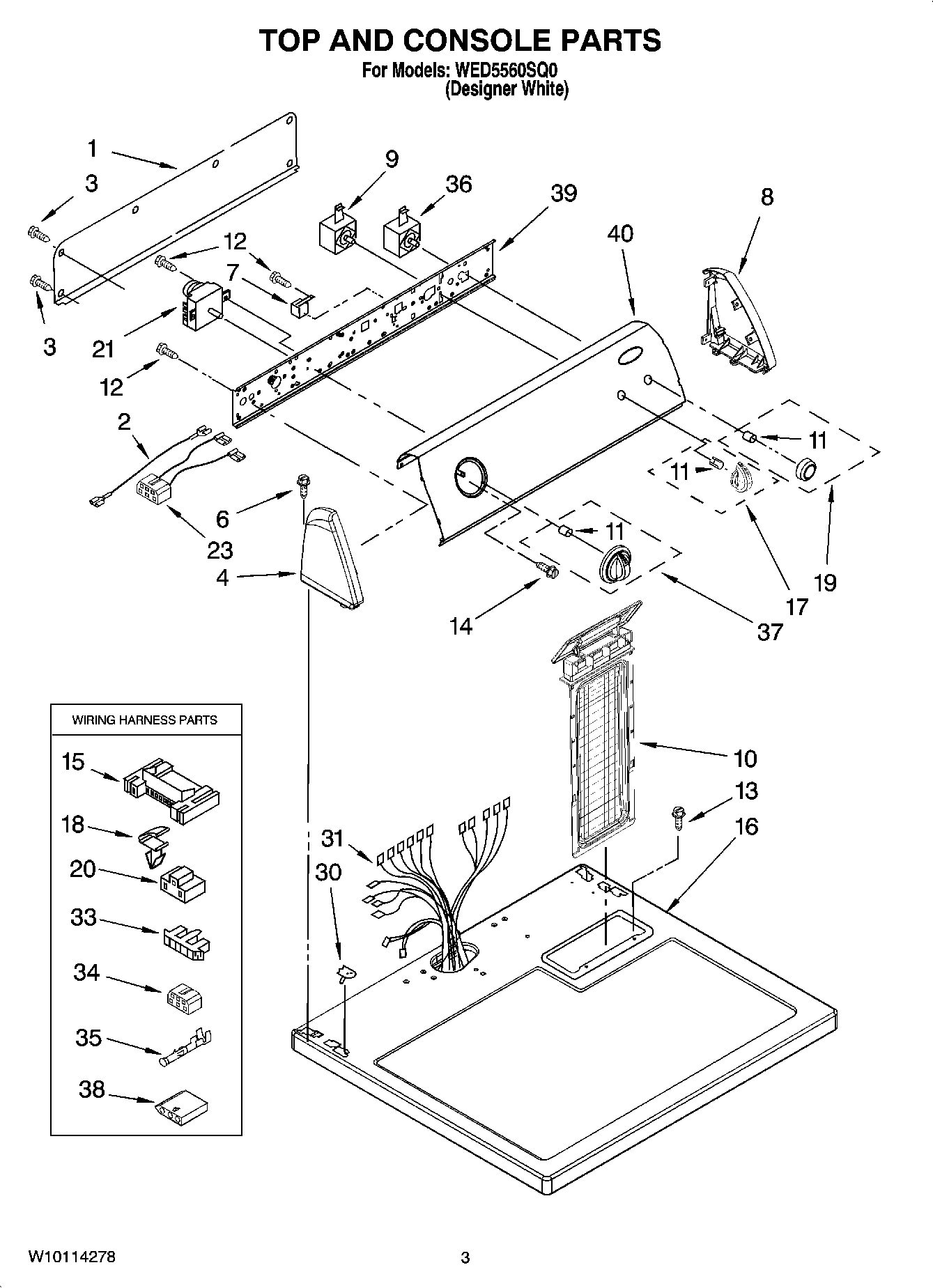

WED5560SQ0 02 – TOP AND CONSOLE PARTS

WED5560SQ0 02 – TOP AND CONSOLE PARTS

Written by

in

WED5560SQ0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1W10103406 Whirlpool Rear Panel
2Wire, Jumper (Black)
3WP693995 Whirlpool Screw
6WP388326 Whirlpool Screw
7WP694419 Whirlpool Buzzer Adjuster
8W10820038 Whirlpool Endcap
9WP3399640 Whirlpool Switch
10WPW10717210 Whirlpool Dryer Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
12WP90767 Whirlpool Screw
13W11693756 Whirlpool Screw Assembly
143400859 Whirlpool Screw
153395683 Whirlpool Connector
16Top
17Knob, Control
18WP3394427 Whirlpool Clip
19WP8566073 Whirlpool Appliance Knob
203401144 Whirlpool Connector
21WP8578906 Whirlpool Timer
233976562 Whirlpool Wire Harness
30WP357213 Whirlpool Hinge Stopper
31Harness, Wiring
33Connector, Timer
34Block, Disconnect
35WP94614 Whirlpool Terminal
36WP3398095 Whirlpool Dryer Start Relay
37WP8566061 Whirlpool Knob
383936144 Whirlpool Connector
39Bracket, Control
40Panel, Control (White)
