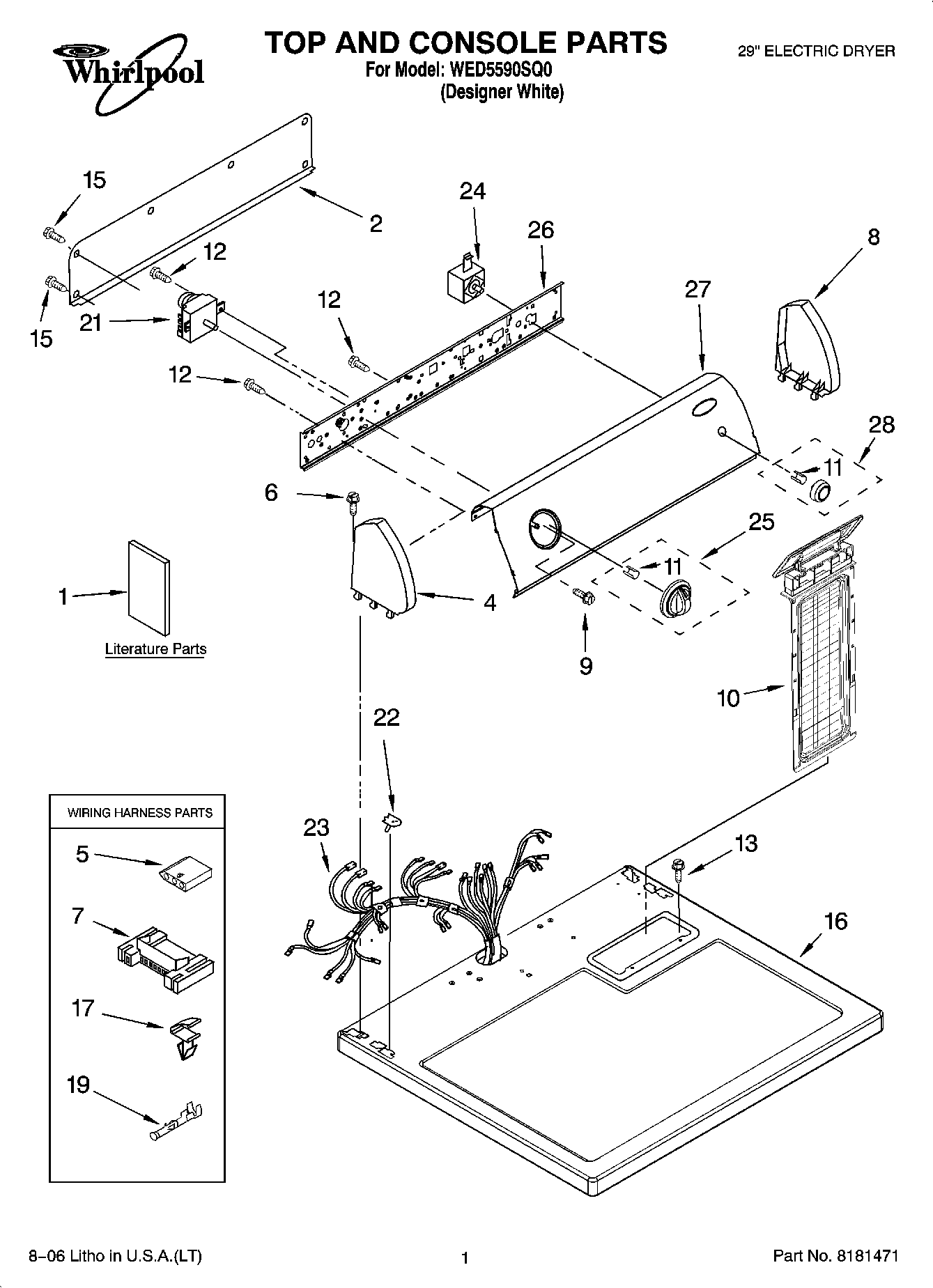

WED5590SQ0 01 – TOP AND CONSOLE PARTS

WED5590SQ0 01 – TOP AND CONSOLE PARTS

Written by

in

WED5590SQ0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1Installation Instructions
1Use & Care Guide
1Sheet, Cycle Feature
1Wiring Diagram
1WPL 677818
2W10103406 Whirlpool Rear Panel
53936144 Whirlpool Connector
6WP388326 Whirlpool Screw
73395683 Whirlpool Connector
8W10820038 Whirlpool Endcap
93400859 Whirlpool Screw
10W10874409 Whirlpool Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
12WP90767 Whirlpool Screw
13W11693756 Whirlpool Screw Assembly
15WP693995 Whirlpool Screw
16Top
17WP3394427 Whirlpool Clip
19WP94614 Whirlpool Terminal
21WP8299778 Whirlpool Timer
22WP357213 Whirlpool Hinge Stopper
23WPW10450292 Whirlpool Wire Harness
24WP3977456 Whirlpool Start Switch
25WP8566061 Whirlpool Knob
26Bracket, Control
27Panel, Control
28WP8566065 Whirlpool Knob
