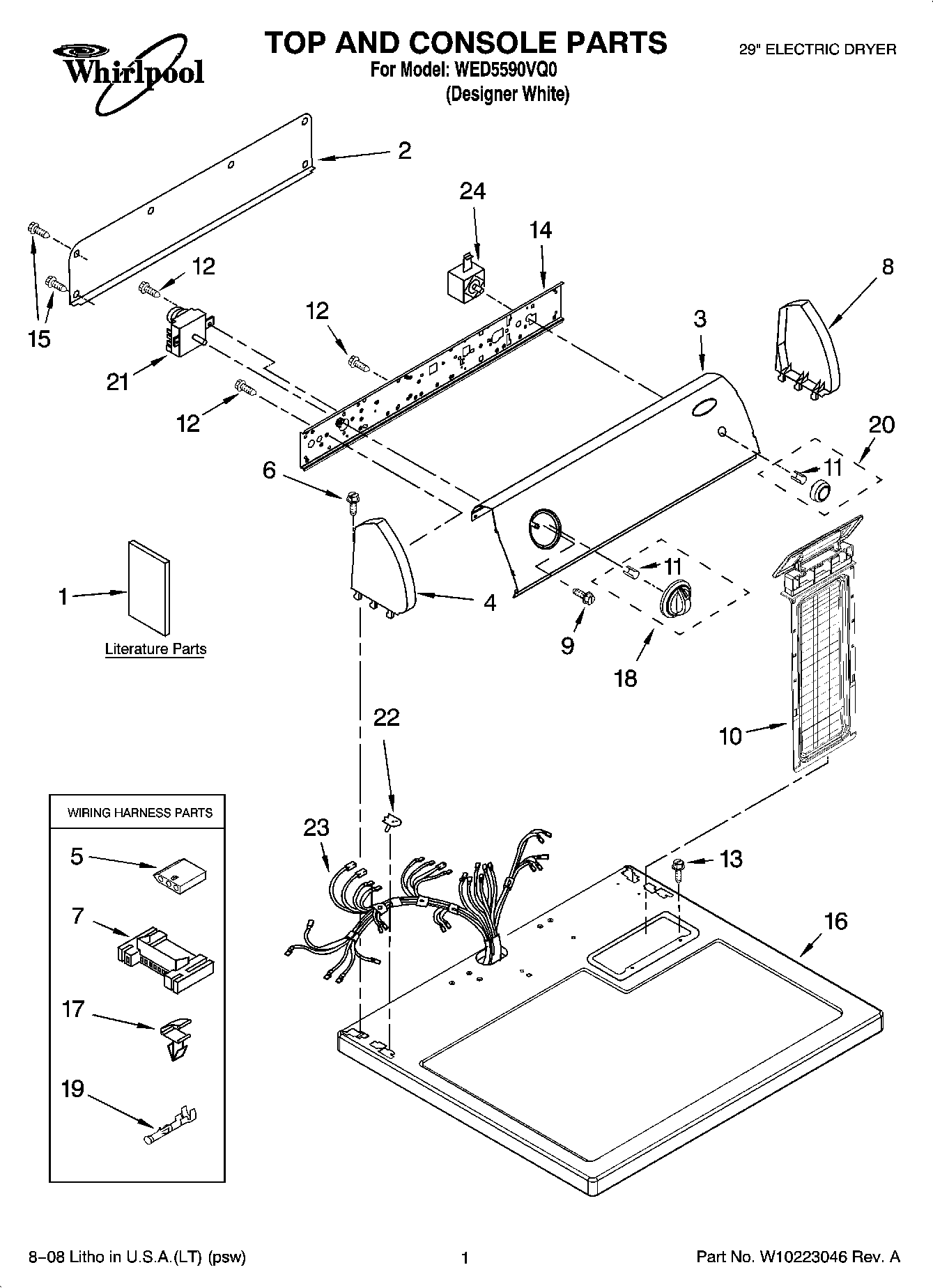

WED5590VQ0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1WPL 677818
1Use & Care Guide
1Wiring Diagram
1Instructions, Installation
1Sheet, Cycle Feature
2W10103406 Whirlpool Rear Panel
3Panel, Control
53936144 Whirlpool Connector
6WP388326 Whirlpool Screw
73395683 Whirlpool Connector
8W10820038 Whirlpool Endcap
93400859 Whirlpool Screw
10W10874409 Whirlpool Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
12WP90767 Whirlpool Screw
13W11693756 Whirlpool Screw Assembly
14Bracket, Control
15WP693995 Whirlpool Screw
16Top
17WP3394427 Whirlpool Clip
18WP8566061 Whirlpool Knob
19WP94614 Whirlpool Terminal
20WP8566065 Whirlpool Knob
21WP8299778 Whirlpool Timer
22WP357213 Whirlpool Hinge Stopper
23WPW10450292 Whirlpool Wire Harness
24WP3977456 Whirlpool Start Switch
