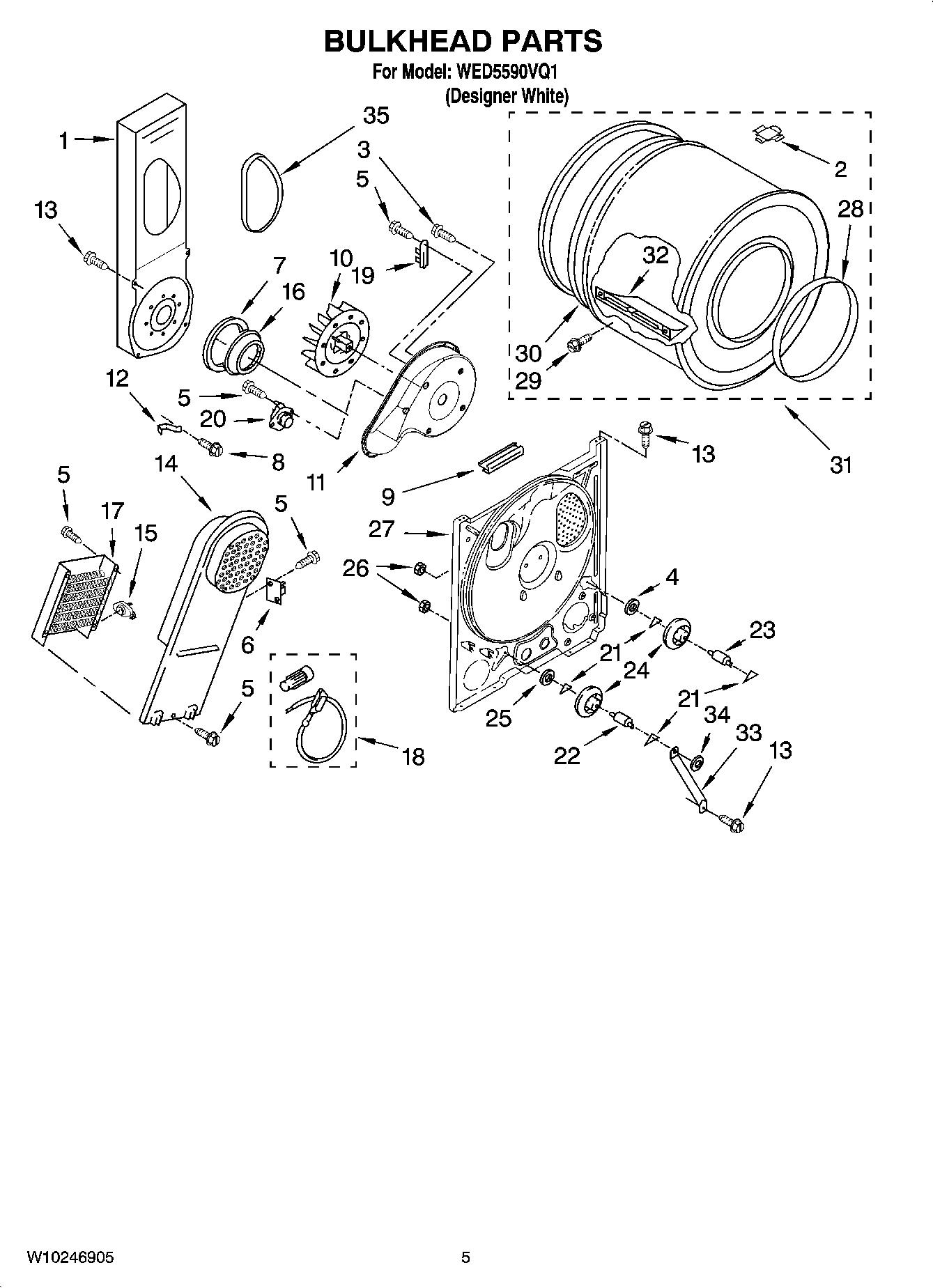

WED5590VQ1 03 – BULKHEAD PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
	350930 Whirlpool White Spray Paint
	4392065 Whirlpool Dryer Maintenance Kit
	W11224254 Whirlpool Test Kit
	WP689790 Whirlpool Dryer Rack
	ACCESSORY PARTS
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	350938 Whirlpool Spray Gun
1	Lint Chute Assembly
2	8066086 Whirlpool Plug
3	WP488729 Whirlpool Refrigerator Door Screw
4	WP3388703 Whirlpool Washer
5	WP90767 Whirlpool Screw
6	279816 Whirlpool Dryer Thermal Cut-Off Fuse Kit
7	W11415783 Whirlpool Seal
8	WP489463 Whirlpool Refrigerator Screw
9	686889 Whirlpool Pad
10	W10801999 Whirlpool Wheel
11	8577233 Whirlpool Housing
12	279771 Whirlpool Clip
13	SCREW
14	WP8541818 Whirlpool Box
15	WP3977767 Whirlpoo Dryer High Limit Thermostat
16	W11233063 Whirlpool Shield Assembly
17	279838 Whirlpool Dryer Heating Element 5400W
18	279457 Whirlpool Dryer Heating Element Wide Spade Connection
19	WP3392519 Whirlpool Dryer Thermal Fuse
20	WP3387134 Whirlpool Dryer Cycling Thermostat
21	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
22	SHAFT SUPPORT ROLLER DRYER
23	SHAFT SUPPORT ROLLER DRYER
24	349241T Whirlpool Dryer Drum Support Roller Kit
25	WP348197 Whirlpool Washer Assembly
26	WP3359452 Whirlpool Nut
27	BULKHEAD
28	WP3394509 Whirlpool Bearing Ring
29	W10853898 Whirlpool Screw
30	239087 Whirlpool Dryer Rear Drum Seal Green Stitches
31	697760 Whirlpool Drum Assembly Primary OS2
32	WP342847 Whirlpool Drum Baffle
33	Bracket, Support
34	WP90296 Whirlpool Clip
35	SEAL
