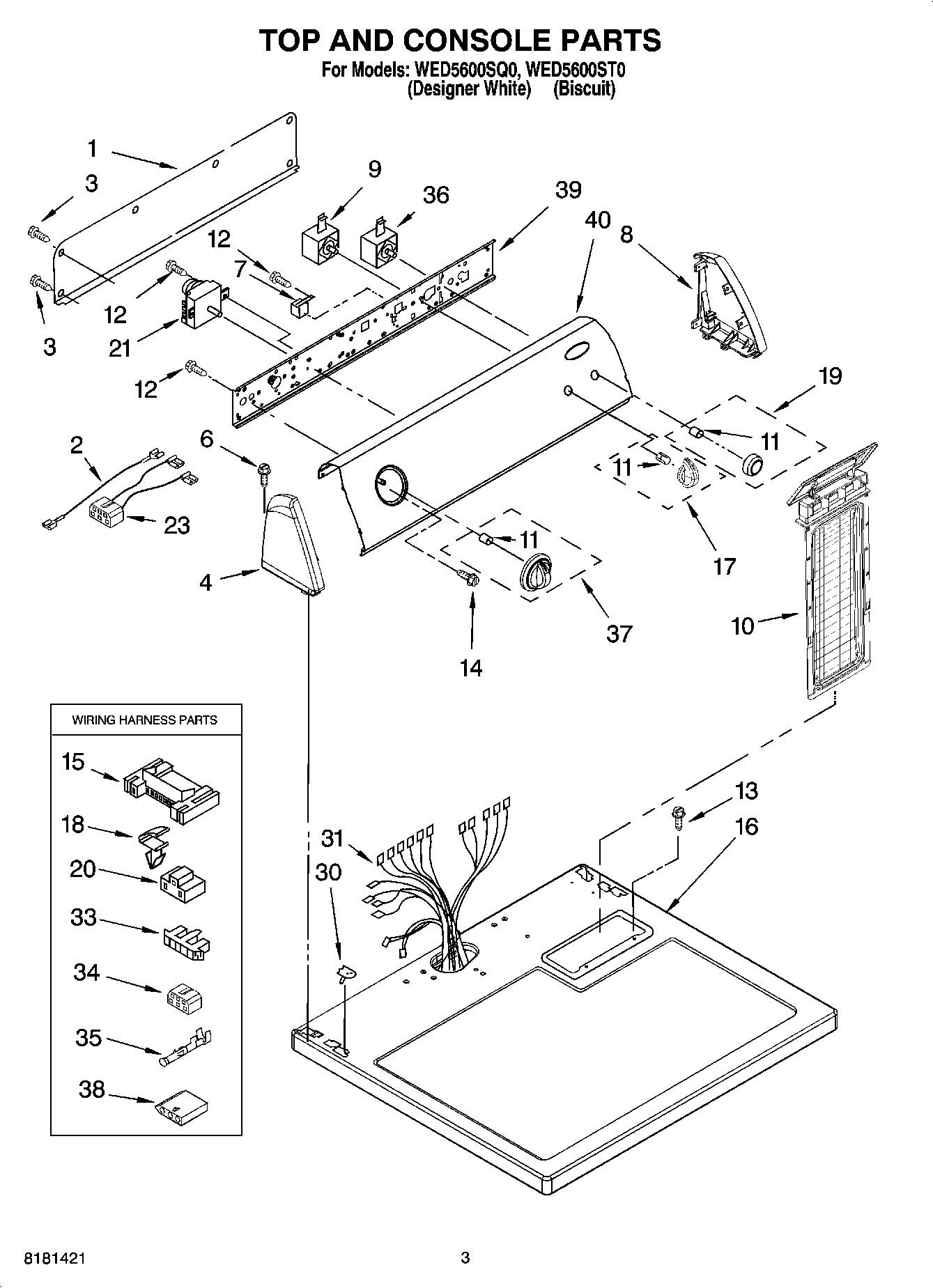

WED5600SQ0 02 – TOP AND CONSOLE PARTS

Products

Position	Product
1	W10103406 Whirlpool Rear Panel
2	Wire, Jumper (Black)
3	WP693995 Whirlpool Screw
4	Cap, End (L.H.) (BIscuit)
6	WP388326 Whirlpool Screw
7	WP694419 Whirlpool Buzzer Adjuster
8	WPL 8271362
8	W10820038 Whirlpool Endcap
9	WP3399640 Whirlpool Switch
10	Screen, Lint (Biscuit)
10	WPW10717210 Whirlpool Dryer Lint Screen Filter
11	WP8536939 Whirlpool Spring Clip
12	WP90767 Whirlpool Screw
13	W11693756 Whirlpool Screw Assembly
14	3400859 Whirlpool Screw
15	3395683 Whirlpool Connector
16	Top
16	Top
17	Knob, Control
17	Knob, Control (B
18	WP3394427 Whirlpool Clip
19	WP8566073 Whirlpool Appliance Knob
19	8566076 Whirlpool Knob Assembly
20	3401144 Whirlpool Connector
21	WP3979617 Whirlpool Timer
23	8539893 Whirlpool Wire Harness
30	WP357213 Whirlpool Hinge Stopper
31	Harness, Wiring
33	Connector, Timer
34	Block, Disconnect
35	WP94614 Whirlpool Terminal
36	WP3398095 Whirlpool Dryer Start Relay
37	WP8566061 Whirlpool Knob
37	Timer Knob Assembly (Biscuit)
38	3936144 Whirlpool Connector
39	Bracket, Control
40	Panel, Control (White)
40	Panel, Control (Biscuit)
