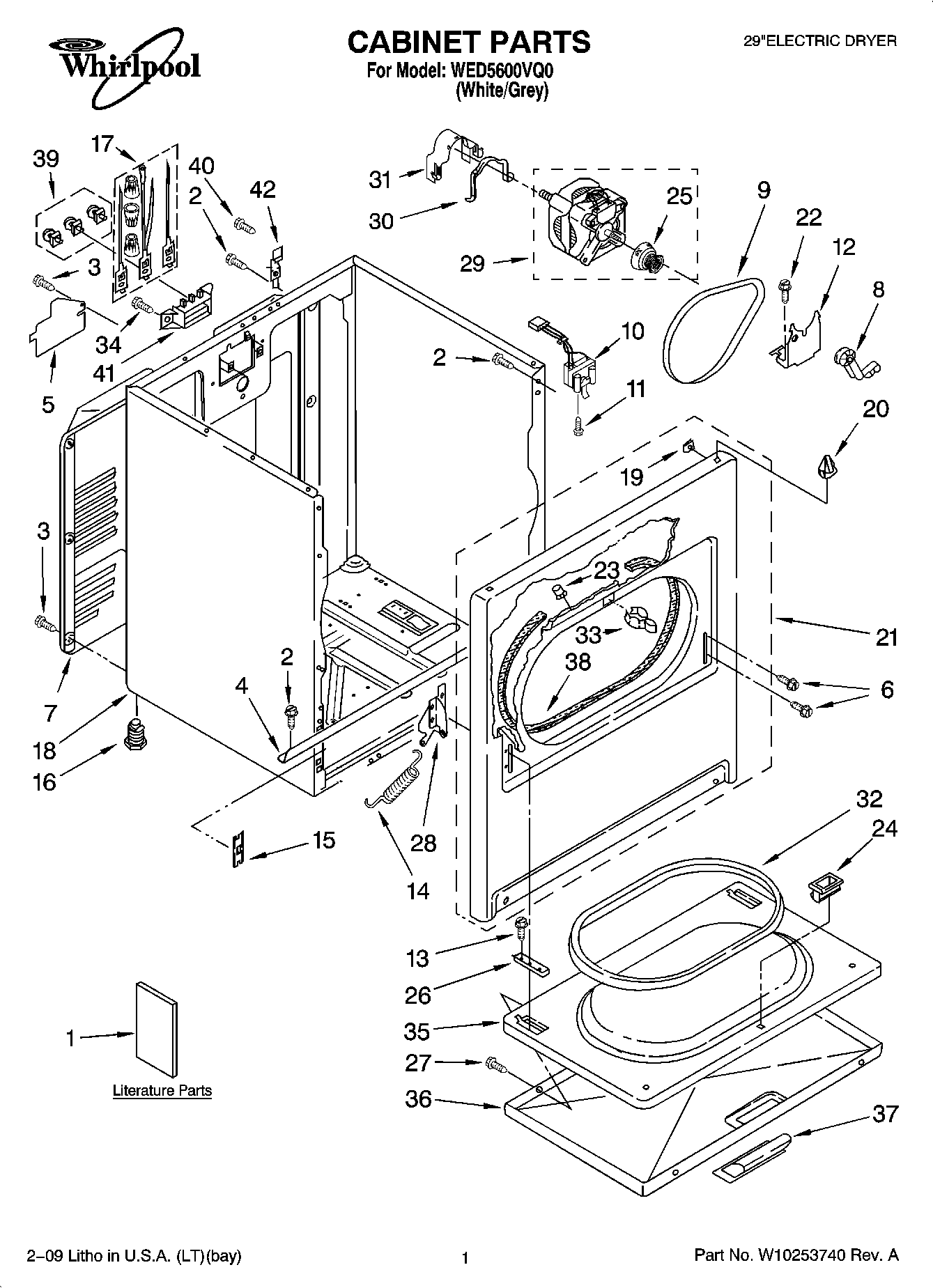

WED5600VQ0 01 – CABINET PARTS

WED5600VQ0 01 – CABINET PARTS

Written by

in

WED5600VQ0 01 – CABINET PARTS

Products

PositionProduct
1Wiring Diagram
1Use & Care Guide
1Instructions, Installation
1Sheet, Cycle Feature
2SCREW
3WP693995 Whirlpool Screw
4Bracket, Cabinet
5W11539855 Whirlpool Refrigerator Pump
6Screw, 10-32 x 1/2
7280043 Whirlpool Rear Panel
8WP691366 Whirlpool Dryer Idler Pulley Assembly
9341241 Whirlpool Dryer Drum Belt
10WP3406107 Whirlpool Dryer Door Switch
11WP3395530 Whirlpool Screw
12WP348780 Whirlpool Base
13WP308685 Whirlpool Microwave Screw
14WPW10041960 Whirlpool Door Spring
15W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
1649621 Whirlpool Leveling Feet
17279318 Whirlpool Terminal
188533643 Whirlpool Dryer White Cabinet
19WP98234 Whirlpool Nut
20WP18776 Whirlpool Lock
21279443 Whirlpool Primary Panel
223400500 Whirlpool Screw
23279220 Whirlpool Clip
24WP3389441 Whirlpool Door Catch
25WP8066184 Whirlpool Dryer Motor Pulley
26W11252547 Whirlpool Clip Assembly
27WP694091 Whirlpool Screw
28WP8066056 Whirlpool Door Hinge
28WP8066057 Whirlpool Door Hinge
29279827 Whirlpool Dryer Drive Motor
30CLAMP
31WP3404162 Whirlpool Clamp
32W10906683 Whirlpool Door Seal
33279570 Whirlpool Dryer Door Latch Kit
35WP695737 Whirlpool Door
36WP3393549 Whirlpool Door Assembly
37W10877261 Whirlpool Handle Assembly
38W11035878 Whirlpool Bearing and Seal
39279393 Whirlpool Terminal Block Screw and Nut Kit
40W10850756 Whirlpool Screw
41WP3397659 Whirlpool Terminal Block
42WP8066217 Whirlpool Hinge
