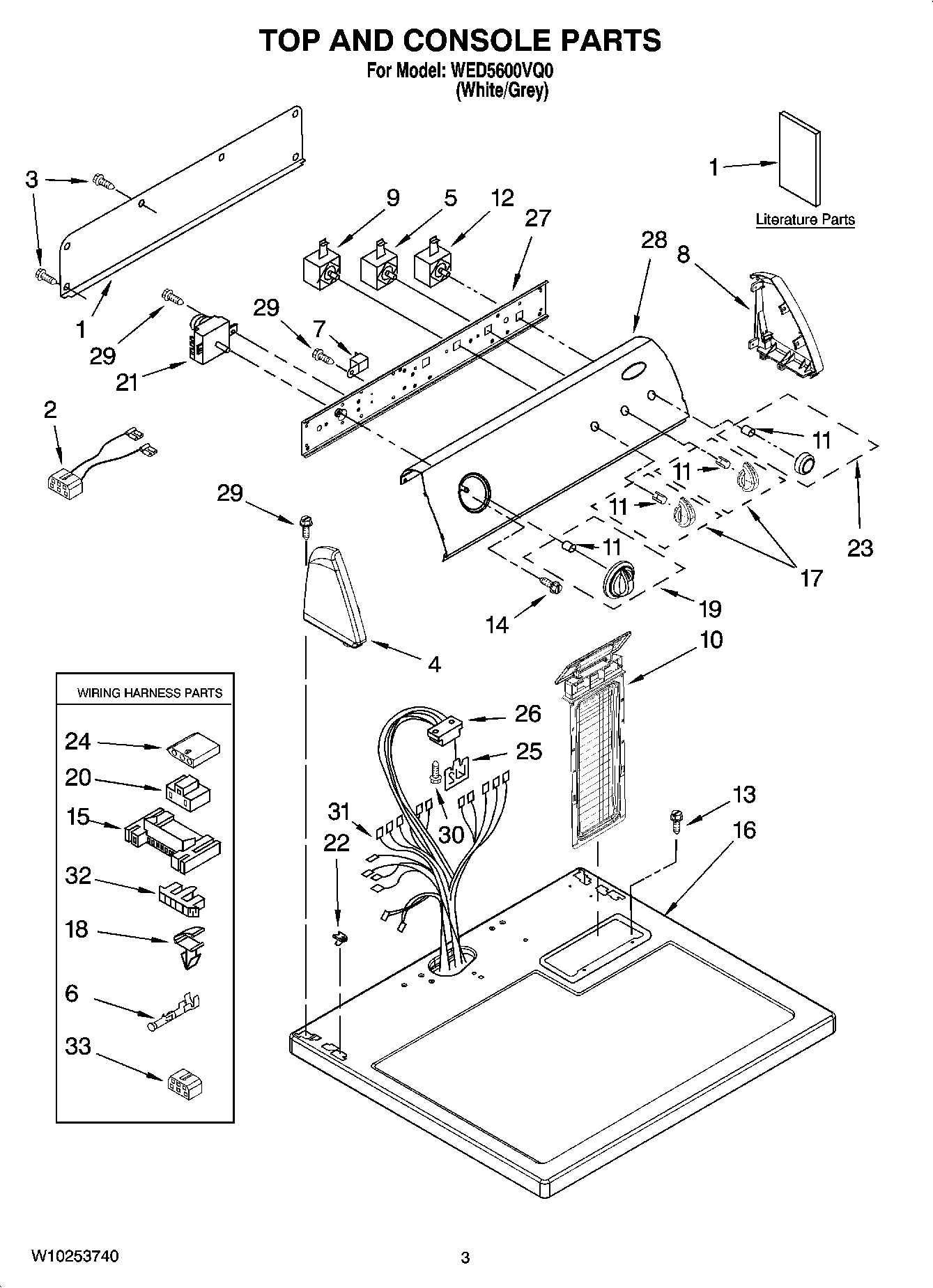

WED5600VQ0 02 – TOP AND CONSOLE PARTS

WED5600VQ0 02 – TOP AND CONSOLE PARTS

Written by

in

WED5600VQ0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1W10103406 Whirlpool Rear Panel
2W10113080 Whirlpool Wire Harness
3WP693995 Whirlpool Screw
5WP3405156 Whirlpool Switch
6WP94614 Whirlpool Terminal
7WP694419 Whirlpool Buzzer Adjuster
8W10820038 Whirlpool Endcap
9WP8578352 Whirlpool Temperature Switch
10WPW10717210 Whirlpool Dryer Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
12WP3398095 Whirlpool Dryer Start Relay
13W11693756 Whirlpool Screw Assembly
143400859 Whirlpool Screw
153395683 Whirlpool Connector
16Top
17Knob, Control
18WP3394427 Whirlpool Clip
19WP8566061 Whirlpool Knob
203401144 Whirlpool Connector
21TIMER
22WP357213 Whirlpool Hinge Stopper
23WP8566073 Whirlpool Appliance Knob
243936144 Whirlpool Connector
25WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
263391885 Whirlpool Connector
27Bracket, Control
28Panel, Control
29WP90767 Whirlpool Screw
30SCREW
31W10071280 Whirlpool Wiring Harness
32Connector, Timer
33Block, Disconnect
