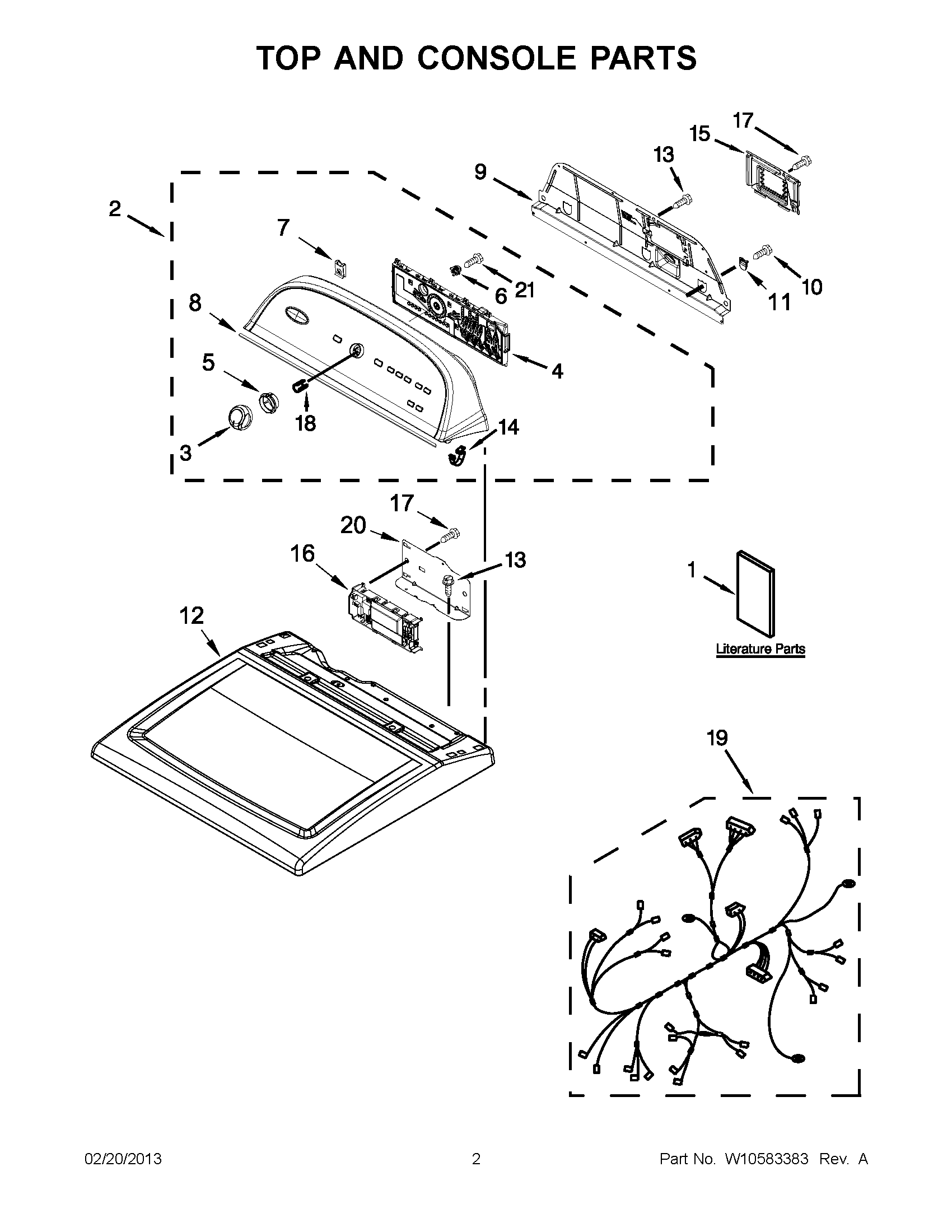

WED5600XW1 01 – TOP AND CONSOLE PART

WED5600XW1 01 – TOP AND CONSOLE PART

Written by

in

WED5600XW1 01 – TOP AND CONSOLE PART

Products

PositionProduct
1INSTALLATION INSTRUCTIONS
1TECH SHEET
1GUIDE, USE & CARE
2WPW10269610 Whirlpool Console
3WPW10251392 Whirlpool Knob
4ASSEMBLY, USER INTERFACE
5W10325119 Whirlpool Spacer
6W10274524 Whirlpool Grommet
7W11213336 Whirlpool Nut
8W10280079 Whirlpool Seal
9W10550615 Whirlpool Rear Panel
11W10279552 Whirlpool Plug
12TOP (WHITE)
13WP488729 Whirlpool Refrigerator Door Screw
14WP8312709 Whirlpool Endcap Clip
15WPW10119283 Whirlpool Terminal Cover
16WPW10317636-includeCORE Whirlpool WPW10317636 Refrigerator Electronic Control Board + Core
17WP90767 Whirlpool Screw
18WP8536939 Whirlpool Spring Clip
19W10253981 Whirlpool Wire Harness
20W10271580 Whirlpool Mount
21W10853898 Whirlpool Screw
