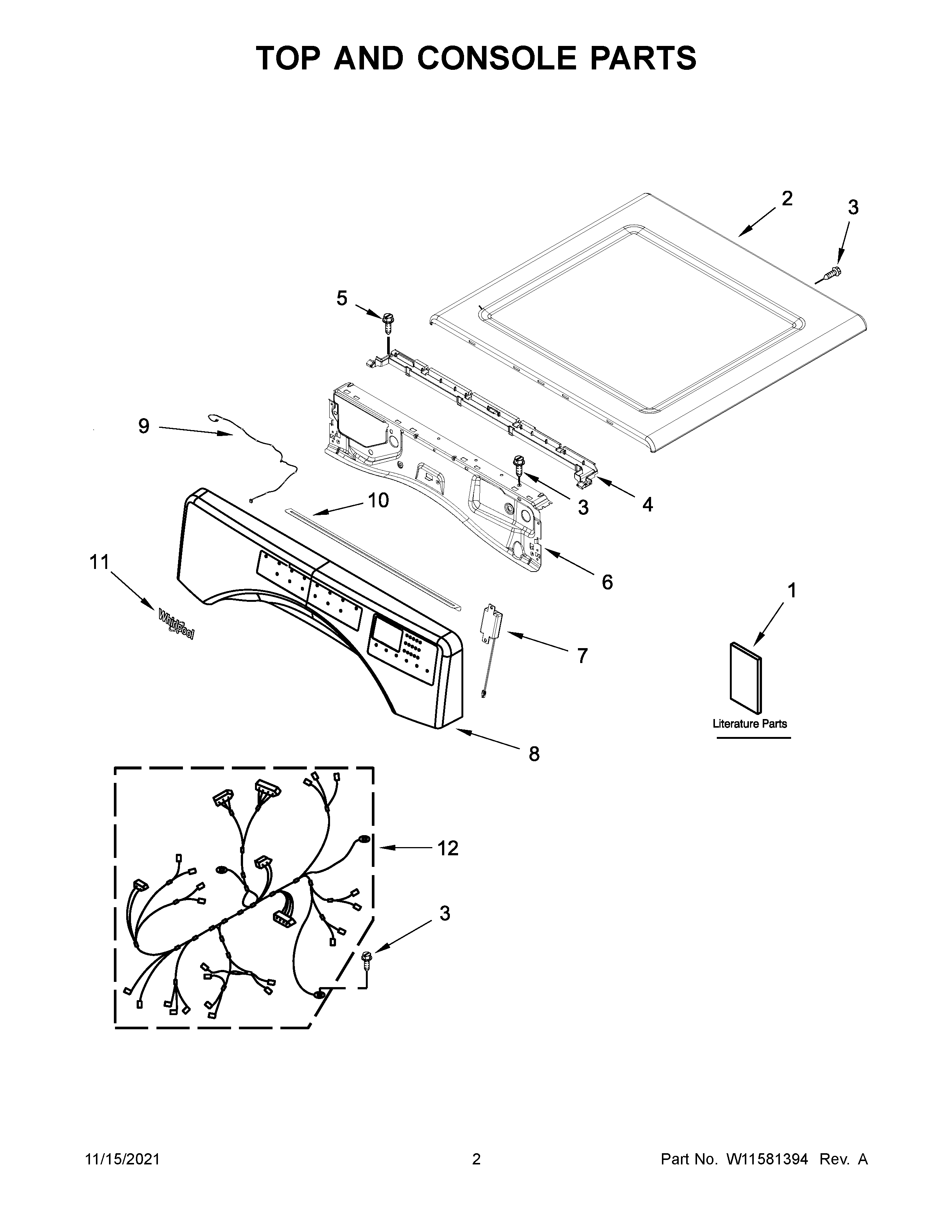

WED5605MW0 02 – TOP AND CONSOLE PARTS

WED5605MW0 02 – TOP AND CONSOLE PARTS

Written by

in

WED5605MW0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1CQUICK START GUIDE
1OWNERS MANUAL
1ATECH SHEET
1BWIRING DIAGRAM
2WPW10208383 Whirlpool Top Panel
3WP488729 Whirlpool Refrigerator Door Screw
4W11310027 Whirlpool Bracket
5W11686675 Whirlpool Screw
6W11480682 Whirlpool Bracket
7W11123146 Whirlpool Speaker
8W11583883-includeCORE Whirlpool W11583883 Washer Electronic Control Board + Core
9W11459337 Whirlpool Wire Harness
10SEAL
11W11223753 Whirlpool Refrigerator Nameplate
12W11310055 Whirlpool Wire Harness
