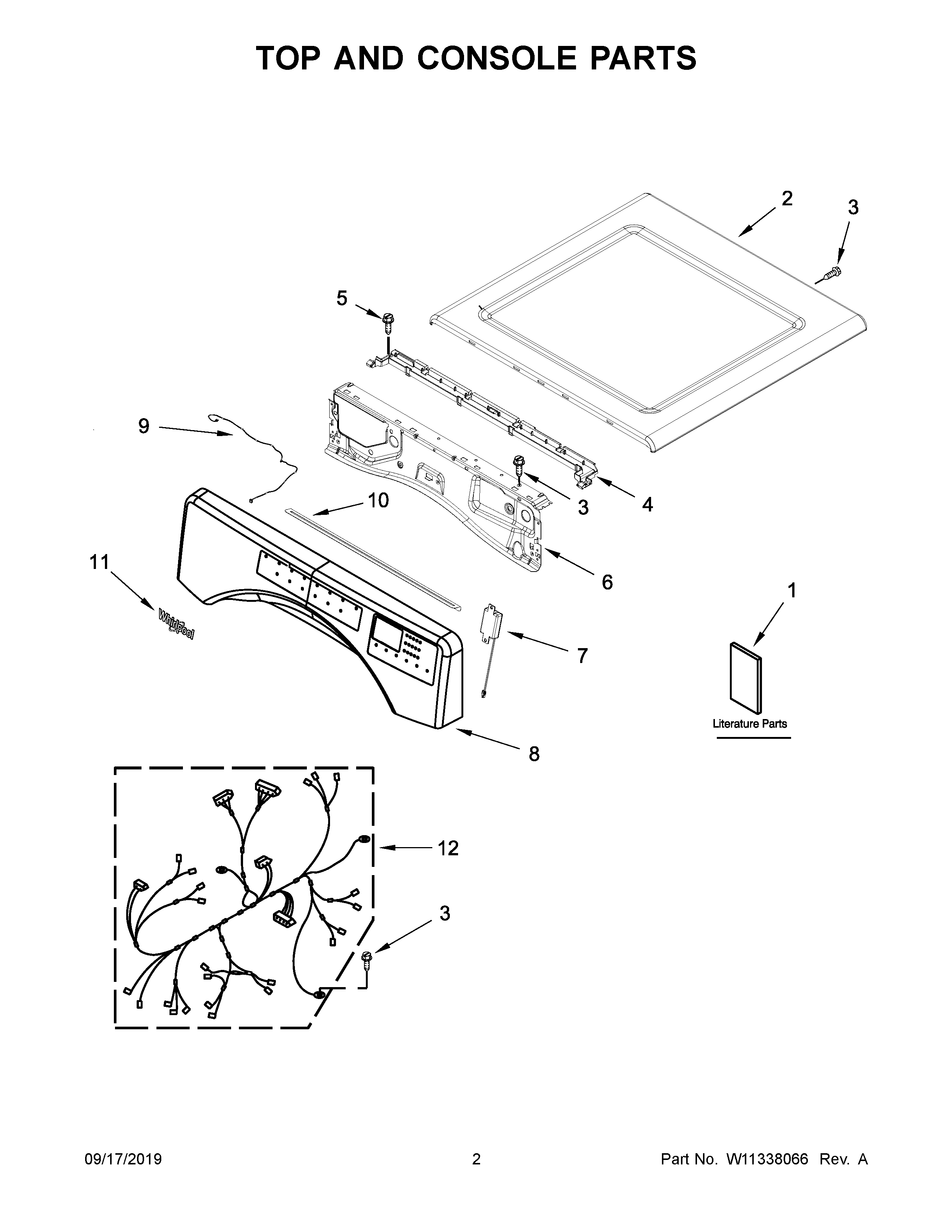

WED5620HW1 02 – TOP AND CONSOLE PARTS

WED5620HW1 02 – TOP AND CONSOLE PARTS

Written by

in

WED5620HW1 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1CWIRING DIAGRAM
1DQUICK START GUIDE
1USE AND CARE GUIDE
1BTECH SHEET
1AINSTALLATION INSTRUCTIONS
2WPW10208383 Whirlpool Top Panel
3WP488729 Whirlpool Refrigerator Door Screw
4W11310027 Whirlpool Bracket
5W11686675 Whirlpool Screw
6W11480682 Whirlpool Bracket
7W11123146 Whirlpool Speaker
8W11378949 Whirlpool Control Board + Core
9W11459337 Whirlpool Wire Harness
10SEAL
11W11223753 Whirlpool Refrigerator Nameplate
12W11310055 Whirlpool Wire Harness
