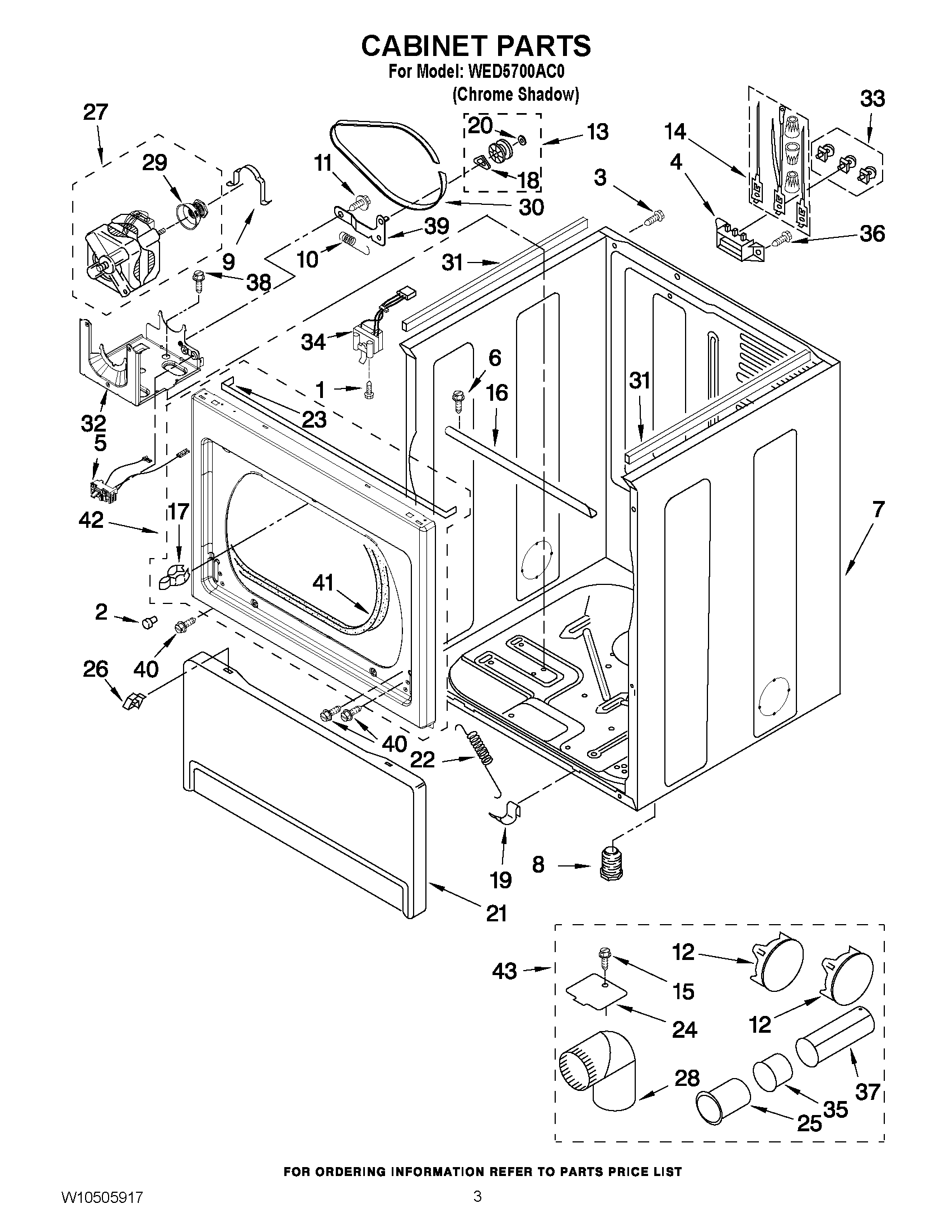

WED5700AC0 02 – CABINET PARTS

Products

Position	Product
NI	W10470674 Whirlpool Dryer Side Vent Exhaust Kit
NI	49621 Whirlpool Leveling Feet
1	WP3395530 Whirlpool Screw
2	693152 Whirlpool Bumper
3	WP90767 Whirlpool Screw
4	WP3397659 Whirlpool Terminal Block
5	W10847984 Whirlpool Switch
6	WP488729 Whirlpool Refrigerator Door Screw
7	CABINET
9	CLAMP
10	WPW10446781 Whirlpool Spring
11	WP3389420 Whirlpool Screw
12	WPW10404617 Whirlpool Plug Assembly
13	279640 Whirlpool Dryer Idler Pulley Kit
14	279318 Whirlpool Terminal
16	W10236068 Whirlpool Bracket
17	279570 Whirlpool Dryer Door Latch Kit
18	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
19	WPW10291934 Whirlpool Clip
20	WPW10121334 Whirlpool Washer
21	WPW10459664 Whirlpool Toe Panel
22	WP3387565 Whirlpool Door Spring
23	W10312811 Whirlpool Seal
24	WPW10354249 Whirlpool Cover
25	WP8563747 Whirlpool Exhaust Pipe
26	WP3388229 Whirlpool Dryer Spring Clip
27	279787 Whirlpool Dryer Drive Motor
28	WPW10416072 Whirlpool Elbow
29	W10837625 Whirlpool Dryer Motor Pulley
30	661570V Whirlpool Dryer Drum Belt
31	W10336128 Whirlpool Seal
32	W11481730 Whirlpool Bracket
33	279393 Whirlpool Terminal Block Screw and Nut Kit
34	WP3406107 Whirlpool Dryer Door Switch
35	WPW10331278 Whirlpool Exhaust Pipe
37	WP8563749 Whirlpool Exhaust Pipe
38	SCREW
39	W10837240 Whirlpool Dryer Idler Pulley
40	WP308685 Whirlpool Microwave Screw
41	WP3387242 Whirlpool Seal
42	WPW10459661 Whirlpool Panel
