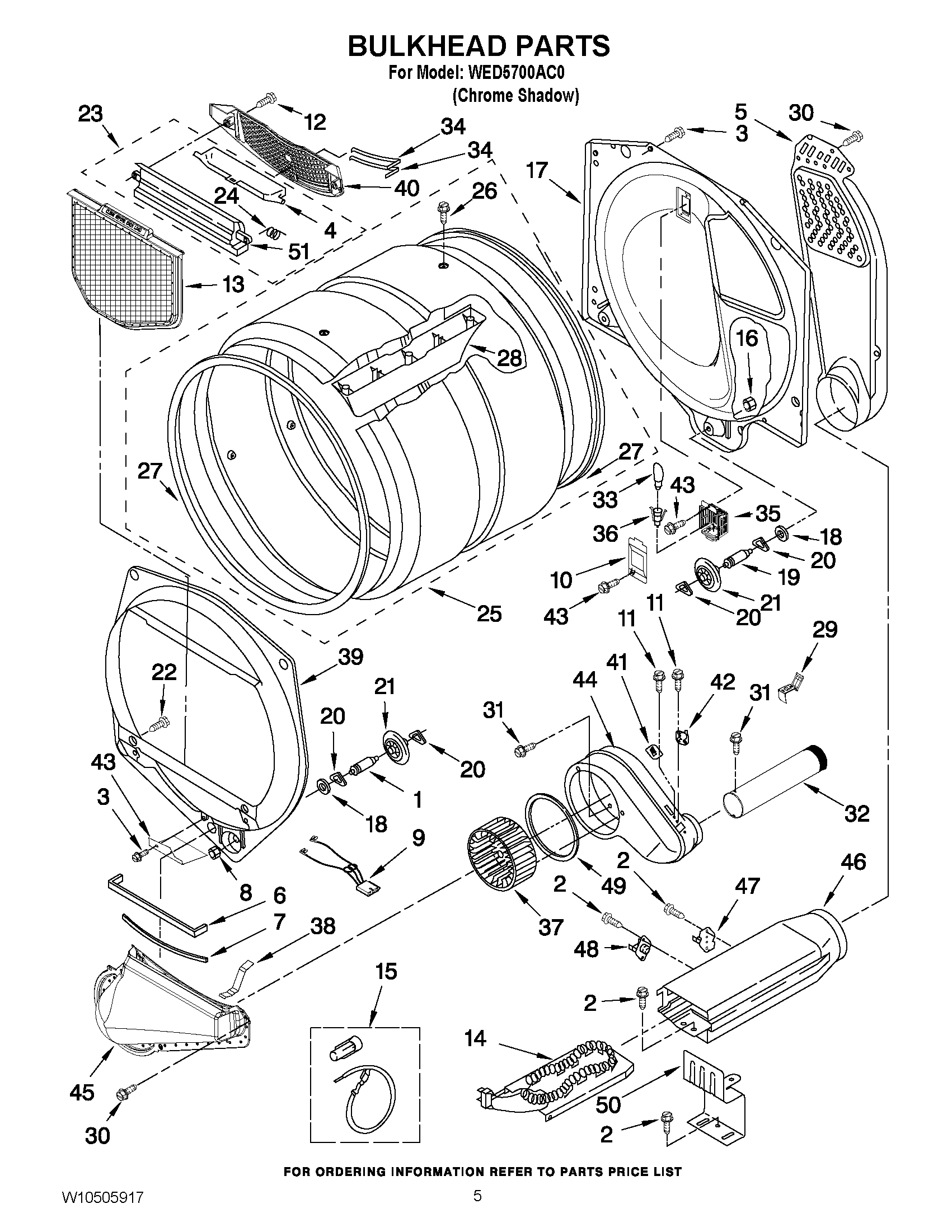

WED5700AC0 03 – BULKHEAD PARTS

WED5700AC0 03 – BULKHEAD PARTS

Written by

in

WED5700AC0 03 – BULKHEAD PARTS

Products

Position	Product
1	SHAFT
2	WP90767 Whirlpool Screw
3	WP488729 Whirlpool Refrigerator Door Screw
4	W11222846 Whirlpool Door
5	WP3387911 Whirlpool Air Duct
6	WP697813 Whirlpool Seal
8	WPW10080210 Whirlpool Nut
9	WPW10298258 Whirlpool Wire Harness
10	W11226088 Whirlpool Lens Assembly
12	WP308685 Whirlpool Microwave Screw
13	W10120998 Whirlpool Dryer Lint Screen Filter
14	WP3387747 Whirlpool Dryer Heating Element
15	279457 Whirlpool Dryer Heating Element Wide Spade Connection
16	WPW10080190 Whirlpool Nut
17	W11299301 Whirlpool Bulkhead Assembly
18	W11236646 Whirlpool Washer Assembly
19	SHAFT
20	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21	WPW10314173 Whirlpool Dryer Drum Support Wheel
23	W11219327 Whirlpool Grille Outlet
24	WP3394986 Whirlpool Spring
25	W10545923 Whirlpool Drum Assembly
26	W10853898 Whirlpool Screw
27	280114 Whirlpool Dryer Drum Seal
28	WPW10113136 Whirlpool Drum Baffle
29	W11684573 Whirlpool Clip Assembly
30	WP693995 Whirlpool Screw
31	WP489463 Whirlpool Refrigerator Screw
32	279936 Whirlpool Exhaust Pipe
33	WP22002263 Whirlpool Dryer 10W Light Bulb
34	WP3387223 Whirlpool Electrode Assembly
35	8578825 Whirlpool Bracket
36	W11222979 Whirlpool Socket
37	WP697772 Whirlpool Dryer Blower Wheel
38	WP8066208 Whirlpool Clip
39	WP697557 Whirlpool Bulkhead Assembly
40	W11086603 Whirlpool Dryer Link Screen Air Grille
41	WP3392519 Whirlpool Dryer Thermal Fuse
42	WP8577274 Whirlpool Dryer Thermistor
43	W11257251 Whirlpool Shield
44	W10888146 Whirlpool Housing
45	WPW10128606 Whirlpool Lint Duct
46	W10802681 Whirlpool Box Assembly
47	279973 Whirlpool Dryer Thermal Cut-Off and High Limit Thermostat Kit
48	THRMST-FIX
49	WP697770 Whirlpool Blower Cover Plate Seal
50	8066099 Whirlpool Bracket
51	W11129408 Whirlpool Out Housing
