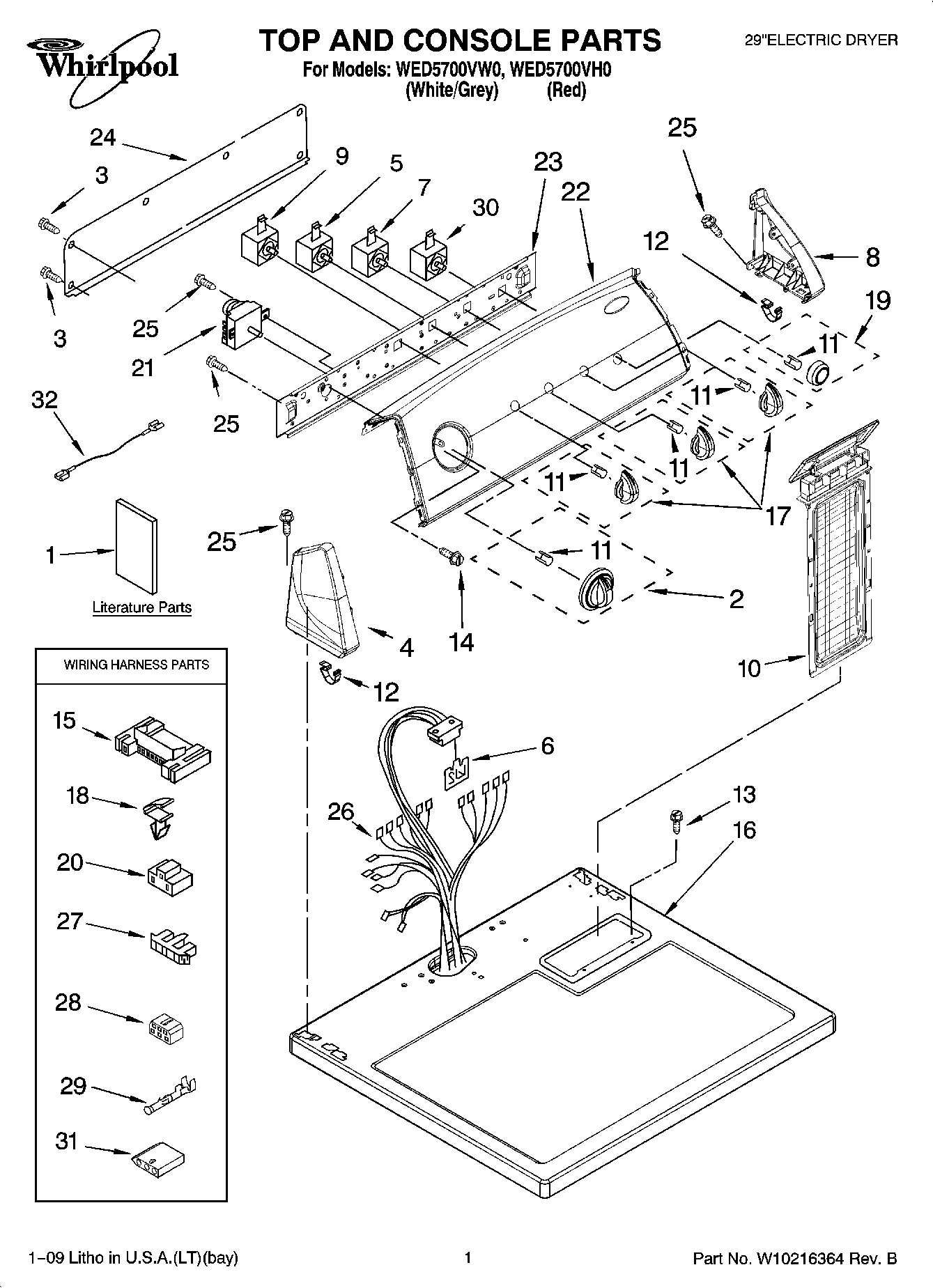

WED5700VH0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1	Use & Care Guide
1	Sheet, Cycle Feature
1	Wiring Diagram
1	Instructions, Installation
2	TIMER KNOB ASSEMBLY
3	WP693995 Whirlpool Screw
4	WP8565957 Whirlpool Endcap Assembly
4	Cap, End (L.H.) (Includes Item 19) (Red)
5	3405154 Whirlpool Primary Switch
6	WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
7	WP3398093 Whirlpool Buzzer Adjuster
8	Cap, End (R.H.) (Includes Item 19) (Red)
8	WP8565954 Whirlpool Endcap
9	8528330 Whirlpool Temperature Control Switch
10	Screen, Lint (Red)
10	WPW10717210 Whirlpool Dryer Lint Screen Filter
11	WP8536939 Whirlpool Spring Clip
12	WP8312709 Whirlpool Endcap Clip
13	W11693756 Whirlpool Screw Assembly
14	3400859 Whirlpool Screw
15	3395683 Whirlpool Connector
16	WP8563663 Whirlpool Top Assembly
16	Top (Red)
17	Knob, Control (3)
18	WP3394427 Whirlpool Clip
19	W10034770 Whirlpool Knob Assembly
20	3401144 Whirlpool Connector
21	WP3406725 Whirlpool Timer
22	Panel, Control
23	8566052 Whirlpool Bracket
24	W10103406 Whirlpool Rear Panel
25	WP90767 Whirlpool Screw
26	8576506 Whirlpool Wire Harness
27	Connector, Timer
28	Block, Disconnect
29	WP94614 Whirlpool Terminal
30	WP3398094 Whirlpool Push To Start Switch
31	3936144 Whirlpool Connector
32	Wire, Jumper (Tan)
