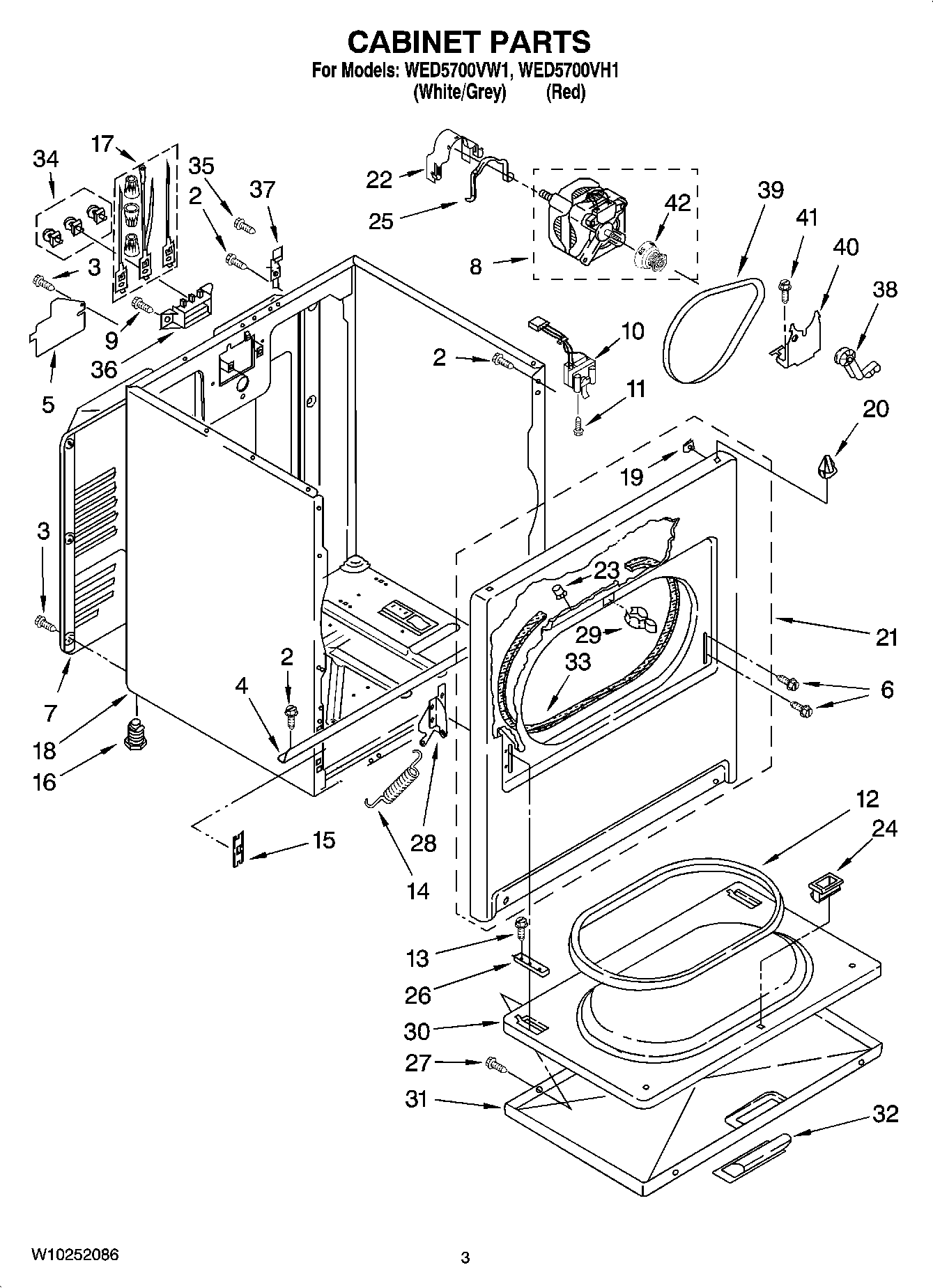

WED5700VW1 02 – CABINET PARTS

Products

Position	Product
2	SCREW
3	WP693995 Whirlpool Screw
4	Bracket, Cabinet
5	W11539855 Whirlpool Refrigerator Pump
6	Screw, 10-32 x 1/2
7	280043 Whirlpool Rear Panel
8	279827 Whirlpool Dryer Drive Motor
10	WP3406107 Whirlpool Dryer Door Switch
11	WP3395530 Whirlpool Screw
12	W10906683 Whirlpool Door Seal
13	WP308685 Whirlpool Microwave Screw
14	WPW10041960 Whirlpool Door Spring
15	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
16	49621 Whirlpool Leveling Feet
17	279318 Whirlpool Terminal
18	8533643 Whirlpool Dryer White Cabinet
18	Cabinet (Includes Illus. 4) (Red)
19	WP98234 Whirlpool Nut
20	WP18776 Whirlpool Lock
21	Panel, Front (Red)
21	279443 Whirlpool Primary Panel
22	WP3404162 Whirlpool Clamp
23	279220 Whirlpool Clip
24	WP3389441 Whirlpool Door Catch
25	CLAMP
26	W11252547 Whirlpool Clip Assembly
27	WP694091 Whirlpool Screw
28	WP8066057 Whirlpool Door Hinge
28	WP8066056 Whirlpool Door Hinge
29	279570 Whirlpool Dryer Door Latch Kit
30	WP695737 Whirlpool Door
31	WP3393549 Whirlpool Door Assembly
31	Door, Front (Red)
32	W10877261 Whirlpool Handle Assembly
32	Handle, Door (Red)
33	W11035878 Whirlpool Bearing and Seal
34	279393 Whirlpool Terminal Block Screw and Nut Kit
35	W10850756 Whirlpool Screw
36	WP3397659 Whirlpool Terminal Block
37	WP8066217 Whirlpool Hinge
38	WP691366 Whirlpool Dryer Idler Pulley Assembly
39	341241 Whirlpool Dryer Drum Belt
40	WP348780 Whirlpool Base
41	3400500 Whirlpool Screw
42	WP8066184 Whirlpool Dryer Motor Pulley
