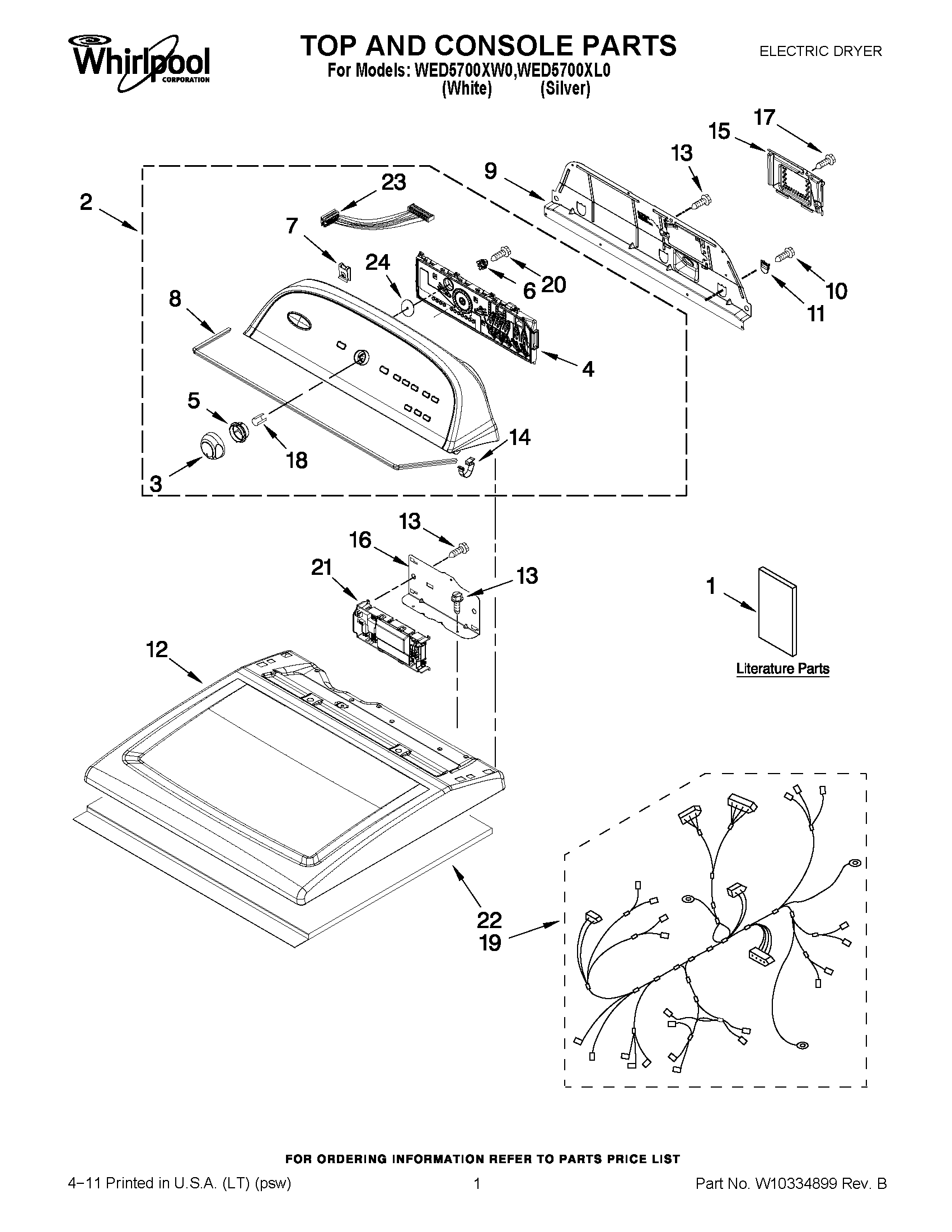

WED5700XW0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1GUIDE, USE & CARE
1INSTALLATION INSTRUCTIONS
1TECH SHEET
2CONSOLE ASSEMBLY (COMPLETE) (WHITE)
2CONSOLE ASSEMBLY (COMPLETE) (SILVER)
3WPW10251392 Whirlpool Knob
4ASSEMBLY, USER INTERFACE
5W10325119 Whirlpool Spacer
6W10274524 Whirlpool Grommet
7W11213336 Whirlpool Nut
8W10280079 Whirlpool Seal
9W10096969 Whirlpool Rear Panel
10WP693995 Whirlpool Screw
11W10279552 Whirlpool Plug
12TOP (WHITE)
12TOP (SILVER)
13WP488729 Whirlpool Refrigerator Door Screw
14WP8312709 Whirlpool Endcap Clip
15WPW10119283 Whirlpool Terminal Cover
16W10271580 Whirlpool Mount
17WP90767 Whirlpool Screw
18WP8536939 Whirlpool Spring Clip
19W10287252 Whirlpool Wire Harness
20W10853898 Whirlpool Screw
21WPW10214008-includeCORE Whirlpool WPW10214008 Washer Electronic Control Board + Core
22W10123956 Whirlpool Sound Absorber
23CABLE, USER INTERFACE
24W10323092 Whirlpool Seal
