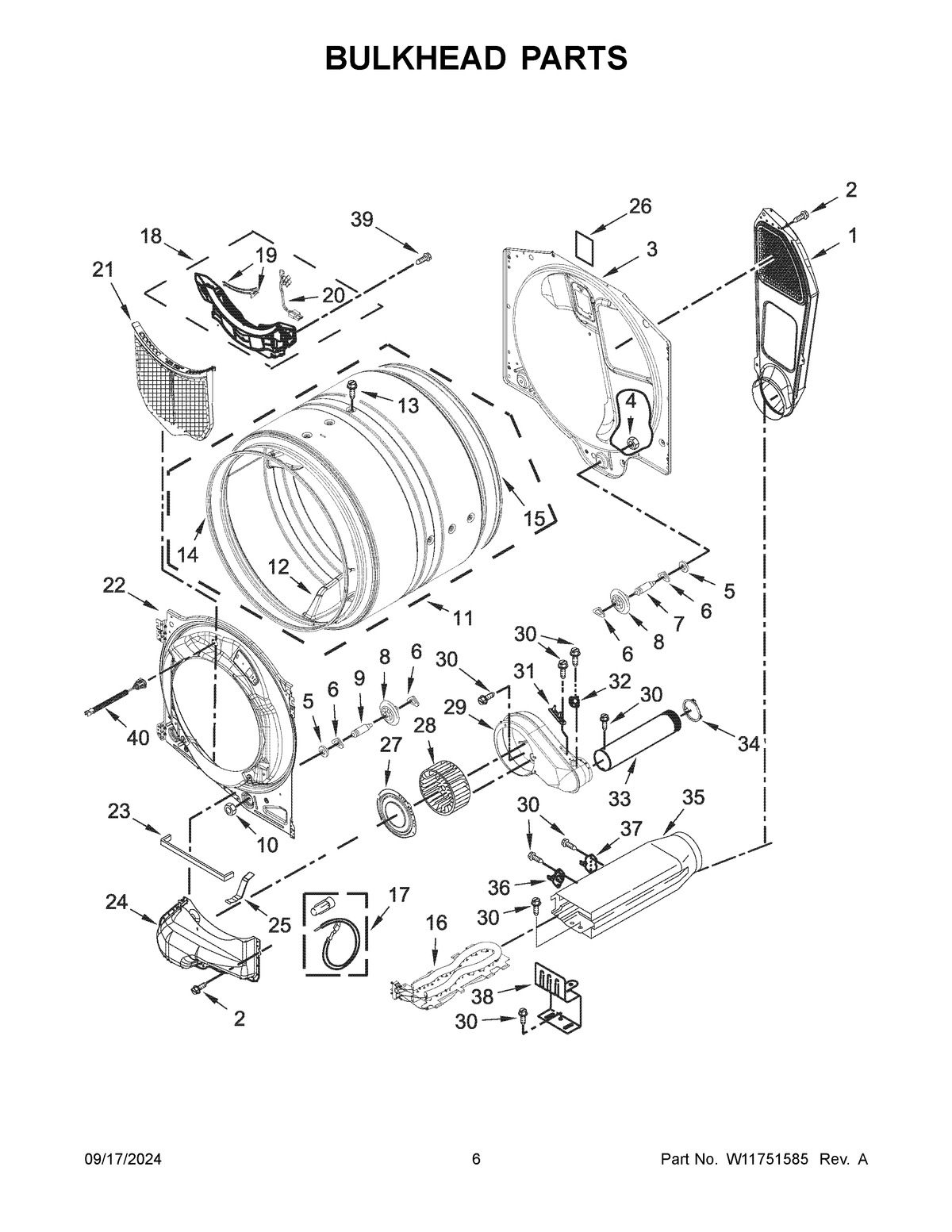

WED5720RU0 04 – BULKHEAD PARTS

WED5720RU0 04 – BULKHEAD PARTS

Products

PositionProduct
1W11677720 Whirlpool Air Duct
2WP488729 Whirlpool Refrigerator Door Screw
3W11299300 Whirlpool Bulkhead Assembly
4WPW10080190 Whirlpool Nut
5W11236646 Whirlpool Washer Assembly
6WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
7SHAFT
8WPW10314173 Whirlpool Dryer Drum Support Wheel
9SHAFT
10WPW10080210 Whirlpool Nut
11W10508188 Whirlpool Drum
12W10416098 Whirlpool Baffle Assembly
13W10853898 Whirlpool Screw
14W11193479 Whirlpool Seal
15280114 Whirlpool Dryer Drum Seal
16WP3387747 Whirlpool Dryer Heating Element
17279457 Whirlpool Dryer Heating Element Wide Spade Connection
18HOUSNG-DRYER LINT
19WP3387223 Whirlpool Electrode Assembly
20WPW10298258 Whirlpool Wire Harness
21SCREEN - LINT. ALPHA W/FELT
22W10673491 Whirlpool Bulkhead Assembly
23W11676493 Whirlpool Seal Assembly
24WPW10211896 Whirlpool Duct Lint
25W10414388 Whirlpool Clip
26W11409002 Whirlpool Pad
27W11688571 Whirlpool Collar
28WP697772 Whirlpool Dryer Blower Wheel
29WPW10211911 Whirlpool Housing
30WP693995 Whirlpool Screw
31FUSE-THRML
32WP8577274 Whirlpool Dryer Thermistor
33WPW10342188 Whirlpool Exhaust Pipe
34WPW10344699 Whirlpool Collar
35W10802681 Whirlpool Box Assembly
36WP8557403 Whirlpool Thermostat
37280148 Whirlpool Dryer Thermal Cut-Off Fuse Kit
388066099 Whirlpool Bracket
39WP3387230 Whirlpool Screw
40W11310048 Whirlpool Light
