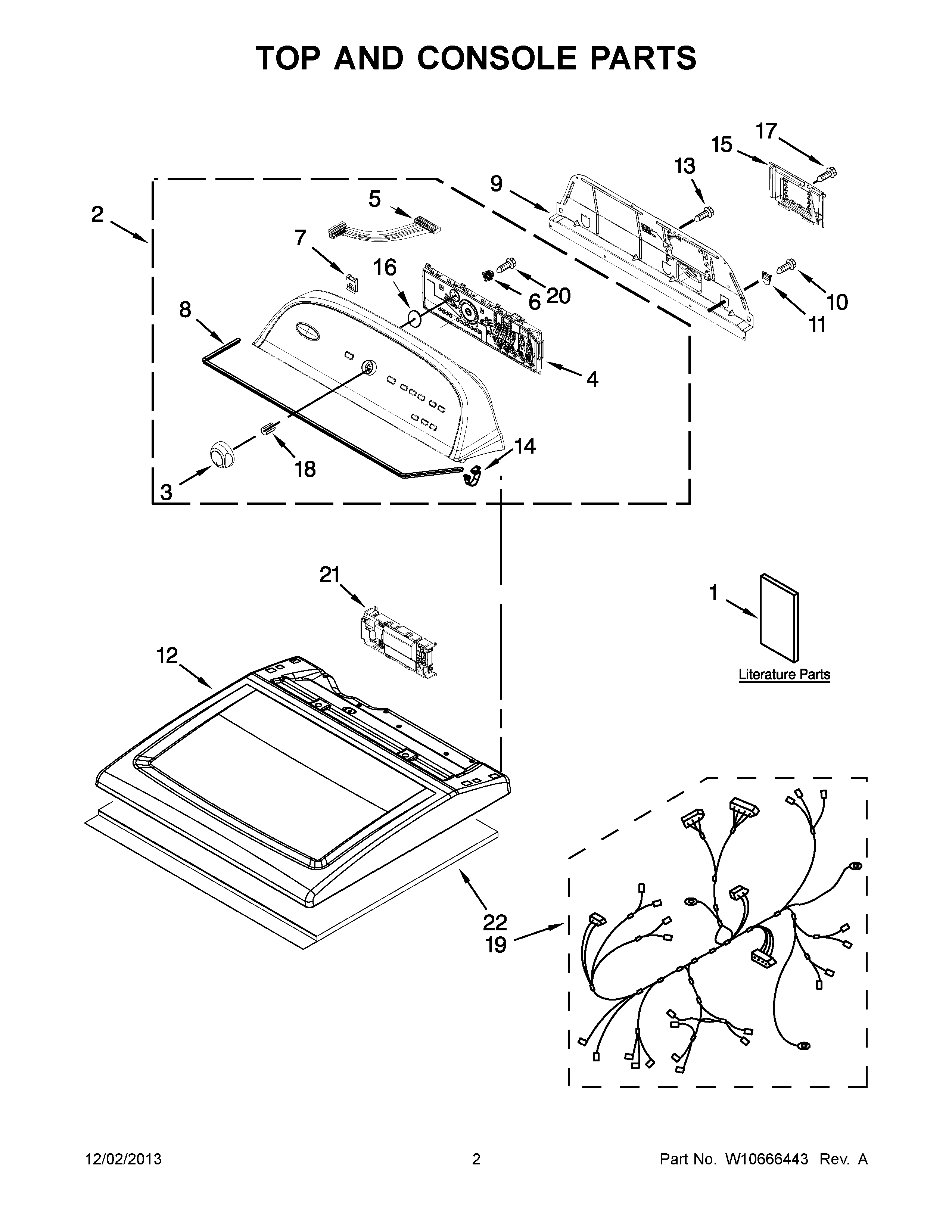

WED5810BW0 02 – TOP AND CONSOLE PARTS

WED5810BW0 02 – TOP AND CONSOLE PARTS

Written by

in

WED5810BW0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1WIRING DIAGRAM
1INSTALLATION INSTRUCTIONS
1GUIDE, USE AND CARE
1TECH SHEET
2W10562304 Whirlpool Console
3ASSEMBLY, CONTROL KNOB (WHITE)
4ASSEMBLY, USER INTERFACE
5CABLE, USER INTERFACE
6W10274524 Whirlpool Grommet
7W11213336 Whirlpool Nut
8W10280079 Whirlpool Seal
9W10550615 Whirlpool Rear Panel
10WP693995 Whirlpool Screw
11W10279552 Whirlpool Plug
12TOP (WHITE)
13WP488729 Whirlpool Refrigerator Door Screw
14WP8312709 Whirlpool Endcap Clip
15WPW10119283 Whirlpool Terminal Cover
16W10323092 Whirlpool Seal
17WP3390631 Whirlpool Screw
18WP8536939 Whirlpool Spring Clip
19W10287252 Whirlpool Wire Harness
20W10853898 Whirlpool Screw
21WPW10214008-includeCORE Whirlpool WPW10214008 Washer Electronic Control Board + Core
22W10123956 Whirlpool Sound Absorber
