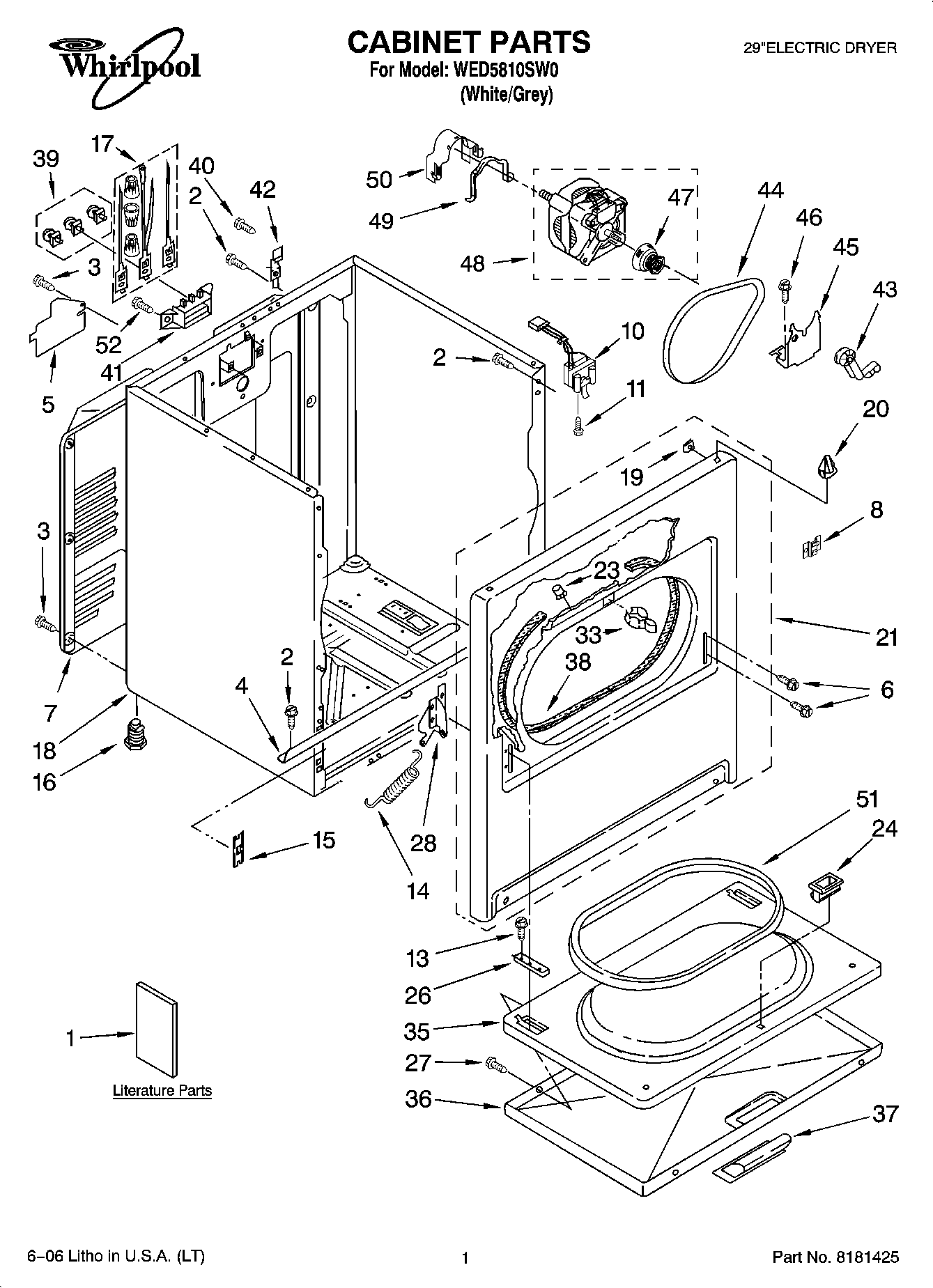

WED5810SW0 01 – CABINET PARTS

WED5810SW0 01 – CABINET PARTS

Written by

in

WED5810SW0 01 – CABINET PARTS

Products

PositionProduct
1Use & Care Guide
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1WPL 677818
1Sheet, Cycle Feature
1Wiring Diagram
1Installation Instructions
2SCREW
3WP693995 Whirlpool Screw
4Bracket, Cabinet
5W11539855 Whirlpool Refrigerator Pump
6Screw, 10-32 x 1/2
7280043 Whirlpool Rear Panel
88546676 Whirlpool Clip
10WP3406107 Whirlpool Dryer Door Switch
11WP3395530 Whirlpool Screw
13WP308685 Whirlpool Microwave Screw
148541401 Whirlpool Door Spring
15W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
1649621 Whirlpool Leveling Feet
17279318 Whirlpool Terminal
188533643 Whirlpool Dryer White Cabinet
19WP98234 Whirlpool Nut
20WP18776 Whirlpool Lock
21279443 Whirlpool Primary Panel
23279220 Whirlpool Clip
24WP3389441 Whirlpool Door Catch
26W11252547 Whirlpool Clip Assembly
27WP694091 Whirlpool Screw
28WP8066056 Whirlpool Door Hinge
28WP8066057 Whirlpool Door Hinge
33279570 Whirlpool Dryer Door Latch Kit
35WP695737 Whirlpool Door
36WP3393549 Whirlpool Door Assembly
37W10877261 Whirlpool Handle Assembly
38W11035878 Whirlpool Bearing and Seal
39279393 Whirlpool Terminal Block Screw and Nut Kit
40W10850756 Whirlpool Screw
41WP3397659 Whirlpool Terminal Block
42WP8066217 Whirlpool Hinge
43WP691366 Whirlpool Dryer Idler Pulley Assembly
44341241 Whirlpool Dryer Drum Belt
45WP348780 Whirlpool Base
463400500 Whirlpool Screw
47WP8066184 Whirlpool Dryer Motor Pulley
48279827 Whirlpool Dryer Drive Motor
49WP660658 Whirlpool Clamp
50WP3404162 Whirlpool Clamp
51W10906683 Whirlpool Door Seal
