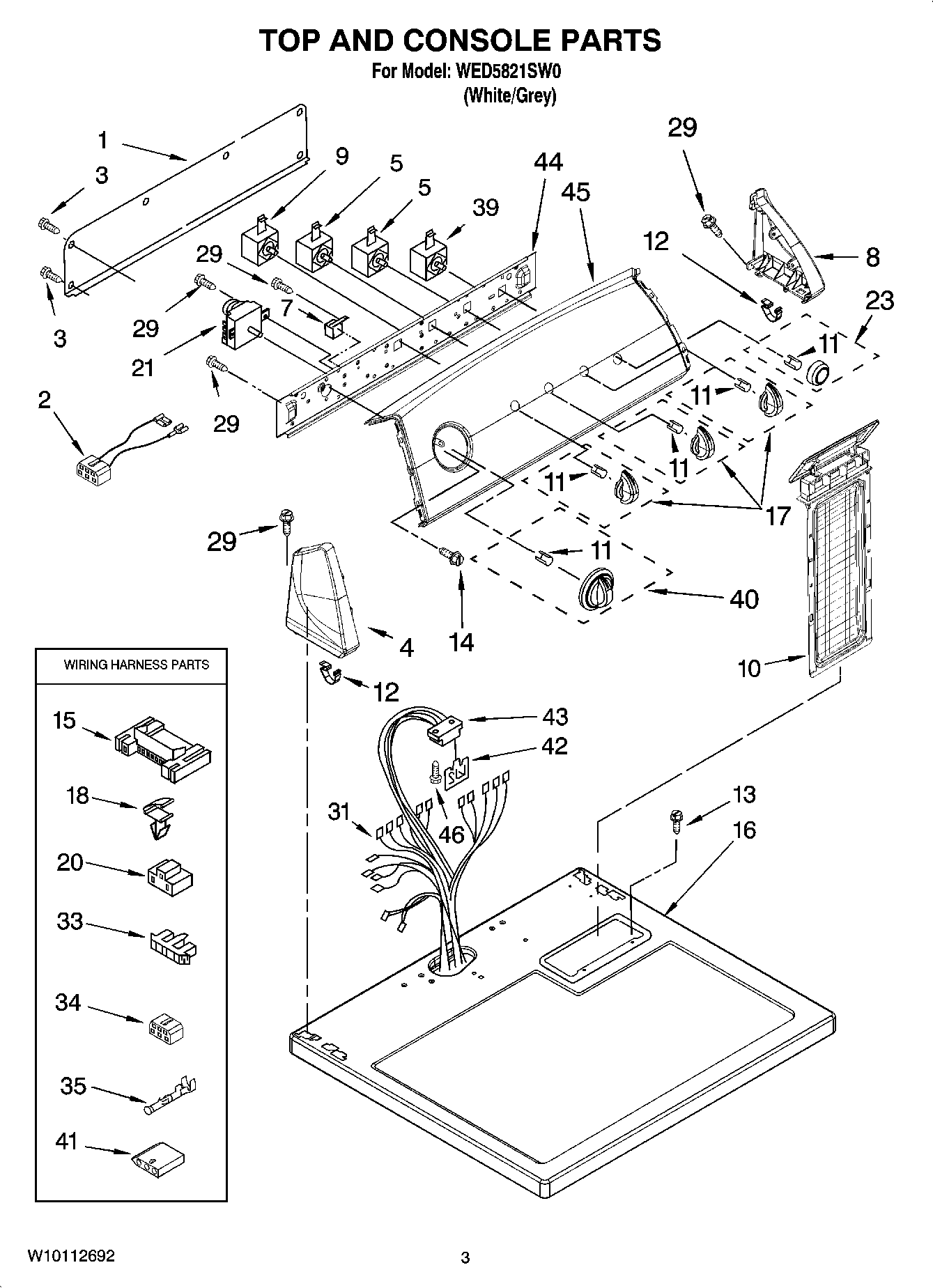

WED5821SW0 02 – TOP AND CONSOLE PARTS

WED5821SW0 02 – TOP AND CONSOLE PARTS

Written by

in

WED5821SW0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1W10103406 Whirlpool Rear Panel
23401695 Whirlpool Wire Harness
3WP693995 Whirlpool Screw
4WP8565957 Whirlpool Endcap Assembly
5WP3405156 Whirlpool Switch
7WP694419 Whirlpool Buzzer Adjuster
8WP8565954 Whirlpool Endcap
9WP8578352 Whirlpool Temperature Switch
10WPW10717210 Whirlpool Dryer Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
12WP8312709 Whirlpool Endcap Clip
13W11693756 Whirlpool Screw Assembly
143400859 Whirlpool Screw
153395683 Whirlpool Connector
16WP8563663 Whirlpool Top Assembly
17Knob, Control (3)
18WP3394427 Whirlpool Clip
203401144 Whirlpool Connector
21TIMER
23W10034770 Whirlpool Knob Assembly
29WP90767 Whirlpool Screw
31W10071280 Whirlpool Wiring Harness
33Connector, Timer
34Block, Disconnect
35WP94614 Whirlpool Terminal
39WP3398094 Whirlpool Push To Start Switch
40TIMER KNOB ASSEMBLY
413936144 Whirlpool Connector
42WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
433391885 Whirlpool Connector
448566052 Whirlpool Bracket
45Panel, Control (Grey)
46SCREW
