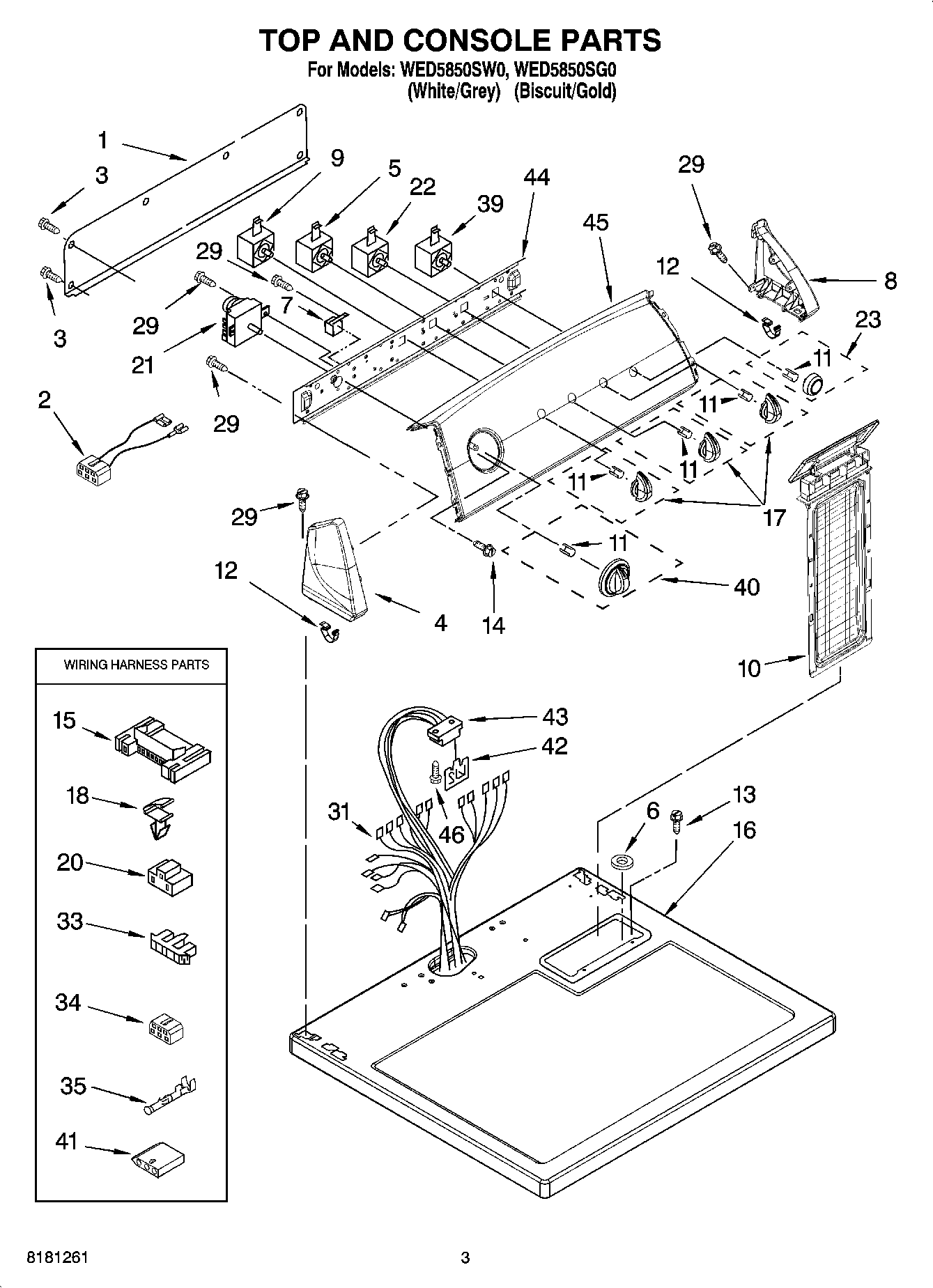

WED5850SG0 02 – TOP AND CONSOLE PARTS

Products

Position	Product
1	W10103406 Whirlpool Rear Panel
2	3401695 Whirlpool Wire Harness
3	WP693995 Whirlpool Screw
4	WP8565957 Whirlpool Endcap Assembly
4	Cap, End (L.H.) (Includes Item 19)
5	3405154 Whirlpool Primary Switch
6	Washer
7	WP694419 Whirlpool Buzzer Adjuster
8	WP8565954 Whirlpool Endcap
8	Cap, End (R.H.) (Includes Item 19)
9	WP8578354 Whirlpool Temperature Switch
10	WPW10717210 Whirlpool Dryer Lint Screen Filter
10	Screen, Lint (Biscuit)
11	WP8536939 Whirlpool Spring Clip
12	WP8312709 Whirlpool Endcap Clip
14	3400859 Whirlpool Screw
15	3395683 Whirlpool Connector
16	TOP
16	Top (Biscuit)
17	Knob, Control (3)
17	Knob, Control
18	WP3394427 Whirlpool Clip
20	3401144 Whirlpool Connector
21	WP3406725 Whirlpool Timer
22	3405152 Whirlpool Switch Assembly
23	Knob, Push-To-Start (Biscuit)
23	W10034770 Whirlpool Knob Assembly
29	WP90767 Whirlpool Screw
31	Harness, Wiring
33	Connector, Timer
34	Block, Disconnect
35	WP94614 Whirlpool Terminal
39	WP3398094 Whirlpool Push To Start Switch
40	TIMER KNOB ASSEMBLY
40	Timer Knob Assembly (Biscuit)
41	3936144 Whirlpool Connector
42	WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
43	3391885 Whirlpool Connector
44	8566052 Whirlpool Bracket
45	Panel, Control
45	Panel, Control (Gold)
46	W11693756 Whirlpool Screw Assembly
