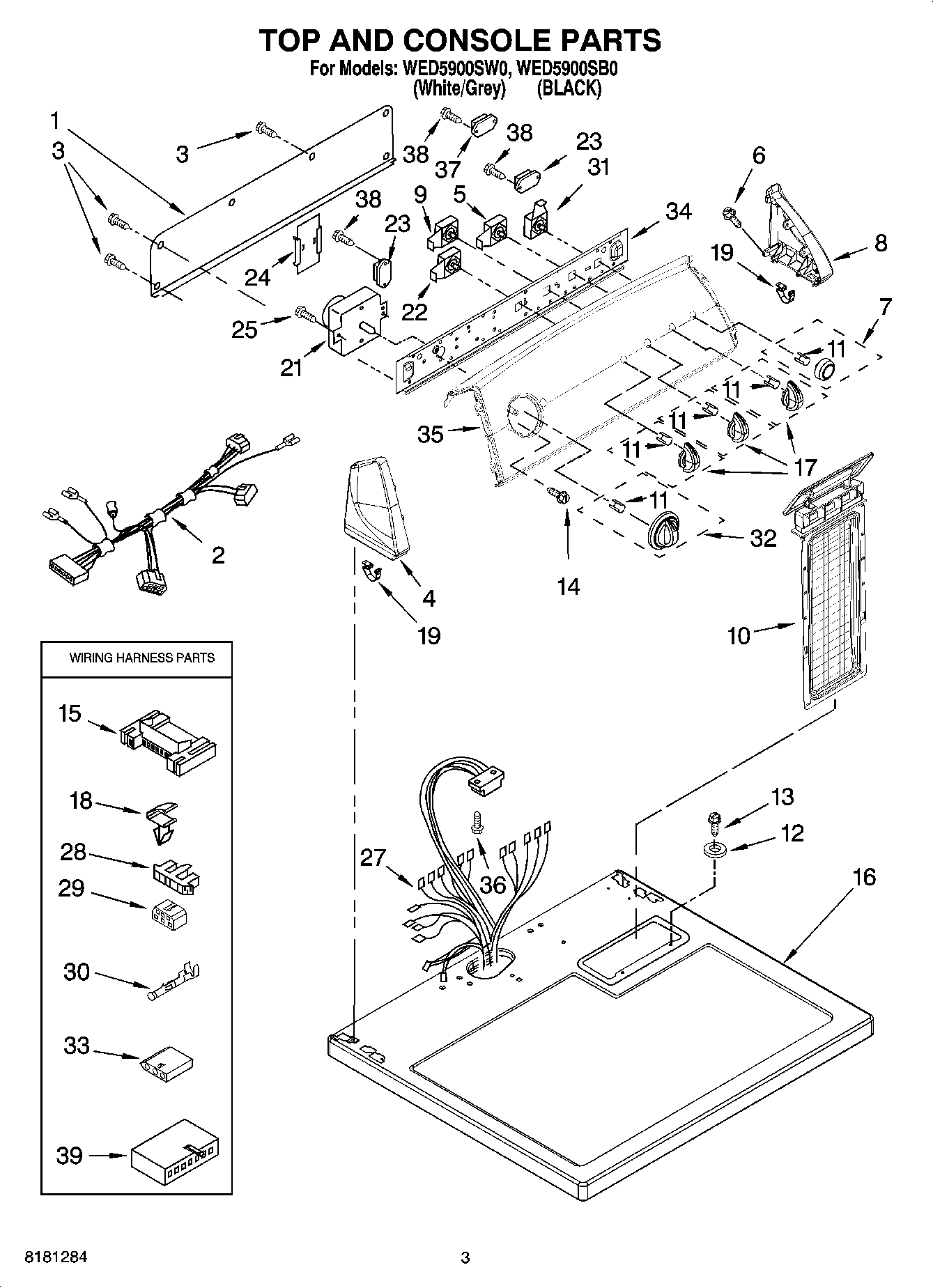

WED5900SW0 02 – TOP AND CONSOLE PARTS

WED5900SW0 02 – TOP AND CONSOLE PARTS

Written by

in

WED5900SW0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1W10103406 Whirlpool Rear Panel
2Harness, Console
3WP693995 Whirlpool Screw
4Cap, End (L.H.) (Black)
4WP8565957 Whirlpool Endcap Assembly
53405151 Whirlpool Switch
6WP388326 Whirlpool Screw
7W10034770 Whirlpool Knob Assembly
8Cap, End (R.H.) (Black)
8WP8565954 Whirlpool Endcap
93405152 Whirlpool Switch Assembly
10WPW10717210 Whirlpool Dryer Lint Screen Filter
10Screen, Lint (Black)
11WP8536939 Whirlpool Spring Clip
12Washer
13W11693756 Whirlpool Screw Assembly
143400859 Whirlpool Screw
153395683 Whirlpool Connector
16Top (Black)
16TOP
17Knob, Control (3)
18WP3394427 Whirlpool Clip
19WP8312709 Whirlpool Endcap Clip
21WP8299771 Whirlpool Timer
228299970 Whirlpool Switch Assembly
23WP3405281 Whirlpool Relay
24Control Board
25WP90767 Whirlpool Screw
27Harness, Wiring
28Connector, Timer
29Block, Disconnect
30WP94614 Whirlpool Terminal
31WP3977456 Whirlpool Start Switch
32TIMER KNOB ASSEMBLY
333936144 Whirlpool Connector
348566052 Whirlpool Bracket
35Panel, Control (Includes Illus. 20) (Silver)
36SCREW
37WP8566493 Whirlpool Relay
38WP3388228 Whirlpool Screw
393936150 Whirlpool Connector
