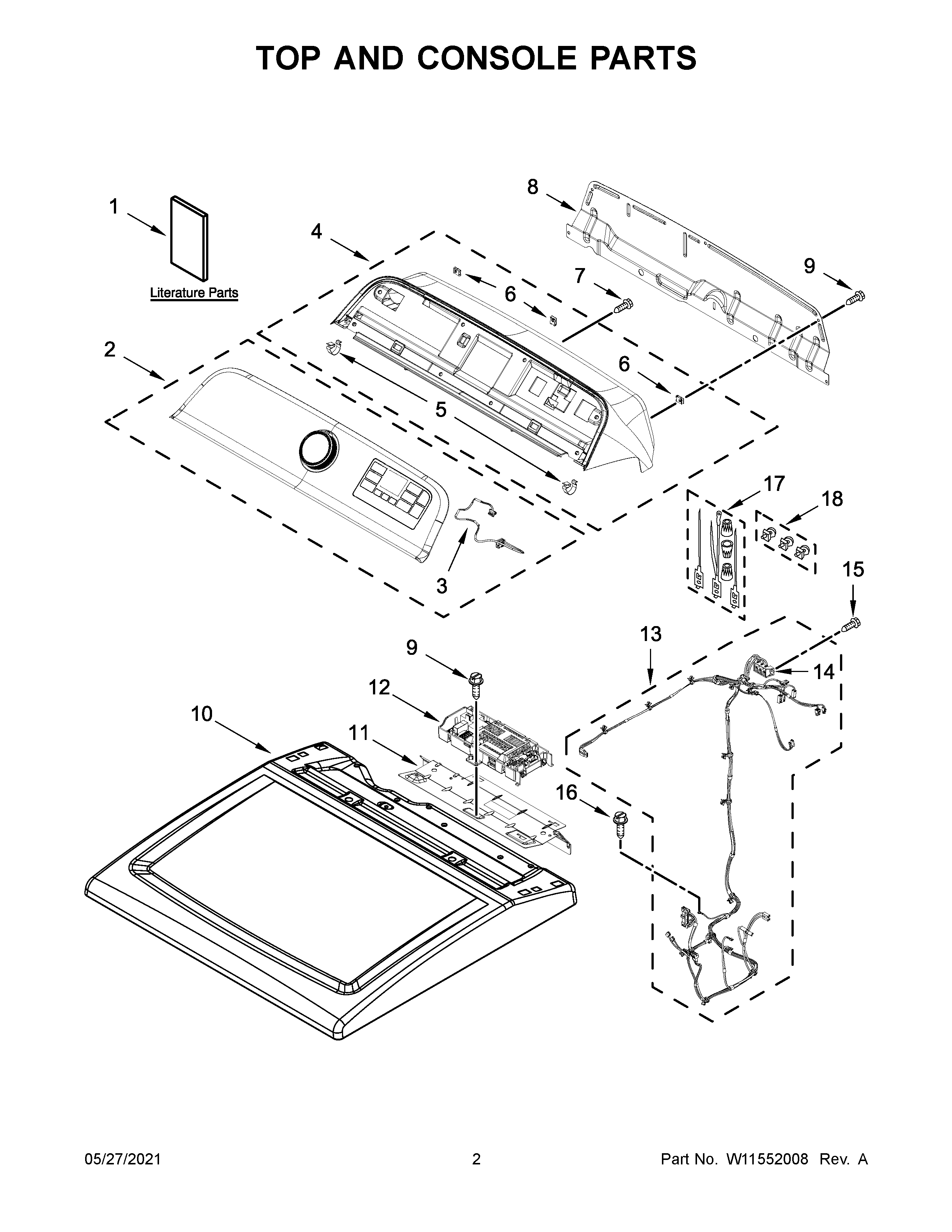

WED6120HW2 02 – TOP AND CONSOLE PARTS

Products

Position	Product
1	INSTALLATION INSTRUCTIONS
1A	QUICK START GUIDE
2	W11419058 Whirlpool Control Panel
3	W11164312 Whirlpool Wire Harness
4	W11401363 Whirlpool Console
4A	W11401366 Whirlpool Console
5	WP8312709 Whirlpool Endcap Clip
6	W11213336 Whirlpool Nut
7	WP9740848 Whirlpool Dishwasher Screw
8	W11433112 Whirlpool Rear Panel
9	WP488729 Whirlpool Refrigerator Door Screw
10A	W11641122 Whirlpool Top
10	TOP (WHITE)
11	W11431865 Whirlpool Bracket
12	W11525997-includeCORE Whirlpool W11525997 Washer Electronic Control Board + Core
13	W11690904 Whirlpool Wire Harness
14	WP3397659 Whirlpool Terminal Block
15	WP308685 Whirlpool Microwave Screw
16	W10850756 Whirlpool Screw
17	279318 Whirlpool Terminal
18	279393 Whirlpool Terminal Block Screw and Nut Kit
