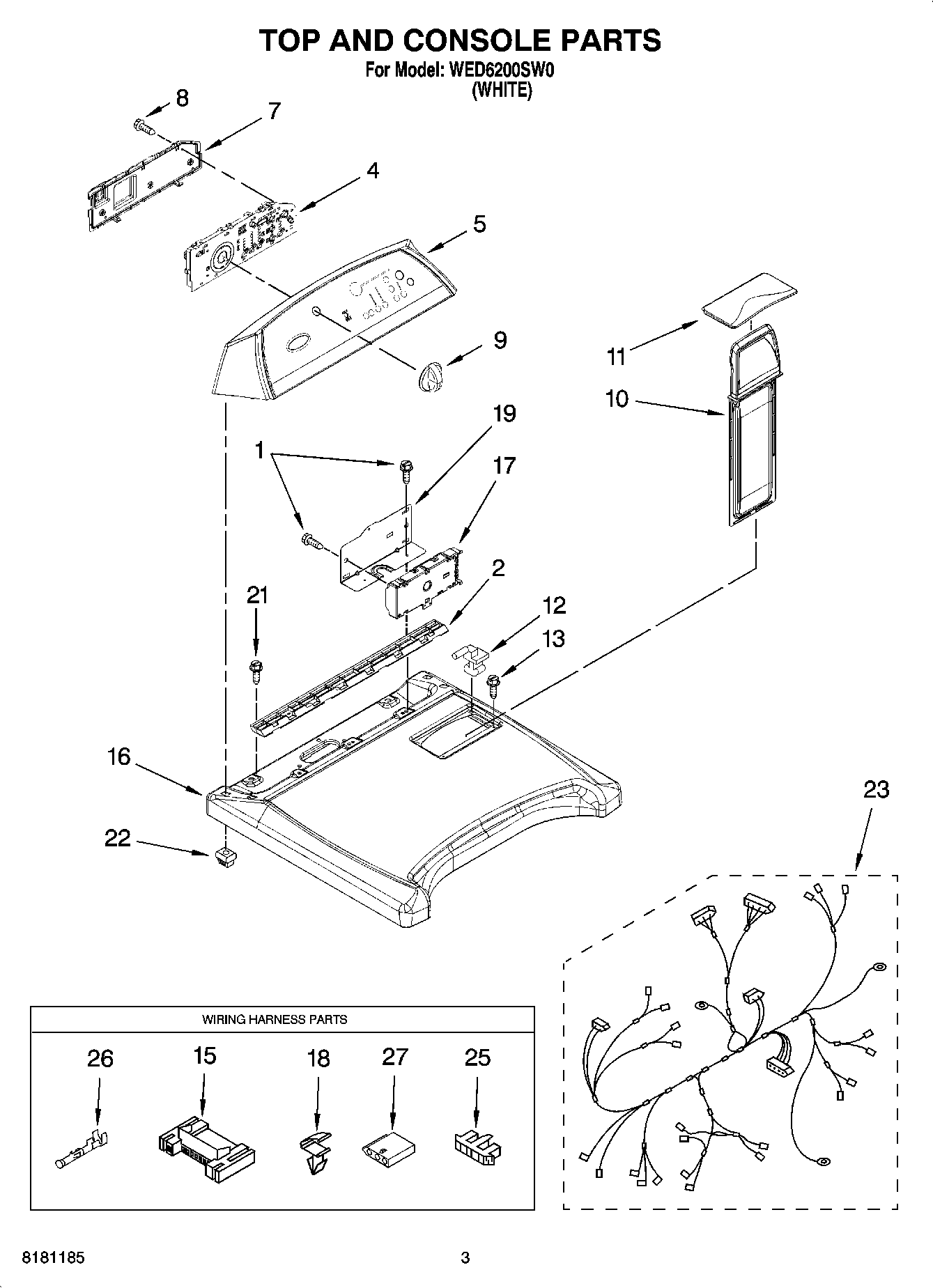

WED6200SW0 02 – TOP AND CONSOLE PARTS

WED6200SW0 02 – TOP AND CONSOLE PARTS

Written by

in

WED6200SW0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1WP90767 Whirlpool Screw
2Bracket, Console
4User Interface
5Panel, Console
78564265 Whirlpool Cover
8WP4449745 Whirlpool Screw
9WP8574957 Whirlpool Knob
10WP8572270 Whirlpool Dryer Lint Trap Filter
11Cover, Lint Screen
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13SCREW
153395683 Whirlpool Connector
16Top (White)
17Control, Electronic
18WP3394427 Whirlpool Clip
19Bracket, Machine Controller
21WP33001882 Whirlpool Screw
22GROMMET
23Harness Wiring
253936144 Whirlpool Connector
26WP94614 Whirlpool Terminal
27Connector, Timer
