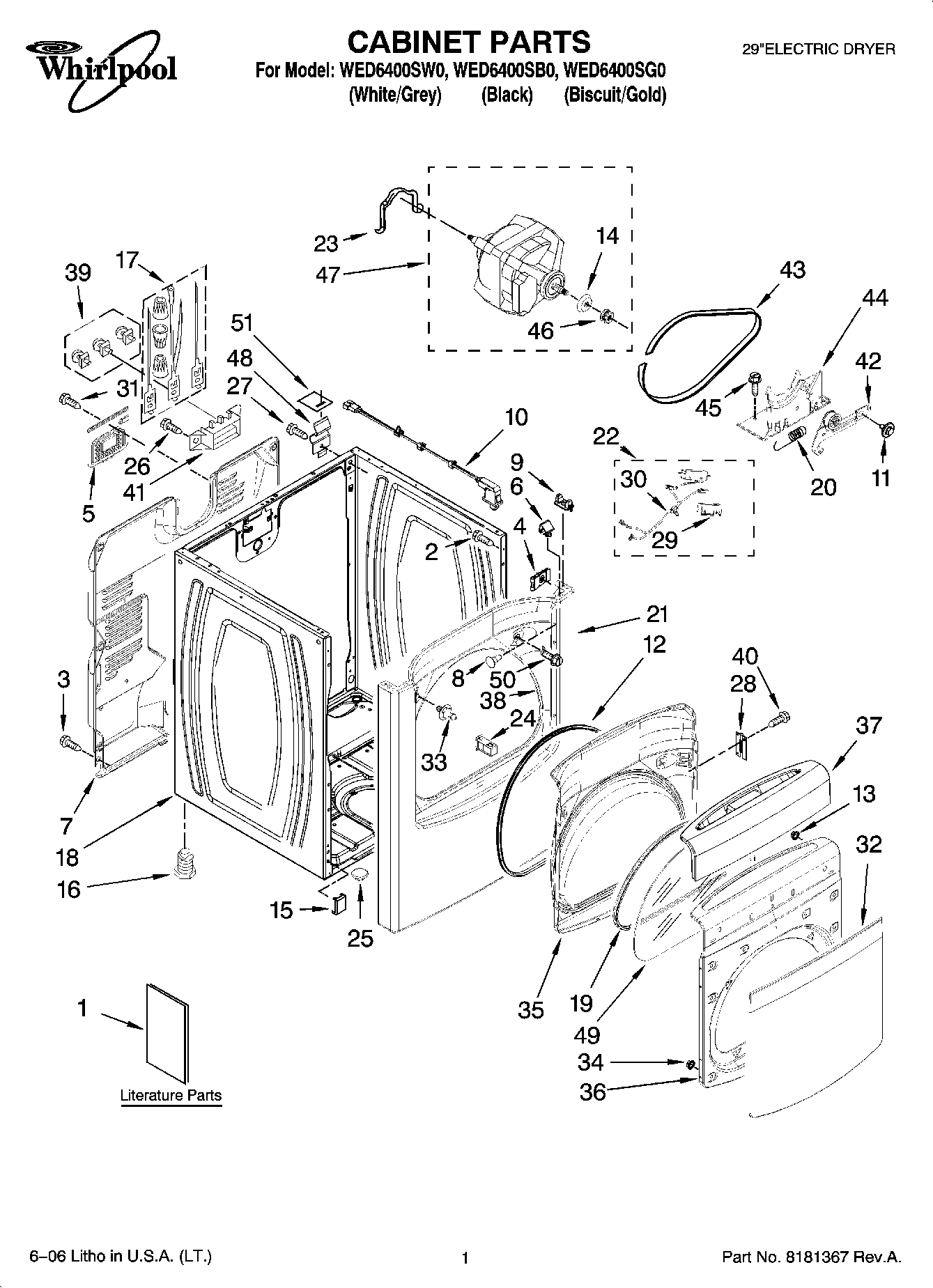

WED6400SW0 01 – CABINET PARTS

WED6400SW0 01 – CABINET PARTS

Written by

in

WED6400SW0 01 – CABINET PARTS

Products

PositionProduct
1Dryer
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1Use & Care Guide
1Tech Sheet
1Guide, Quick Start
2SCREW
3WP693995 Whirlpool Screw
4Clip, Ground (2)
5WPW10110241 Whirlpool Cover Assembly
6WP8576625 Whirlpool Lock
7Panel, Rear
8Plug-Hole (Black)
8WP3404413 Whirlpool Plug
8Plug, Hinge Hole (4) (Biscuit)
9WP8568303 Whirlpool Lock Assembly
10W10702726 Whirlpool Door Switch
11WP3389420 Whirlpool Screw
12W10239307 Whirlpool Door Seal
14Restrainer, Belt
15W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
1649621 Whirlpool Leveling Feet
17279318 Whirlpool Terminal
18Cabinet (Biscuit)
18Cabinet (Black)
18CABINET
19Gasket, Inner Door
20WPW10446781 Whirlpool Spring
21Panel, Front
21Panel, Front (Black)
21Panel, Front (Biscuit)
22WP8566208 Whirlpool Switch Plug
23WP660658 Whirlpool Clamp
24WPW10111905 Whirlpool Dryer Door Catch
258578560 Whirlpool Plug
26WP308685 Whirlpool Microwave Screw
27WP3390631 Whirlpool Screw
28Hinge, Assembly (Black)
28Hinge, Assembly (Biscuit)
28WP8565018 Whirlpool Hinge
298564011 Whirlpool Bracket
30Belt-Switch Jumper
31W10850756 Whirlpool Screw
32Window, Outer Door (Biscuit)
32Window, Outer Door (Black)
32Window, Outer Door
33W10295405 Whirlpool Strike
34WP308499 Whirlpool Nut
35WPL 8575052
35Door Inner
36WPL 8575024
36WPL 8575025
36Door Outer (White)
37WPL 8573848
37Door Handle (White)
37WPL W10050100
38W10044490 Whirlpool Seal Assembly
39279393 Whirlpool Terminal Block Screw and Nut Kit
40WP488627 Whirlpool Refrigerator Screw
41WP3397659 Whirlpool Terminal Block
428547174V Whirlpool Dryer Idler Pulley
43WP8547168 Whirlpool Belt
44WP8547166 Whirlpool Base Assembly
45W10002600 Whirlpool Screw
46WP8066184 Whirlpool Dryer Motor Pulley
47WPW10463866 Whirlpool Drive Motor
48WP8066217 Whirlpool Hinge
49Glass, Inner Door
50Screw, 10-16 x 3/64
5118849 Whirlpool Pad
