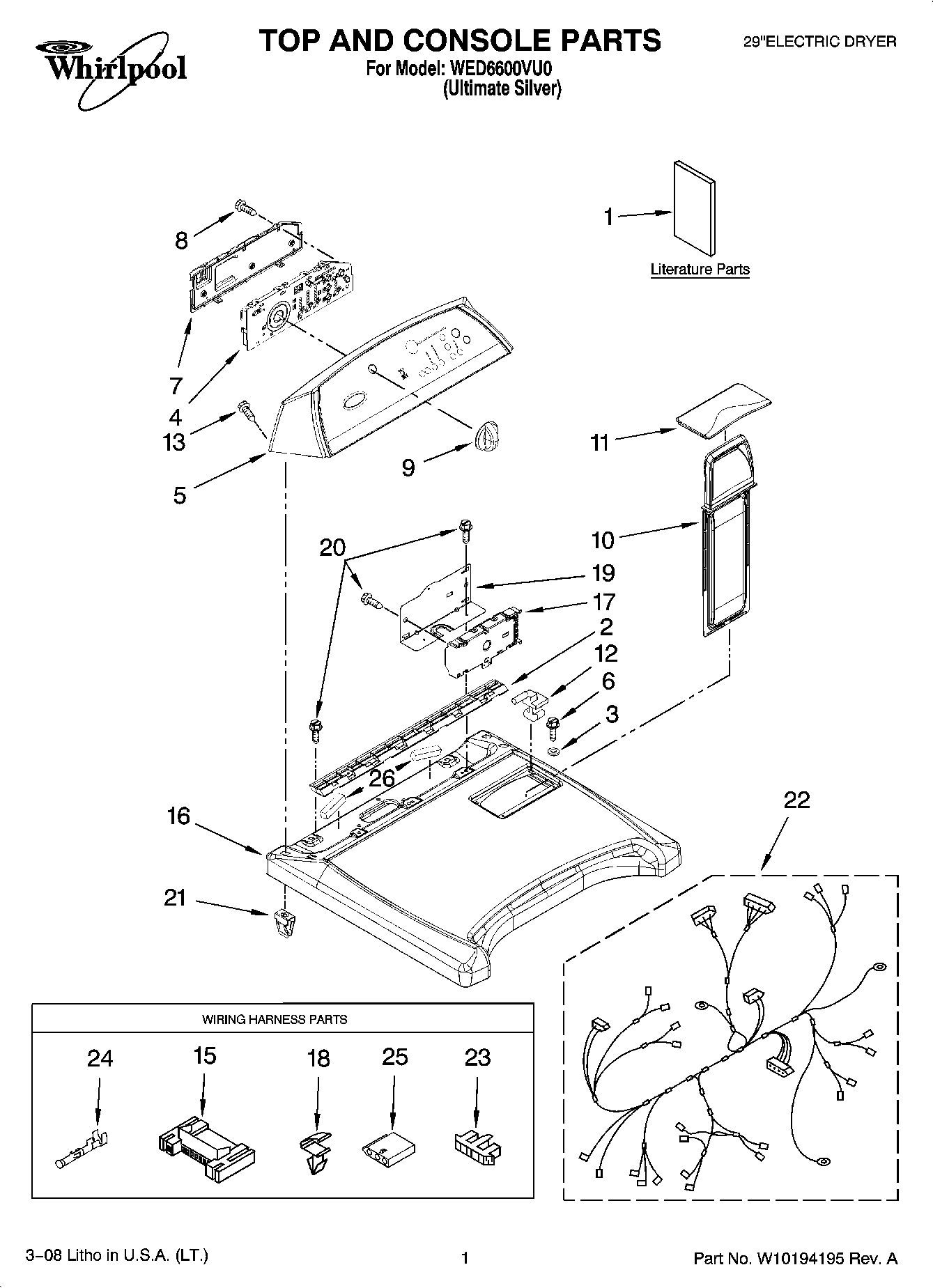

WED6600VU0 01 – TOP AND CONSOLE PARTS

WED6600VU0 01 – TOP AND CONSOLE PARTS

Written by

in

WED6600VU0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1Tech Sheet
1Guide, Quick Start
1Performance Tip Sheet
1Guide, Use & Care
1Installation, Diagnostic Guide
1WPL 677818
1Sheet, Tip Steam Dry
2Bracket, Console
3Washer
4Assembly, User Interface
5Panel, Console
6WP3196557 Whirlpool Screw
78564265 Whirlpool Cover
8WP4449745 Whirlpool Screw
9Knob, Assembly
10WP8572270 Whirlpool Dryer Lint Trap Filter
11Cover, Lint Screen
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W10131402 Whirlpool Screw
153395683 Whirlpool Connector
16TOP
17Control, Electronic
18WP3394427 Whirlpool Clip
19Bracket, Machine Controller
20WP33001882 Whirlpool Screw
21W10112673 Whirlpool Clip
22W10141980 Whirlpool Wire Harness
233936144 Whirlpool Connector
24WP94614 Whirlpool Terminal
25Connector, Timer
26Seal, Foam Console
