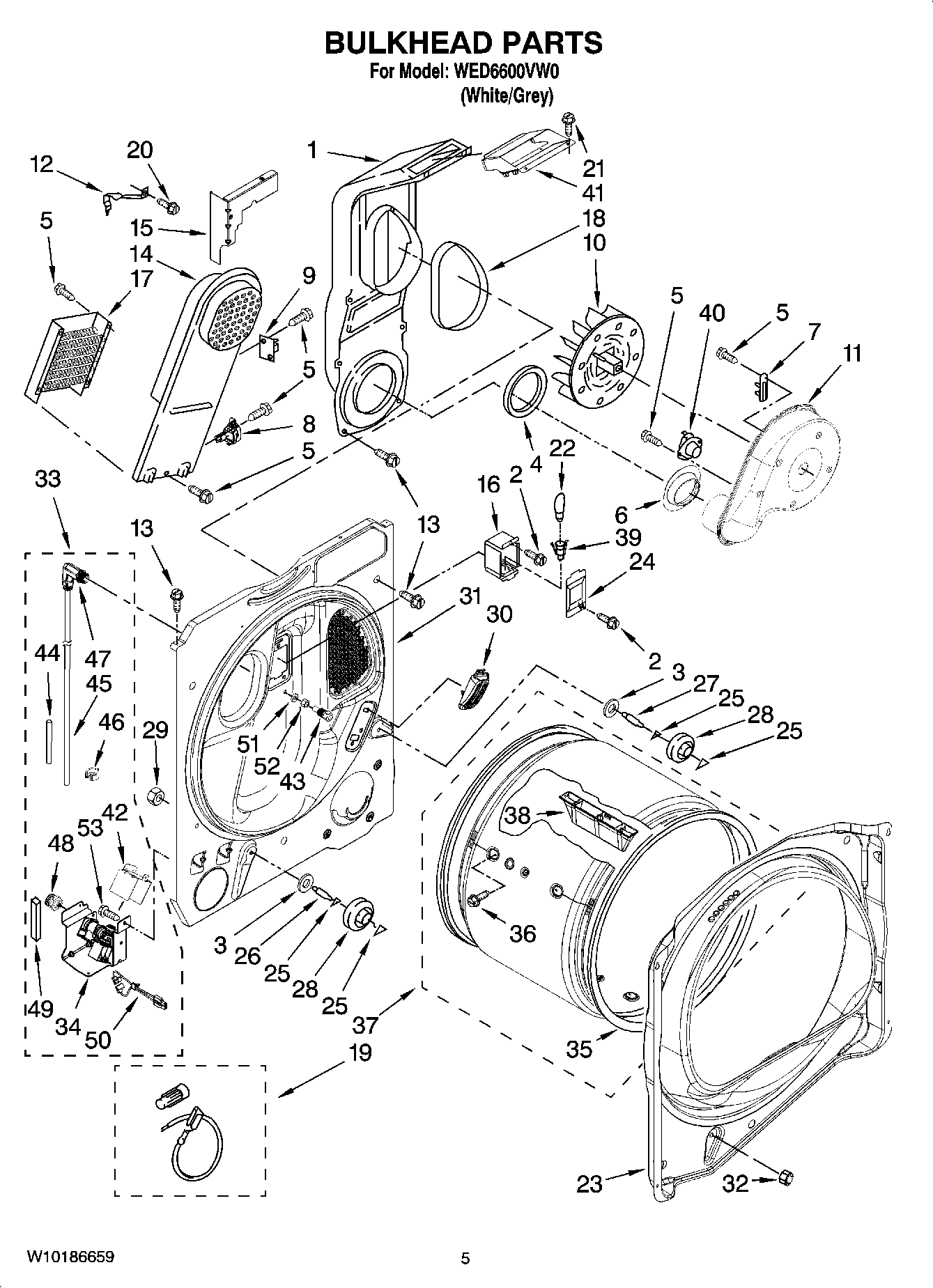

WED6600VW0 03 – BULKHEAD PARTS, OPTIONAL PARTS (NOT INCLUDED)

WED6600VW0 03 – BULKHEAD PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

WED6600VW0 03 – BULKHEAD PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
350930 Whirlpool White Spray Paint
8544761A Whirlpool Exhaust Extension
WPL W10071550
WPL ARI134886A
49611 Whirlpool Exhaust Kit
WPL W10044603
49586 Whirlpool Mixer
4392065 Whirlpool Dryer Maintenance Kit
W11224254 Whirlpool Test Kit
WP16123 Whirlpool Washer
WPL ARI134885A
WP76314 Whirlpool Fill Hose
350938 Whirlpool Spray Gun
72017 Whirlpool Appliance Touch-Up Paint White
W10044609A Whirlpool Steam Dryer Hose Installation Kit
799344 Whirlpool Refrigerator Paint
1Lint Chute Assembly
2WP488729 Whirlpool Refrigerator Door Screw
3W11236646 Whirlpool Washer Assembly
4W11415783 Whirlpool Seal
5WP90767 Whirlpool Screw
6Shield, Exhaust
7WP3392519 Whirlpool Dryer Thermal Fuse
8WP8577891 Whirlpool Dryer High Limit Thermostat
9W10169881 Whirlpool Thermal Cutoff
10WP694089 Whirlpool Dryer Blower Wheel
11WP8577230 Whirlpool Housing
12Clip-Heater Box
13SCREW
14Box, Heater
15Bracket, Lint Chute
163977373 Whirlpool Bracket
17279838 Whirlpool Dryer Heating Element 5400W
18Seal
19279457 Whirlpool Dryer Heating Element Wide Spade Connection
20WP489463 Whirlpool Refrigerator Screw
21WP3196557 Whirlpool Screw
22WP22002263 Whirlpool Dryer 10W Light Bulb
23Bulkhead, Front
24W11226088 Whirlpool Lens Assembly
25WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
26SHAFT
27SHAFT
28WPW10314173 Whirlpool Dryer Drum Support Wheel
29WPW10080190 Whirlpool Nut
30Assembly, Sensor
31Bulkhead, Rear
32WPW10080210 Whirlpool Nut
33Valve & Hose Assembly Complete
34Valve & Bracket Assembly
35SEAL-DOOR
36WPW10109200 Whirlpool Screw
37W10549615 Whirlpool Drum Assembly
388565688 Whirlpool Drum Baffle
39W11222979 Whirlpool Socket
40WP8577274 Whirlpool Dryer Thermistor
41Collar, Lint Chute
42W10160575 Whirlpool Cover Assembly
43WPL W10044629
44Sleeve, Tube
45Hose, Assembly (Not Servicable)
46W10044599 Whirlpool Clip
47Nozzle & Hose Assembly (Includes Items. 45,43,51 & 52)
48W10859554 Whirlpool Coupler
49Foam, Myst Bracket
50Harness, Valve
51W10044579 Whirlpool Washer
52W10044628 Whirlpool Nut
53WP693995 Whirlpool Screw
