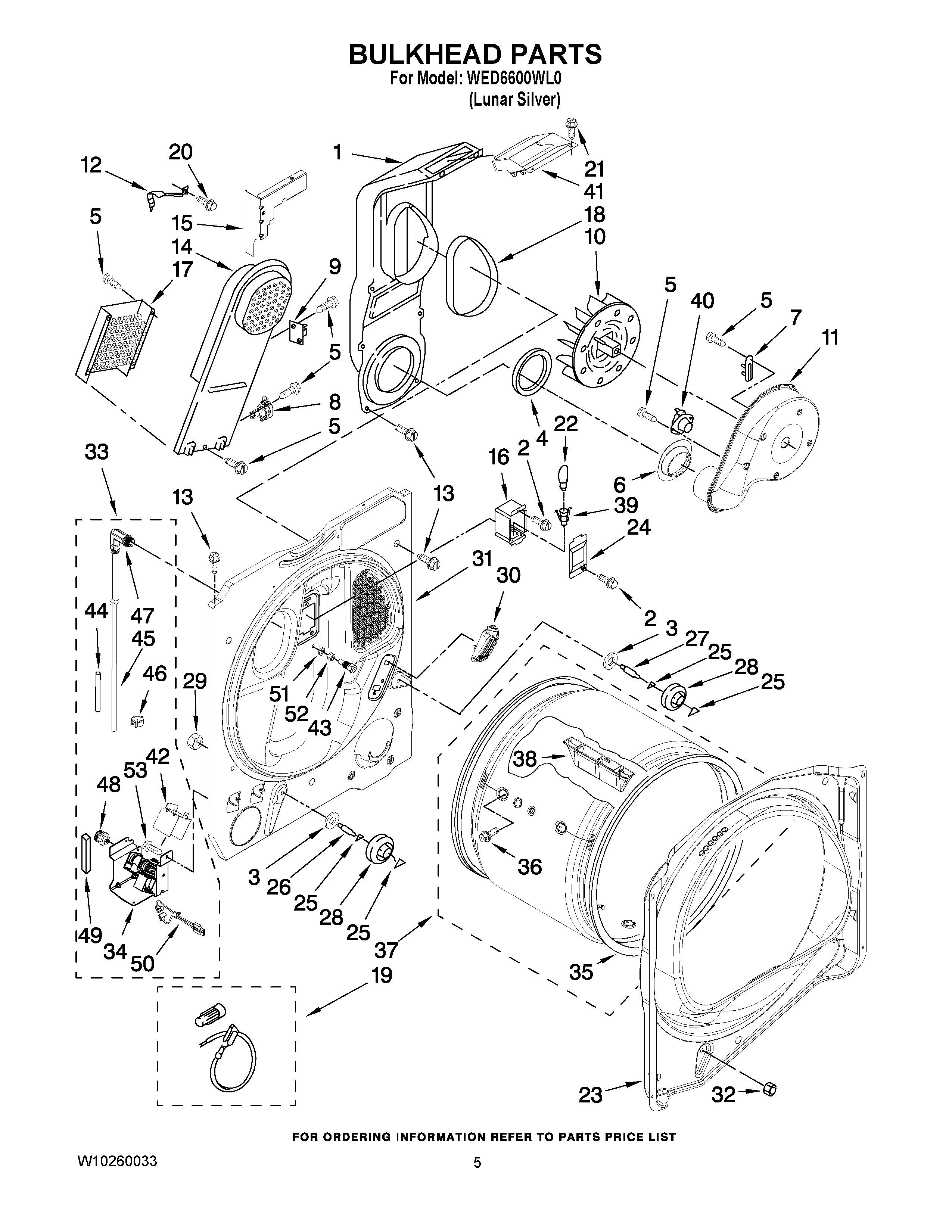

WED6600WL0 03 – BULKHEAD PARTS

WED6600WL0 03 – BULKHEAD PARTS

Written by

in

WED6600WL0 03 – BULKHEAD PARTS

Products

Position	Product
1	Lint Chute Assembly
2	WP488729 Whirlpool Refrigerator Door Screw
3	W11236646 Whirlpool Washer Assembly
4	W11415783 Whirlpool Seal
5	WP90767 Whirlpool Screw
6	Shield, Exhaust
7	WP3392519 Whirlpool Dryer Thermal Fuse
8	WP8577891 Whirlpool Dryer High Limit Thermostat
9	279816 Whirlpool Dryer Thermal Cut-Off Fuse Kit
10	WP694089 Whirlpool Dryer Blower Wheel
11	WP8577230 Whirlpool Housing
12	Clip-Heater Box
13	SCREW
14	Box, Heater
15	Bracket, Lint Chute
16	3977373 Whirlpool Bracket
17	279838 Whirlpool Dryer Heating Element 5400W
18	Seal
19	279457 Whirlpool Dryer Heating Element Wide Spade Connection
20	WP489463 Whirlpool Refrigerator Screw
21	WP3196557 Whirlpool Screw
22	WP22002263 Whirlpool Dryer 10W Light Bulb
23	Bulkhead, Front
24	W11226088 Whirlpool Lens Assembly
25	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
26	SHAFT
27	SHAFT
28	WPW10314173 Whirlpool Dryer Drum Support Wheel
29	WPW10080190 Whirlpool Nut
30	Assembly, Sensor
31	Bulkhead, Rear
32	WPW10080210 Whirlpool Nut
33	Valve & Hose Assembly Complete
34	Valve & Bracket Assembly
35	SEAL-DOOR
36	W10853898 Whirlpool Screw
37	W10549615 Whirlpool Drum Assembly
38	8565688 Whirlpool Drum Baffle
39	W11222979 Whirlpool Socket
40	WP8577274 Whirlpool Dryer Thermistor
41	Collar, Lint Chute
42	W10160575 Whirlpool Cover Assembly
43	WPL W10044629
44	Sleeve, Tube
45	Hose, Assembly (Not Servicable)
46	W10044599 Whirlpool Clip
47	Nozzle & Hose Assembly (Includes Items. 45,43,51 & 52)
48	W10859554 Whirlpool Coupler
49	Foam, Myst Bracket
50	Harness, Valve
51	W10044579 Whirlpool Washer
52	W10044628 Whirlpool Nut
53	WP693995 Whirlpool Screw
