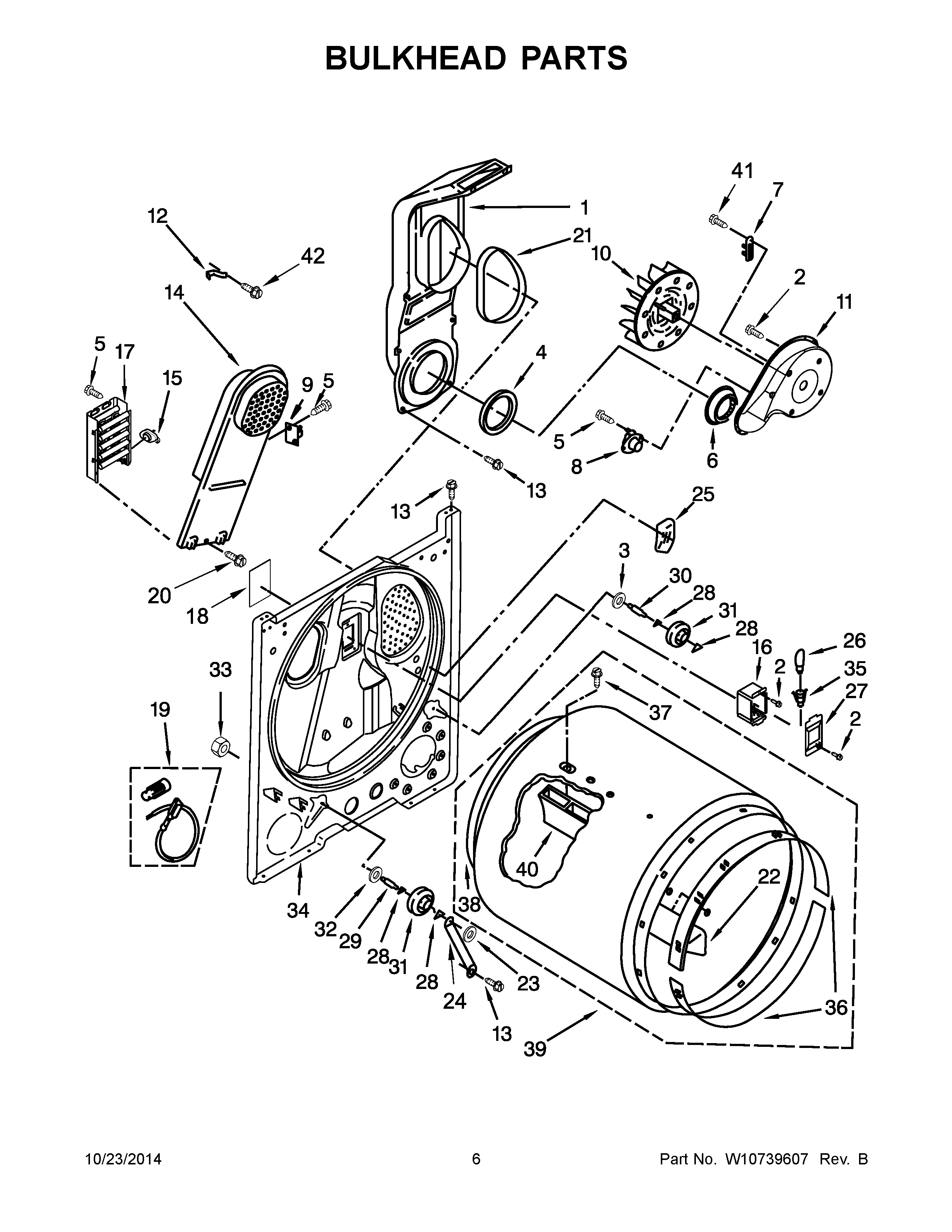

WED7000DW0 04 – BULKHEAD PARTS

WED7000DW0 04 – BULKHEAD PARTS

Written by

in

WED7000DW0 04 – BULKHEAD PARTS

Products

PositionProduct
1W11117429 Whirlpool Chute Assembly
2WP488729 Whirlpool Refrigerator Door Screw
3WP3388703 Whirlpool Washer
4W11415783 Whirlpool Seal
5WP90767 Whirlpool Screw
6W11233063 Whirlpool Shield Assembly
7WP3392519 Whirlpool Dryer Thermal Fuse
8WP8577274 Whirlpool Dryer Thermistor
9279816 Whirlpool Dryer Thermal Cut-Off Fuse Kit
10WP694089 Whirlpool Dryer Blower Wheel
11WP8577230 Whirlpool Housing
12279771 Whirlpool Clip
13SCREW
14WP8541818 Whirlpool Box
15WP3977767 Whirlpoo Dryer High Limit Thermostat
163977373 Whirlpool Bracket
17279838 Whirlpool Dryer Heating Element 5400W
18W11409002 Whirlpool Pad
19279457 Whirlpool Dryer Heating Element Wide Spade Connection
20WP489463 Whirlpool Refrigerator Screw
21SEAL
22WP3403636 Whirlpool Drum Baffle
23WP90296 Whirlpool Clip
24W11684613 Whirlpool Bracket
25W10853313 Whirlpool Sensor
26WP22002263 Whirlpool Dryer 10W Light Bulb
27W11226088 Whirlpool Lens Assembly
28WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
29SHAFT SUPPORT ROLLER DRYER
30SHAFT SUPPORT ROLLER DRYER
31349241T Whirlpool Dryer Drum Support Roller Kit
32WP348197 Whirlpool Washer Assembly
33W11229607 Whirlpool Nut
34W10828905 Whirlpool Bulkhead OS1
35W11222979 Whirlpool Socket
36279441 Whirlpool Front Bearing Ring
37W10853898 Whirlpool Screw
38W10612022 Whirlpool Felt Seal
39W10899578 Whirlpool Dryer Drum Assembly
40BAFFLE-DRM
41WP308685 Whirlpool Microwave Screw
42W11693756 Whirlpool Screw Assembly
