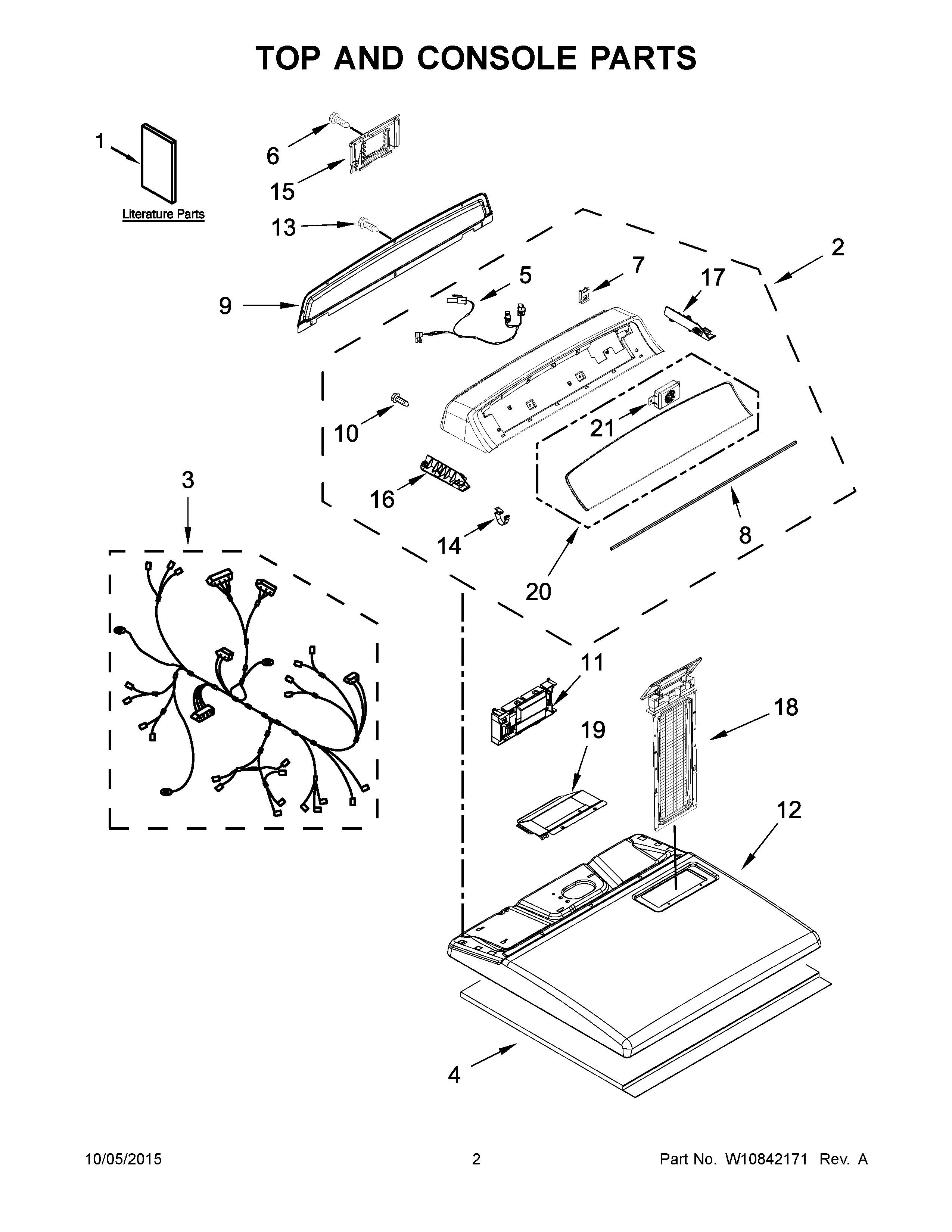

WED7000DW1 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1DQUICKSTART GUIDE
1BTECH SHEET
1AGUIDE, USE AND CARE
1INSTALLATION INSTRUCTIONS
1CWIRING DIAGRAM
2W10914511 Whirlpool Console
3W10706064 Whirlpool Wire Harness
4W10123956 Whirlpool Sound Absorber
5W10634454 Whirlpool Wire Harness User Interface
6WP90767 Whirlpool Screw
7W11213336 Whirlpool Nut
8W11721376 Whirlpool Seal Assembly
9W10775189 Whirlpool Rear Panel
10W10853898 Whirlpool Screw
11WPW10691552-includeCORE Whirlpool WPW10691552 Washer Electronic Control Board + Core
12W11222514 Whirlpool Top Assembly
13WP9740848 Whirlpool Dishwasher Screw
14WP8312709 Whirlpool Endcap Clip
15W10819767 Whirlpool Cover
16W10631630 Whirlpool Bracket Assembly
17W10631629 Whirlpool Bracket
18SCREEN
19W10662472 Whirlpool Cover Assembly
20W10890626 Whirlpool Dishwasher Control Panel
21W11123146 Whirlpool Speaker
