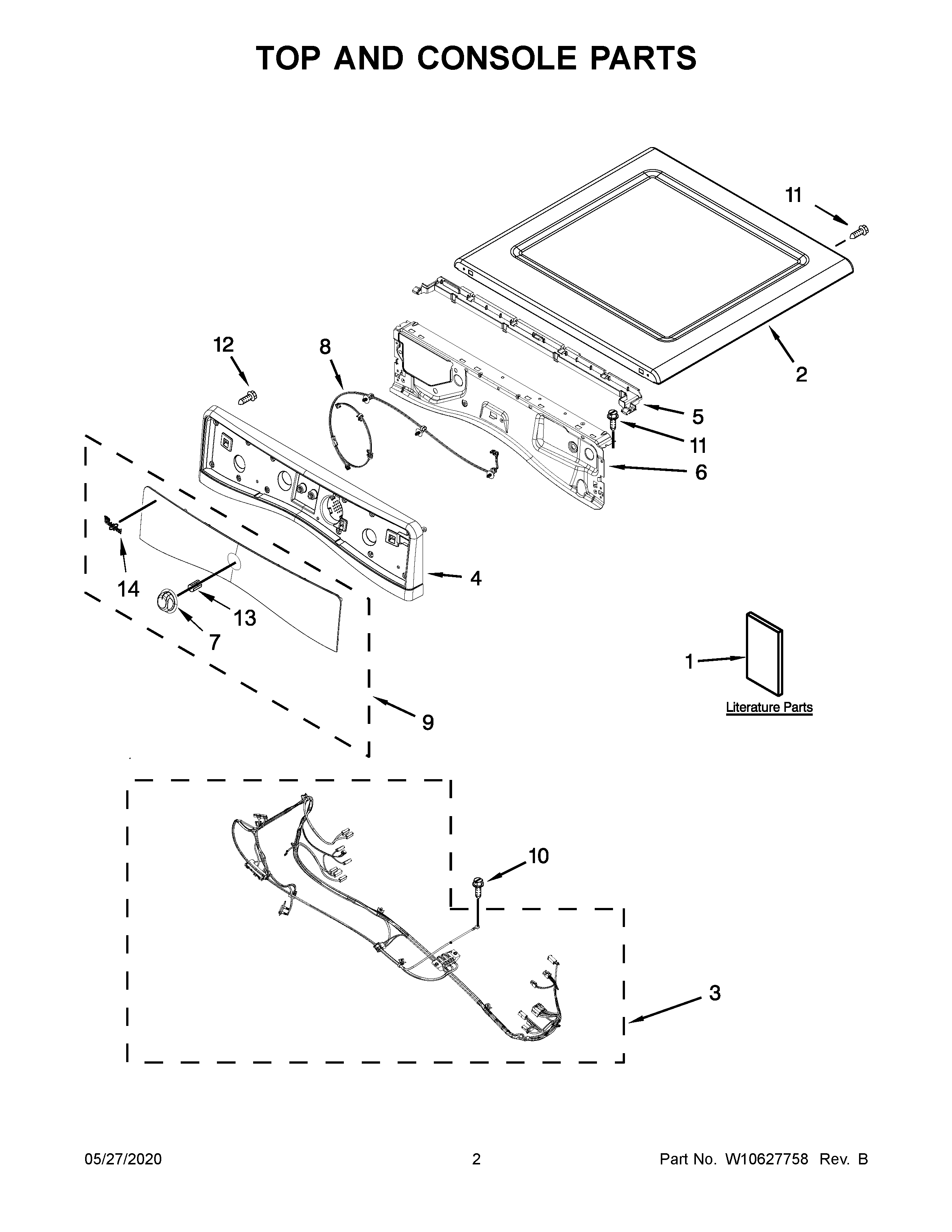

WED71HEBW0 02 – TOP AND CONSOLE PARTS

WED71HEBW0 02 – TOP AND CONSOLE PARTS

Written by

in

WED71HEBW0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1CWIRING DIAGRAM
1BTECH SHEET
1AINSTALLATION INSTRUCTIONS
1USE & CARE GUIDE
2WPW10208383 Whirlpool Top Panel
3HARNESS, WIRING (MAIN)
4WPW10391519 Whirlpool Console
5WPW10653575 Whirlpool Channel
6W11480682 Whirlpool Bracket
7KNOB ASSEMBLY
8W11025125 Whirlpool Wire Harness
9WPW10553790 Whirlpool Control Panel
10WP693995 Whirlpool Screw
11WP488729 Whirlpool Refrigerator Door Screw
12W10489172 Whirlpool Screw
13WP8536939 Whirlpool Spring Clip
14W11178521 Whirlpool Dishwasher Nameplate
