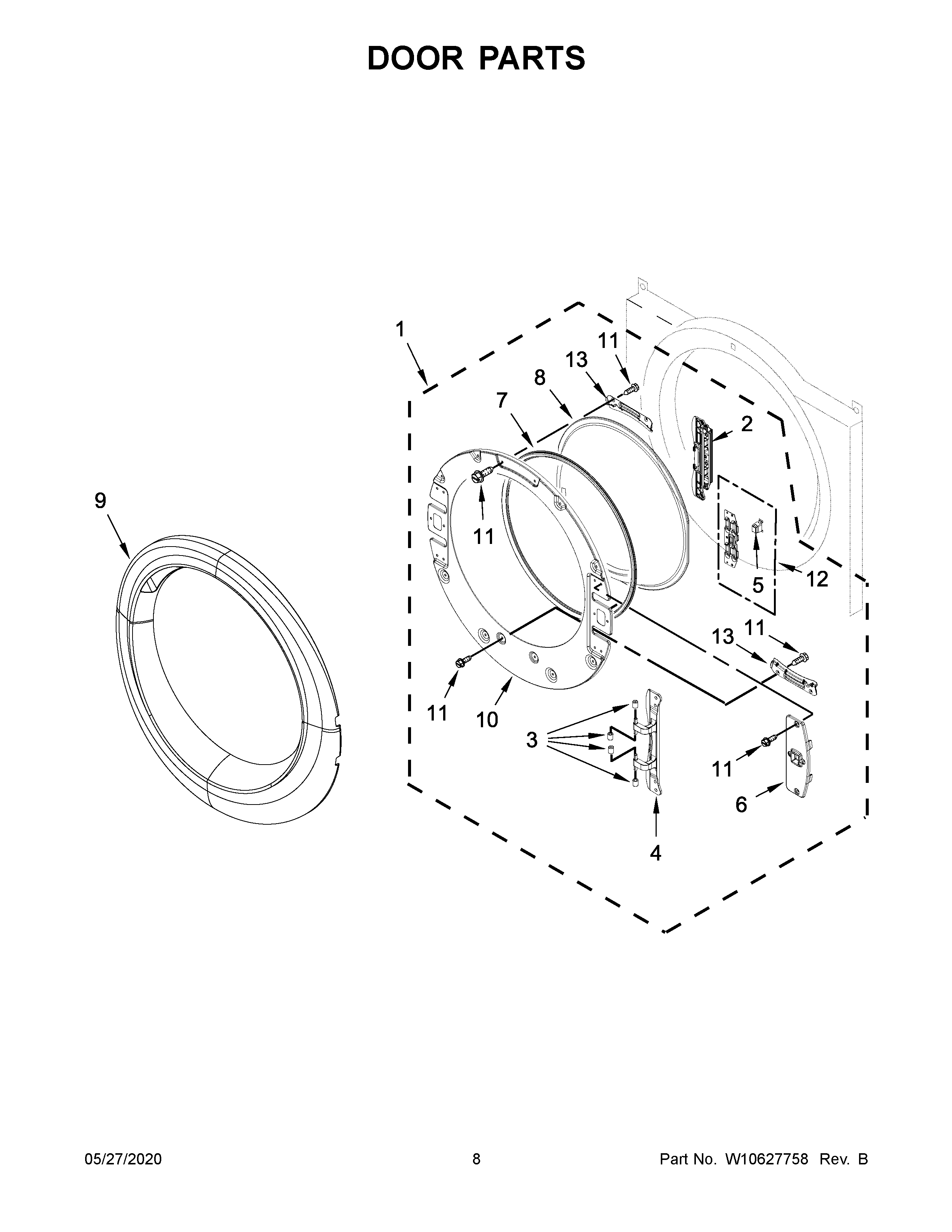

WED71HEBW0 05 – DOOR PARTS

WED71HEBW0 05 – DOOR PARTS

Written by

in

WED71HEBW0 05 – DOOR PARTS

Products

PositionProduct
1W11251345 Whirlpool Door
2HINGE
3WPW10208398 Whirlpool Hinge Pin Cap
4HINGE
5W11240283 Whirlpool Catch Assembly
6W10772469 Whirlpool Door Catch Cover
7W11126230 Whirlpool Seal
8W10823368 Whirlpool Window Assembly
9W10772479 Whirlpool Window
10DOOR, INNER
11SCREW
12WPW10208254 Whirlpool Catch
13W10208252 Whirlpool Retainer
