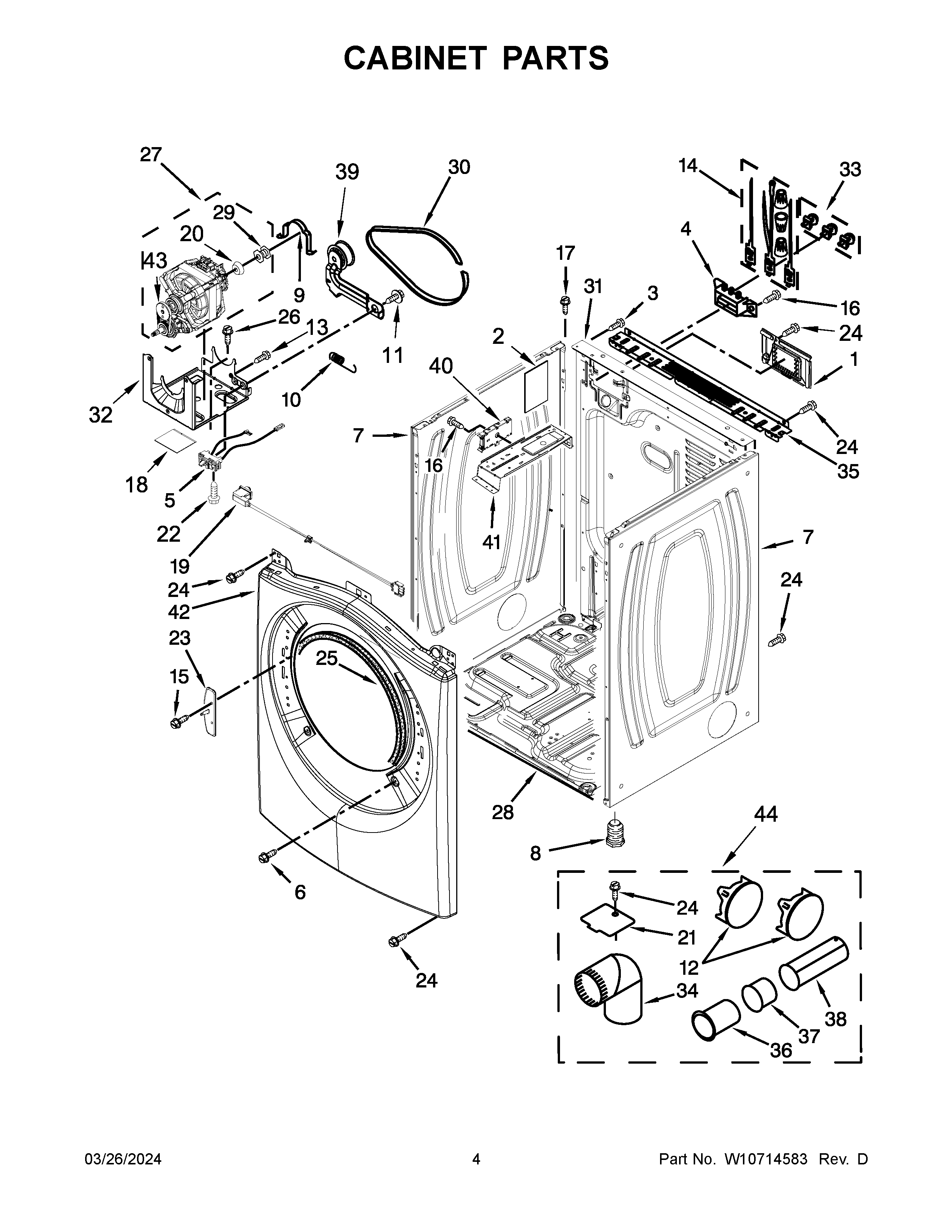

WED71HEDW0 03 – CABINET PARTS

Products

Position	Product
NI	49621 Whirlpool Leveling Feet
1	WPW10316167 Whirlpool Dishwasher Terminal Cover
2	W11409002 Whirlpool Pad
3	W10850756 Whirlpool Screw
4	WP3397659 Whirlpool Terminal Block
5	W11247665 Whirlpool Switch
6	WP308685 Whirlpool Microwave Screw
7	W11233548 Whirlpool Panel
9	CLAMP
10	WPW10446781 Whirlpool Spring
11	8540841 Whirlpool Bolt
12	WPW10404617 Whirlpool Plug Assembly
13	WP3389420 Whirlpool Screw
14	279318 Whirlpool Terminal
15	SCREW
16	WP489463 Whirlpool Refrigerator Screw
18	W11113654 Whirlpool Pad
19	WPW10350906 Whirlpool Door Switch
20	WP3393657 Whirlpool Belt Retainer
21	WPW10354249 Whirlpool Cover
22	WP98129 Whirlpool Screw
23	WPW10208250 Whirlpool Strike
24	WP488729 Whirlpool Refrigerator Door Screw
25	WP3387242 Whirlpool Seal
26	SCREW
27	W11234001 Whirlpool Drive Motor
28	W11215531 Whirlpool Base
29	WP8066184 Whirlpool Dryer Motor Pulley
30	BELT
31	W10487431 Whirlpool Rear Panel
32	W11676491 Whirlpool Base
33	279393 Whirlpool Terminal Block Screw and Nut Kit
34	WPW10416072 Whirlpool Elbow
35	WPW10208382 Whirlpool Dryer Bracket
36	WP8563747 Whirlpool Exhaust Pipe
37	WPW10331278 Whirlpool Exhaust Pipe
38	WP8563749 Whirlpool Exhaust Pipe
39	WPW10344192 Whirlpool Idler Pulley
40	WPW10654005-includeCORE Whirlpool WPW10654005 Refrigerator Electronic Control Board with Core
41	BRACKET, CONTROL
42	WPW10363953 Whirlpool Dishwasher Panel
43	WP3405160 Whirlpool Belt Assembly
44	W10323246 Whirlpool Dryer Vent Kit 4-Way
