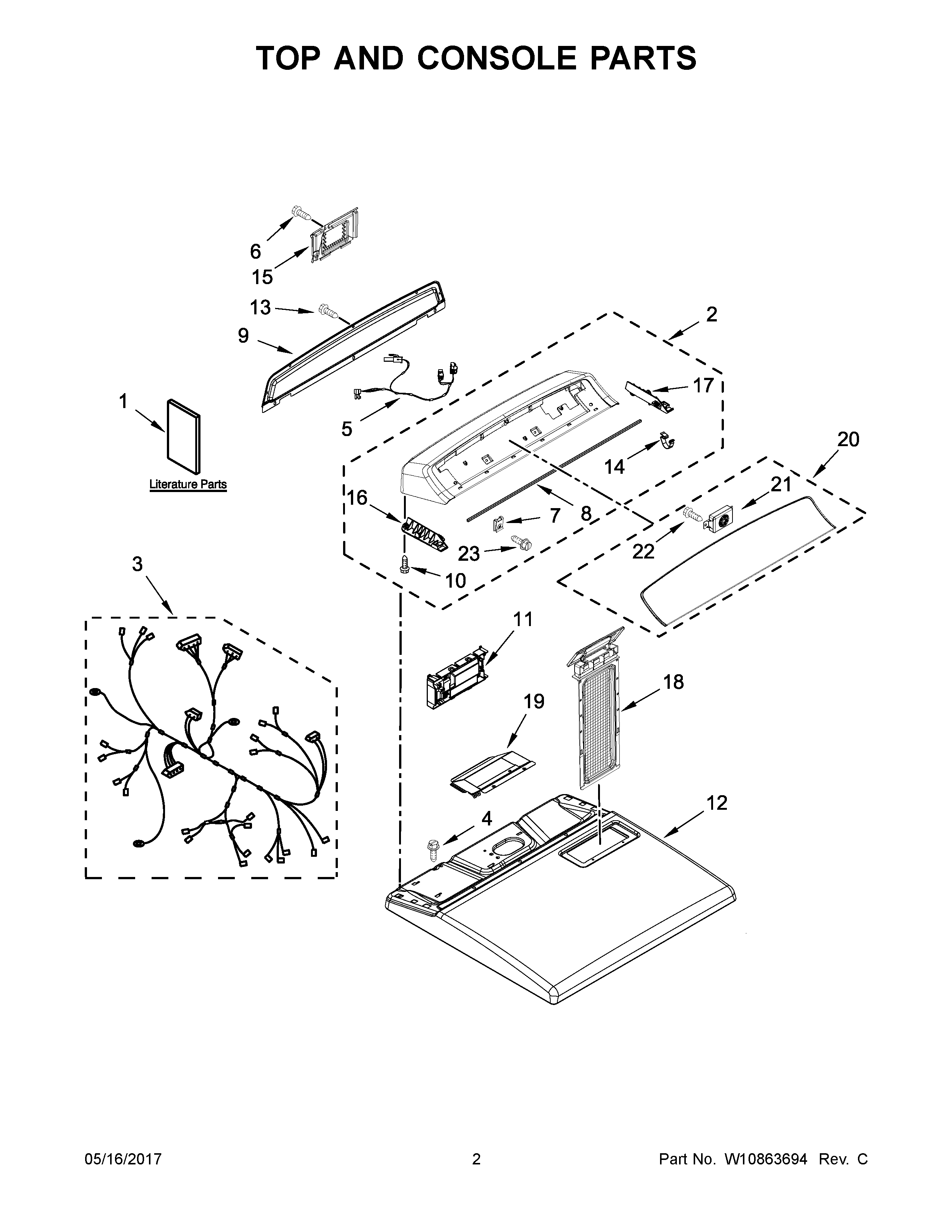

WED7300DC1 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1BTECH SHEET
1INSTALLATION INSTRUCTIONS
1AGUIDE, USE AND CARE
1CQUICKSTART GUIDE
2W11050696 Whirlpool Console
2AW11116871 Whirlpool Console
3W10777422 Whirlpool Wire Harness
4WP9740848 Whirlpool Dishwasher Screw
5W10634454 Whirlpool Wire Harness User Interface
6WP90767 Whirlpool Screw
7W11213336 Whirlpool Nut
8W11721376 Whirlpool Seal Assembly
9W10634729 Whirlpool Rear Panel
10W10853898 Whirlpool Screw
11W10802078 Whirlpool Electronic Control Board + Core
12ATOP (CHROME SHADOW)
12W11222514 Whirlpool Top Assembly
14WP8312709 Whirlpool Endcap Clip
15W11298298 Whirlpool Cover
16W10631629 Whirlpool Bracket
17W10631630 Whirlpool Bracket Assembly
18ALINT SCREEN (CHROME SHADOW)
18SCREEN
19W10662472 Whirlpool Cover Assembly
20ASSEMBLY, FASCIA
21W11123146 Whirlpool Speaker
22WP693995 Whirlpool Screw
23W10728156 Whirlpool Screw
