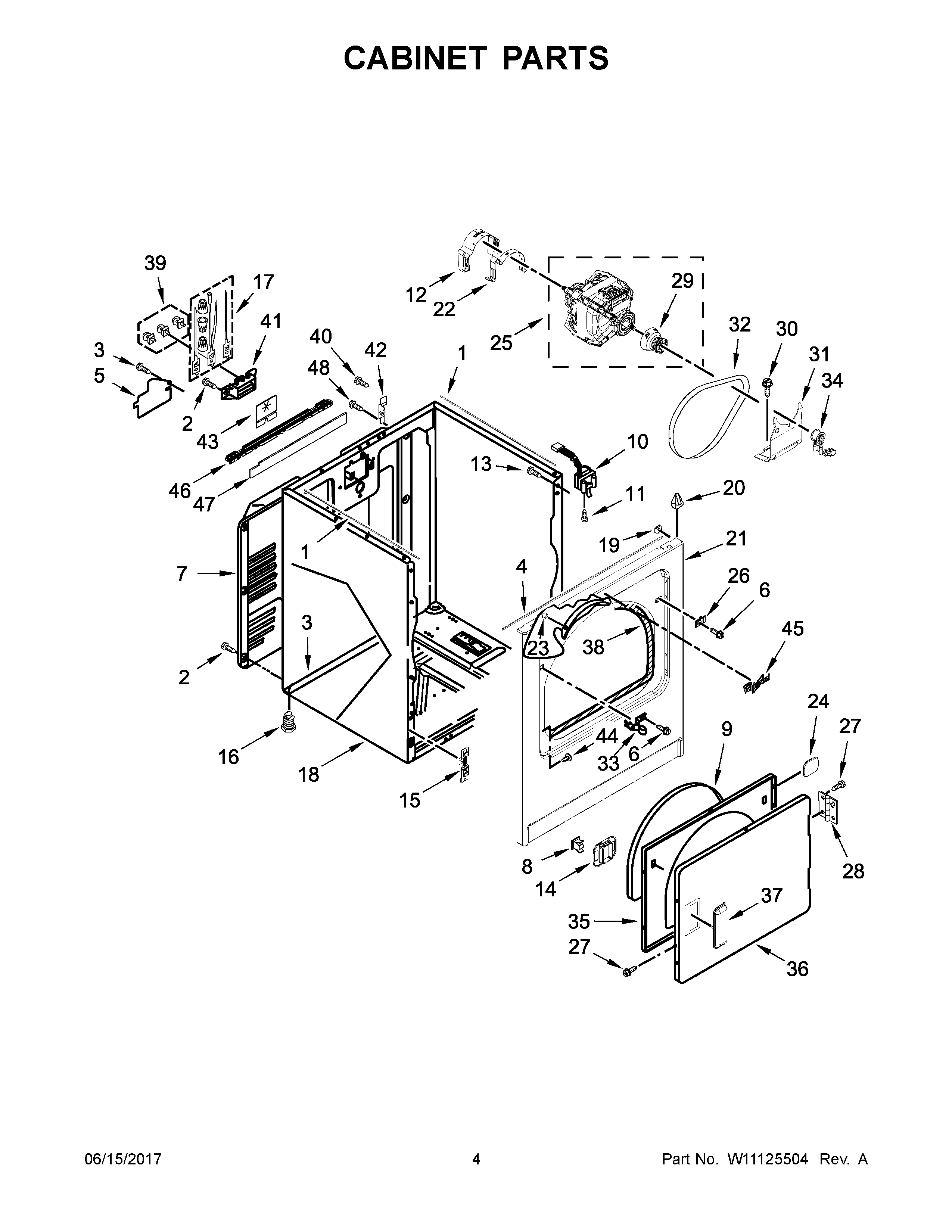

WED7300DC2 03 – CABINET PARTS

WED7300DC2 03 – CABINET PARTS

Products

PositionProduct
NI49621 Whirlpool Leveling Feet
1W11596046 Whirlpool Seal
2WP3390631 Whirlpool Screw
3WPW10157932 Whirlpool Seal Foam
4W10316619 Whirlpool Seal
5W11298298 Whirlpool Cover
6W10850756 Whirlpool Screw
7280043 Whirlpool Rear Panel
8W11429587 Whirlpool Catch Assembly
9SEAL-DOOR DRYER
10WP3406107 Whirlpool Dryer Door Switch
11WP3395530 Whirlpool Screw
12WP3404162 Whirlpool Clamp
13WP308685 Whirlpool Microwave Screw
14WPW10529197 Whirlpool Catch Assembly
15W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
17279318 Whirlpool Terminal
188533643 Whirlpool Dryer White Cabinet
18AW10869013 Whirlpool Cabinet
19WP98234 Whirlpool Nut
20WP8066092 Whirlpool Panel Clip
21APANEL, FRONT (CHROME SHADOW)
21W10806345 Whirlpool Panel
22CLAMP
23279220 Whirlpool Clip
24W11173656 Whirlpool Cover
25279827 Whirlpool Dryer Drive Motor
26W11684591 Whirlpool Dryer Plug
27WP488627 Whirlpool Refrigerator Screw
28WPW10362431 Whirlpool Hinge Assembly
29WP8066184 Whirlpool Dryer Motor Pulley
303400500 Whirlpool Screw
31WP348780 Whirlpool Base
32341241 Whirlpool Dryer Drum Belt
33W11429589 Whirlpool Strike
34WP691366 Whirlpool Dryer Idler Pulley Assembly
35WPW10463967 Whirlpool Door Assembly
36AW10902811 Whirlpool Door Assembly
36W10861224 Whirlpool Door
37W10861225 Whirlpool Dryer White Door Handle
37AW11176266 Whirlpool Handle
38W11035878 Whirlpool Bearing and Seal
39279393 Whirlpool Terminal Block Screw and Nut Kit
40SCREW
41WP3397659 Whirlpool Terminal Block
42W11715722 Whirlpool Hinge
43W11230156 Whirlpool Pad
44APLUG, HOLE
44WP3404413 Whirlpool Plug
45AWPW10393264 Whirlpool Refrigerator Nameplate
45W11178521 Whirlpool Dishwasher Nameplate
46W10641295 Whirlpool Bracket
47W10685675 Whirlpool Seal
48WP90767 Whirlpool Screw
